WesAudio CALYPSO Overview
- 1Description
- 2Integrates with _TITAN Chassis
- 3Works with Standard 500 Series Enclosures
- 4Digital Recall
- 5LCD Screen with Metering
- 6Features at a Glance
An excellent solution for integrating 500 Series modules with ADAT-equipped DAW systems, the WesAudio _CALYPSO is an 8-channel AD/DA converter that fits in two slots of an existing _TITAN chassis or 500 Series enclosure. A proprietary I.A.C. socket offers streamlined connectivity with the _TITAN (available separately), while DB25 analog inputs and outputs are provided for use with standard 500 Series enclosures. Use the ADAT optical I/O to interconnect any audio interface outfitted with corresponding ports.
With its ultralow-jitter clock and support for digital resolutions up to 24-bit / 96 kHz, _CALYPSO is a capable converter for the studio. The front-panel BNC jack can be used as a wordclock input or output, so _CALYPSO can properly sync with other digital gear such as a house clock. The color LCD screen shows channel metering, clip indication, and more. Connect the front-panel mini-USB port to your computer to take advantage of digital recall and device control from your DAW.
Integrates with _TITAN Chassis

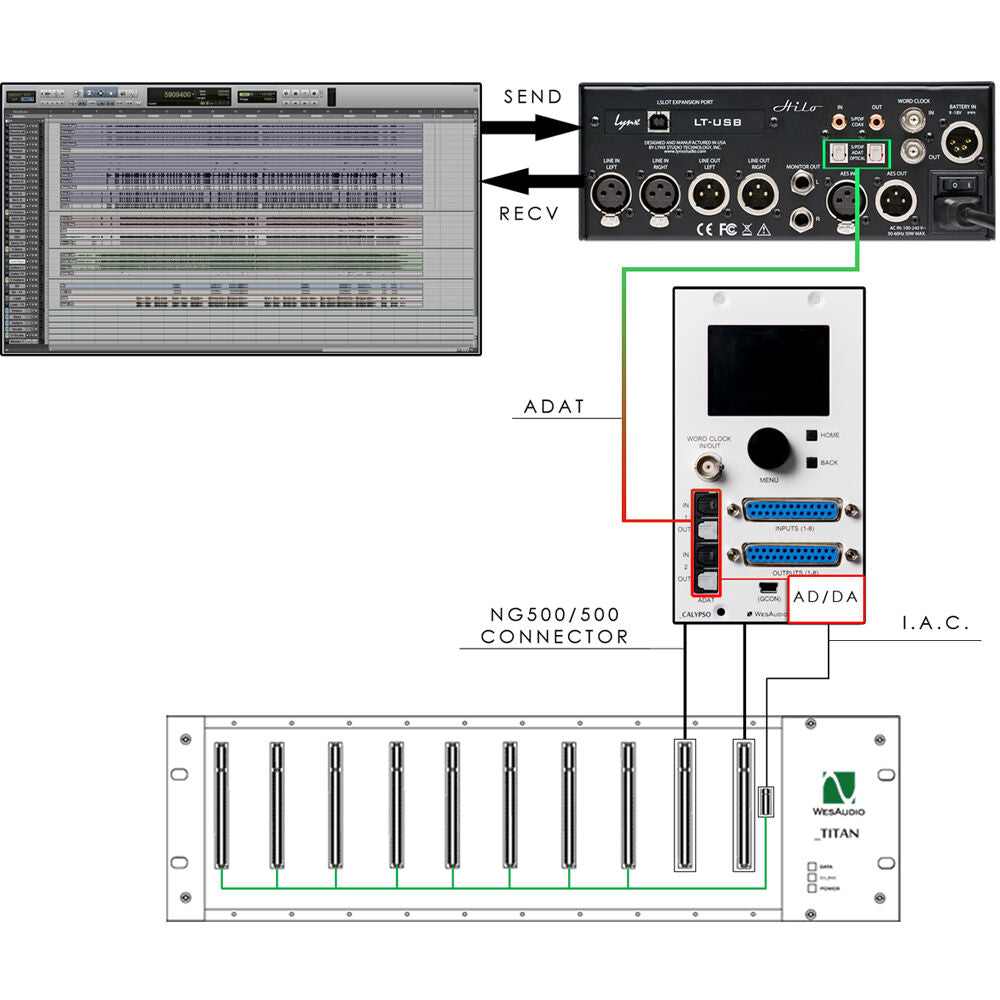

I.A.C. (Internal Audio Connector) is a special socket next to slot number 10 in _TITAN chassis. This connector allows signal routing to and from slots number 1 to 8. _CALYPSO implements this standard via a separate and easy-to-remove PCB, and thus it allows full audio integration with the _TITAN ng500 chassis. In practice it means that there are no additional wires needed to send and receive signal from all modules inside _TTIAN chassis.
Works with Standard 500 Series Enclosures

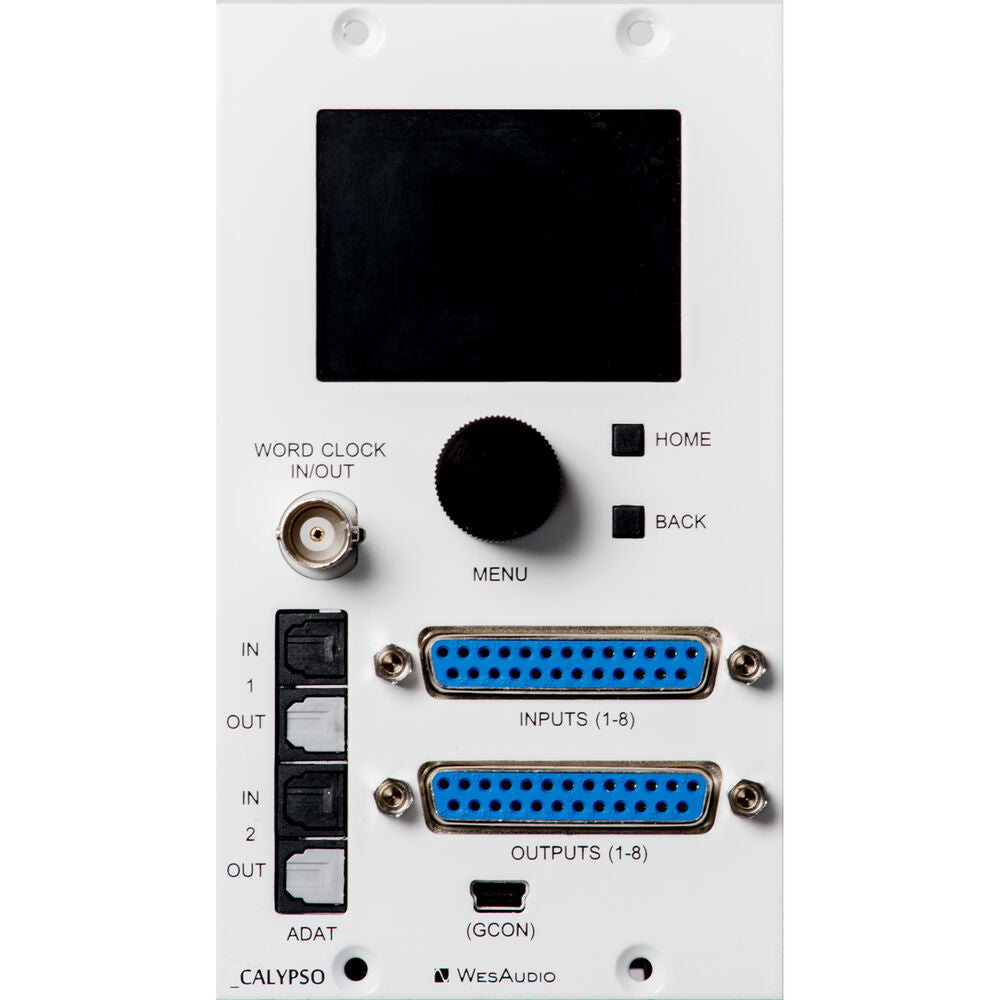

_CALYPSO is designed to work with standard 500 Series enclosures via its two DB25 connectors on the front panel, which can be used to route eight channels of analog audio to and from a 500 Series chassis or analog outboard gear.
Digital Recall
As with all ng500 units, _CALYPSO is integrated with VST2/VST3/AAX/AU plug-ins. While using it with a _TITAN chassis, it allows you to manage the I.A.C. connector for easy input source selection between the rear-panel XLR input socket, or the I.A.C. direct connection to _CALYPSO. This gives you a totally recallable solution to route your signal differently based on the DAW session. The plug-in offers convenient metering, full unit control, I.A.C. recall and management, and sample rate selection based on DAW session.
LCD Screen with Metering

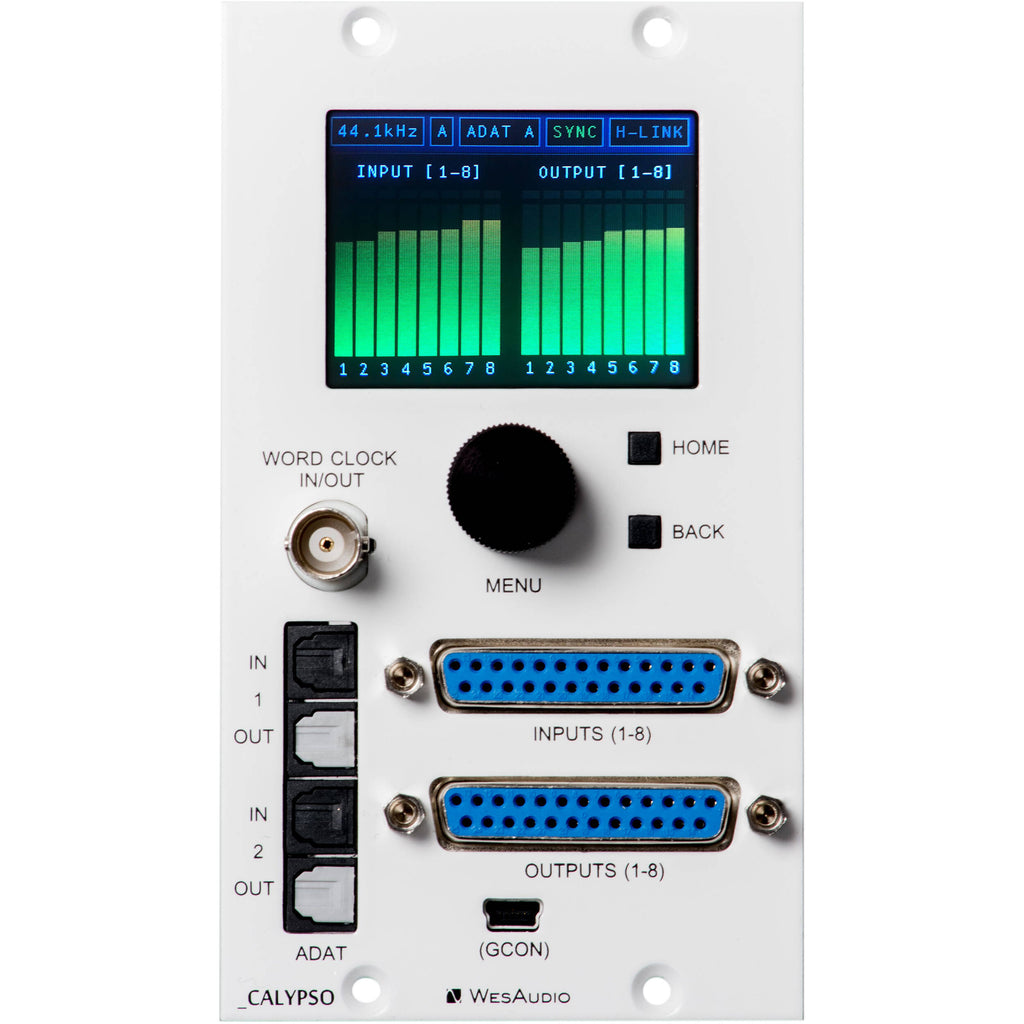

The front-panel LCD screen shows all configuration options for effective device management.
- Channel numbers
- Fast and accurate PPM metering
- Clip indicators
- Currently active sample rate
- Source of sample-rate configuration
- Clock source
- Clock-sync status
- H-LINK (indication if the DAW plug-in is connected to this particular hardware instance)
Features at a Glance
- 24-bit conversion
- Supported sample rates: 44.1, 48, 88.2 (SMUX), 96 kHz (SMUX)
- Ultralow-jitter clock
- BNC word clock input or output
- Full integration with _TITAN via I.A.C. connector (only optical ADAT cables are needed to route all signal to and from chassis)
- Two ADAT inputs and two ADAT outputs
- Two DB25 connectors for integration with any 500 Series chassis
- Selectable +4 dBu or -10 dBV converter reference level (configurable via internal jumpers)
- LCD screen with channel metering
In the Box
- WesAudio _CALYPSO ng500/500 Series AD/DA Converter
- Limited 2-Year Warranty
Not in the Box
- Essential Mounting (Not Included)
Table of Contents
- Description
- Integrates with _TITAN Chassis
- Works with Standard 500 Series Enclosures
- Digital Recall
- LCD Screen with Metering
- Features at a Glance
WesAudio CALYPSO Specs
| Function | AD/DA Converter |
| Slot Size | Double Slot |
| Number of Channels | Analog-to-Digital Conversion: 8 Digital-to-Analog Conversion: 8 |
| Analog I/O | 1 x DB25 Female Balanced 8-Channel Analog Input (Front Panel) 1 x DB25 Female Balanced 8-Channel Analog Output (Front Panel) |
| Digital I/O | 2 x TOSLINK Optical ADAT Inputs (Front Panel) 2 x TOSLINK Optical ADAT Outputs (Front Panel) |
| Word Clock I/O | 1 x BNC Female Word Clock Input or Output (Front Panel) |
| USB | 1 x Mini-USB Port (Front Panel) |
| Other I/O | 1 x I.A.C. Connector for Hookup to WesAudio _TITAN Chassis (Rear Panel) |
| Display | LCD Screen with Metering |
| A/D Conversion | 24-Bit |
| Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz (SMUX), 96 kHz (SMUX) |
| Plug-In Formats | VST2, VST3, AU, AAX, and AAX DSP |
| Input Impedance | 10 Kilohms |
| Output Impedance | 100 Ohms |
| Maximum Input Level | +4 dBu at -10 dBV Gain Setting +20 dBu at +4 dBu Gain Setting |
| Maximum Output Level | +4 dBu at -10 dBV Gain Setting +20 dBu at +4 dBu Gain Setting |
| Frequency Response | 20 Hz to 20 kHz (±0.1 dB) |
| THD + N | Inputs (ADC): -108 dB / 0.0004% (Unweighted) Outputs (DAC): -105 dB / 0.0005% (Unweighted) |
| Dynamic Range | Inputs (ADC): 116 dB (Unweighted) Outputs (DAC): 115 dB (Unweighted) |
| Reference Level | +4 dBu or -10 dBV |
| Power Consumption | 150 mA per Rail |
| Dimensions | 3 x 5.2 x 6.2" / 7.6 x 13.3 x 15.8 cm |
| Weight | Not Specified by Manufacturer |
