Description

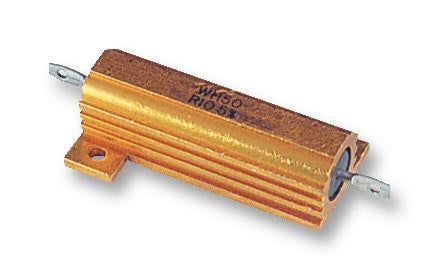

The WH50-24RJI is a Wirewound Resistor with cap and lead assemblies are fitted to a high purity ceramic substrate. The resistive element is wound onto the substrate and welded to the caps. The wound rod is then molded and fitted into aluminum housing to give optimum stability and reliability. The resistor is legend marked with type reference, resistance value and tolerance which will withstand all accepted industrial cleaning fluids.
- All welded construction
- Suitable for severe environments
- Designed for excellent thermal conductivity to heat sink
Applications
Industrial
Product details
| Temperature Coefficient | � 50ppm/�C |
| Power Rating | 50W |
| Resistor Element Material | Wirewound |
| Resistance | 24ohm |
| Resistance Tolerance | � 5% |
| Product Range | WH Series |
| Resistor Terminals | Axial Leaded |
| Voltage Rating | 1.25kV |
Other details
| Brand | WELWYN |
| Part Number | WH50-24RJI |
| Quantity | Each |
| Technical Data Sheet EN |  |
