Description

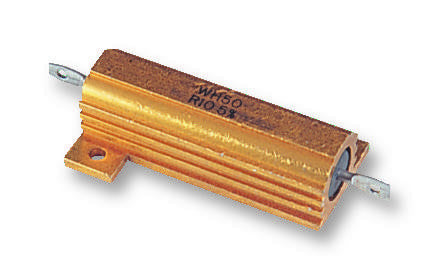

The WH50-10RJI is an Aluminium housed axial leaded Wire Wound Resistor with high power dissipation up to 300W and all welded construction. Designed for excellent thermal conductivity to heatsink, Power rating of 50W and temperature coefficient �50ppm/�C. Cap and lead assemblies are fitted to a high purity ceramic substrate. The resistive element is wound onto the substrate and welded to the caps. The wound rod is then moulded and fitted into Aluminium housing to give optimum stability and reliability.
- All welded construction
- Spade terminal option
Applications
Industrial
Product details
| Temperature Coefficient | � 50ppm/�C |
| Power Rating | 50W |
| Resistor Element Material | Wirewound |
| Resistance | 10ohm |
| Resistance Tolerance | � 5% |
| Product Range | WH Series |
| Resistor Terminals | Axial Leaded |
| Voltage Rating | 1.25kV |
Other details
| Brand | WELWYN |
| Part Number | WH50-10RJI |
| Quantity | Each |
| Technical Data Sheet EN |  |
