Description

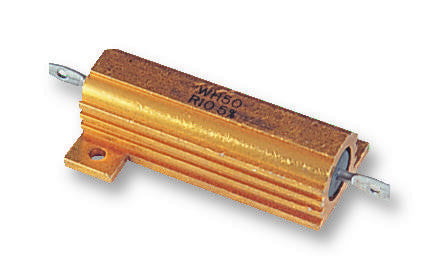

The WH50-100RJI is a 100R 50W through-hole mounting Wirewound Resistor with a cap and lead assemblies are fitted to a high purity ceramic substrate. The resistive element is wound onto the substrate and welded to the caps. The wound rod is then moulded and fitted into aluminium housing to give optimum stability and reliability. The resistor is legend marked with type reference, resistance value and tolerance which will withstand all accepted industrial cleaning fluids and values are marked in accordance with IEC 62.
- All welded construction
Applications
Industrial
Product details
| Temperature Coefficient | ± 25ppm/°C |
| Power Rating | 50W |
| Resistor Element Material | Wirewound |
| Resistance | 100ohm |
| Resistance Tolerance | ± 5% |
| Product Range | WH Series |
| Resistor Terminals | Axial Leaded |
| Voltage Rating | 1.25kV |
Other details
| Brand | WELWYN |
| Part Number | WH50-100RJI |
| Quantity | Each |
| Technical Data Sheet EN |  |
