| ₹ 167.12 includes GST and import duties. | |
| B2B customers can avail ₹ 25.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

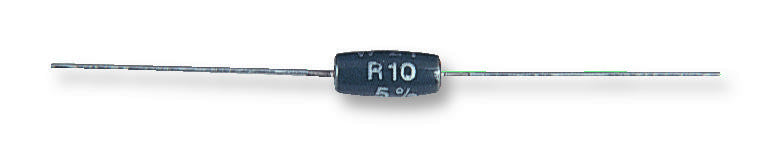

The Welwyn W21 series wirewound resistors are highly stable and reliable resistors offering high power and resistance in a small size. The Resistance range includes E24 decade values from 1ohm to 10 ohm. W21 series are suitable for use in harsh environments and Ideal for protection circuits. A high purity ceramic substrate is assembled with interference fit end caps to which are welded the termination wires. The resistive element is wound on substrate and welded to caps.
- Power rating at 25°C is 3W
- ±1%, ±2% and ±5% tolerance
- Operating temperature range -55°C to 200°C
- Temperature coefficient is <±75ppm/°C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Temperature Coefficient | ± 75ppm/°C |
| Power Rating | 3W |
| Resistor Element Material | Wirewound |
| Automotive Qualification Standard | - |
| Resistance | 18ohm |
| Resistance Tolerance | ± 5% |
| Product Range | W21 Series |
| Resistor Case Style | Axial Leaded |
| Voltage Rating | 100V |
Other details
| Brand | WELWYN |
| Part Number | W21-18RJI |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 163.78 |
| 3-5 | ₹ 162.11 |
| 5-10 | ₹ 158.76 |
| 10+ | ₹ 155.42 |
Bulk discount will be automatically applied during checkout based on quantity.
