| ₹ 112.27 includes GST and import duties. | |
| B2B customers can avail ₹ 17.12 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

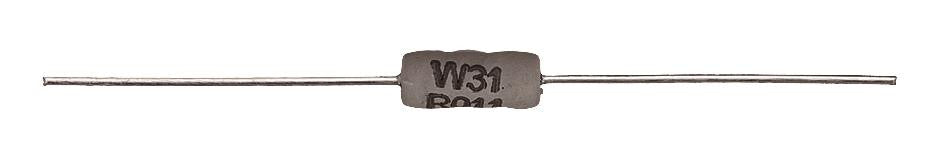

The Welwyn ULW3 series are axial leaded UL recognised wirewound resistors. Resistance range includes E24 decade values from 4.7ohm to 100 ohm.
- Isolation voltage of 350V
- Power rating at 25�C is 3W
- Available in 5% tolerance
- Temperature coefficient of resistance �200ppm/�C
- Operating temperature range -55�C to +155�C
- UL1412 recognised fusible resistor
- Failsafe mains fusing at 120 / 240Vrms
- Inrush and surge withstanding
Applications
Consumer Electronics, Portable Devices, Power Management, Industrial
Product details
| Temperature Coefficient | � 200ppm/�C |
| Power Rating | 3W |
| Resistor Element Material | Wirewound |
| Automotive Qualification Standard | - |
| Resistance | 100ohm |
| Resistance Tolerance | � 5% |
| Product Range | ULW Series |
| Resistor Case Style | Axial Leaded |
| Voltage Rating | 350V |
Other details
| Brand | WELWYN |
| Part Number | ULW3-100RJA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 110.02 |
| 3-5 | ₹ 108.9 |
| 5-10 | ₹ 106.66 |
| 10+ | ₹ 104.41 |
Bulk discount will be automatically applied during checkout based on quantity.
