Description

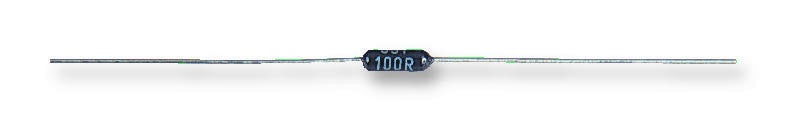

The RC55Y-10KBI is a precision Metal Film Resistor with low TCRs over a wide resistance range, low noise and negligible voltage coefficient. A metal film is deposited onto a high quality ceramic former. Nickel-plated steel caps are force fitted to the former and termination wires are welded to the caps. The resistor is adjusted to value by a helical cut in the film and the body is protected with a specially formulated epoxy coating.
- Lead Bearing Wire Finish
- Solder Coated Copper Wire Termination
- 110�C/W Thermal Impedance
- -55 to +155�C Ambient Temperature Range
- 7.2 x 2.5mm Size
Applications
Industrial
Product details
| Temperature Coefficient | � 15ppm/�C |
| Power Rating | 250mW |
| Resistor Element Material | Metal Film |
| Automotive Qualification Standard | - |
| Resistance | 10kohm |
| Resistance Tolerance | � 0.1% |
| Product Range | RC Series |
| Resistor Case Style | Axial Leaded |
| Voltage Rating | 350V |
Other details
| Brand | WELWYN |
| Part Number | RC55Y-10KBI |
| Quantity | Each |
| Technical Data Sheet EN |  |
