Description

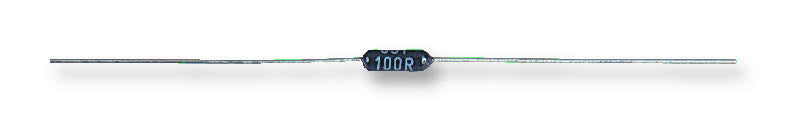

The RC55Y-100KBI is a precision Metal Film Resistor with solder-coated copper wire. A metal film is deposited onto a high quality ceramic former. Nickel-plated steel caps are force fitted to the former and termination wires are welded to the caps. The resistor is adjusted to value by a helical cut in the film and the body is protected with a specially formulated epoxy coating.
- CECC released products with low
- TCRs over a wide resistance range
- 0.05% Resistance tolerance down
- Express delivery available
- Low noise and negligible voltage coefficient
- Screened parts available for critical applications
- 5ppm/�C Temperature coefficient of resistance down
- Options for RoHS compliant and lead bearing wire finishes
Applications
Industrial
Product details
| Temperature Coefficient | � 15ppm/�C |
| Power Rating | 250mW |
| Resistor Element Material | Metal Film |
| Automotive Qualification Standard | - |
| Resistance | 100kohm |
| Resistance Tolerance | � 0.1% |
| Product Range | RC Series |
| Resistor Case Style | Axial Leaded |
| Voltage Rating | 350V |
Other details
| Brand | WELWYN |
| Part Number | RC55Y-100KBI |
| Quantity | Each |
| Technical Data Sheet EN |  |
