Description

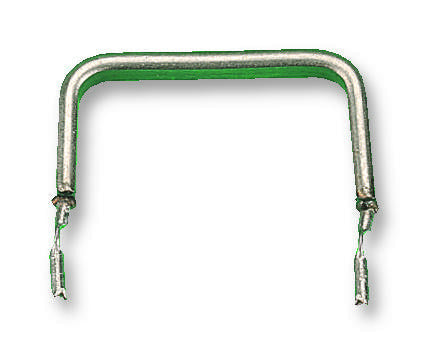

The WELWYN OAR-1 series are through hole, metal element current sensing resistors with 1W power rating. These OAR (Open Air resistor) series have low Resistance ranges from 3mohm to 100mohm.
- ±1%, ±2% and ±5% tolerance
- Temperature coefficient is resistance (TCR) is ±20ppm/°C
- Superior surge performance
- Hot spot isolated from PCB material
- Endurance is 1000h at 25°C
- Operating temperature range -40°C to +125°C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Temperature Coefficient | ± 20ppm/°C |
| Power Rating | 1W |
| Resistor Element Material | Metal Strip |
| Automotive Qualification Standard | - |
| Resistance | 0.05ohm |
| Resistance Tolerance | ± 1% |
| Product Range | OAR Series |
| Resistor Case Style | Radial Leaded |
Other details
| Brand | WELWYN |
| Part Number | OAR1 - R050FI |
| Quantity | Each |
| Technical Data Sheet EN |  |
