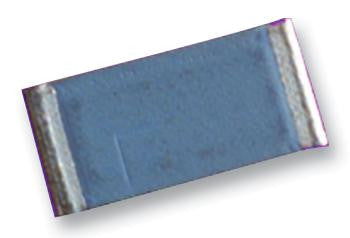

![WELWYN HVC2512-10MFT18 SMD Chip Resistor, Thick Film, 10 Mohm, 3 kV, 2512 [6432 Metric], 1 W, ± 1%, HVC Series](http://www.tanotis.com/cdn/shop/products/150619907-40_5def4ea2-c814-4fef-a72a-bbd2282b42ee_{width}x.jpg?v=1575992987)
![WELWYN HVC2512-10MFT18 SMD Chip Resistor, Thick Film, 10 Mohm, 3 kV, 2512 [6432 Metric], 1 W, ± 1%, HVC Series](http://www.tanotis.com/cdn/shop/products/150619907-40_5def4ea2-c814-4fef-a72a-bbd2282b42ee_1024x.jpg?v=1575992987)
| ₹ 318.77 includes GST and import duties. | |
| B2B customers can avail ₹ 48.61 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The HVC2512-10MFT18 is a 10MR 1W surface-mounting high voltage Chip Resistor with 2512 case. Resistive thick film material, over-glaze and organic protection are screen printed on a 96% alumina substrate. The design and laser adjustment of the resistive element optimizes the limiting element voltage of the resistor. The chip is supplied with wrap-around terminations suitable for soldering. The terminations have an electro-plated nickel barrier and tin finish. This ensures excellent leach resistance properties and solderability.
- Values up to 100M
- Robust thick lm construction
- Zero at 155°C derating from rated power at 70°C
Applications
Industrial, Automotive
Product details
| Resistance | 10Mohm |
| Resistor Case Style | 2512 [6432 Metric] |
| Voltage Rating | 3kV |
| Resistor Element Material | Thick Film |
| Resistance Tolerance | ± 1% |
| Product Range | HVC Series |
| Automotive Qualification Standard | AEC-Q200 |
| Temperature Coefficient | ± 100ppm/°C |
| Power Rating | 1W |
| Packaging | Cut Tape |
Other details
| Brand | WELWYN |
| Part Number | HVC2512-10MFT18 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 312.39 |
| 3-5 | ₹ 309.21 |
| 5-10 | ₹ 302.83 |
| 10+ | ₹ 296.46 |
Bulk discount will be automatically applied during checkout based on quantity.
