₹ 576.41 includes GST and import duties. | |
B2B customers can avail ₹ 87.9 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description

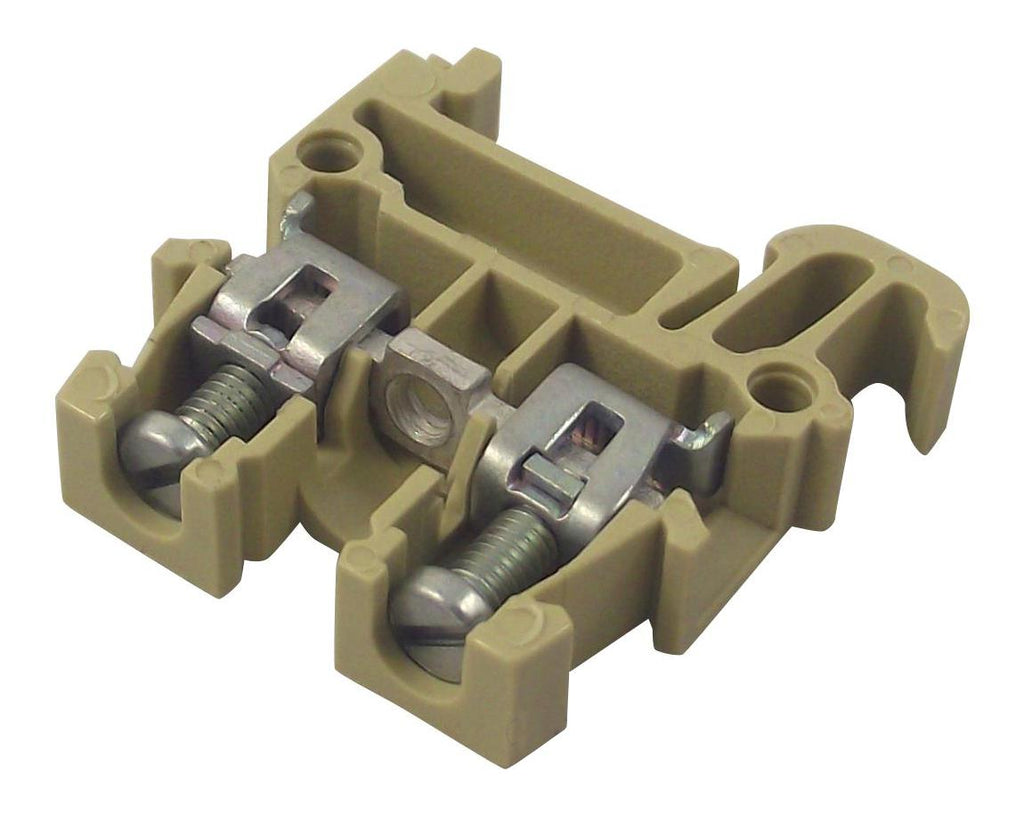

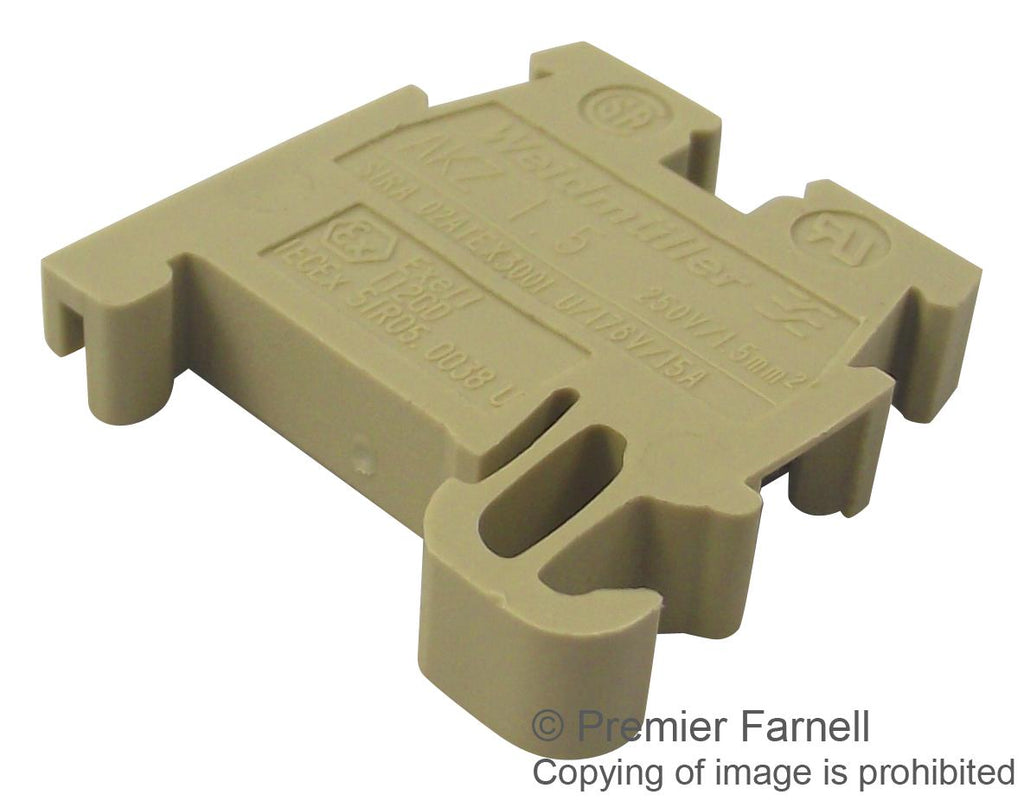

The AKZ 1.5 is a 2-position 1-contact feed-through Terminal Block with PA 66 (polyamide 66) construction and beige/yellow colour. Screw connection for screwable cross-connection, one end without connector TS15 mounting rail clamped type mounting. Right open side, 1.5mm² conductor cross-section, on-side connection direction, M2.5 clamping screw, A1 gauge and 24 to 14AWG wire size.
- UL94V2 Flammability rating
- 4kV Rated surge voltage
- 1.83mR Volume resistance
- 0.5 to 0.75Nm Torque
Industrial
Other details
Brand | WEIDMULLER |
Part Number | AKZ 1.5 |
Quantity | Each |
Technical Data Sheet EN | |
3D Product Image EN |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 564.88 |
3-5 | ₹ 559.12 |
5-10 | ₹ 547.59 |
10+ | ₹ 536.06 |
Bulk discount will be automatically applied during checkout based on quantity.
