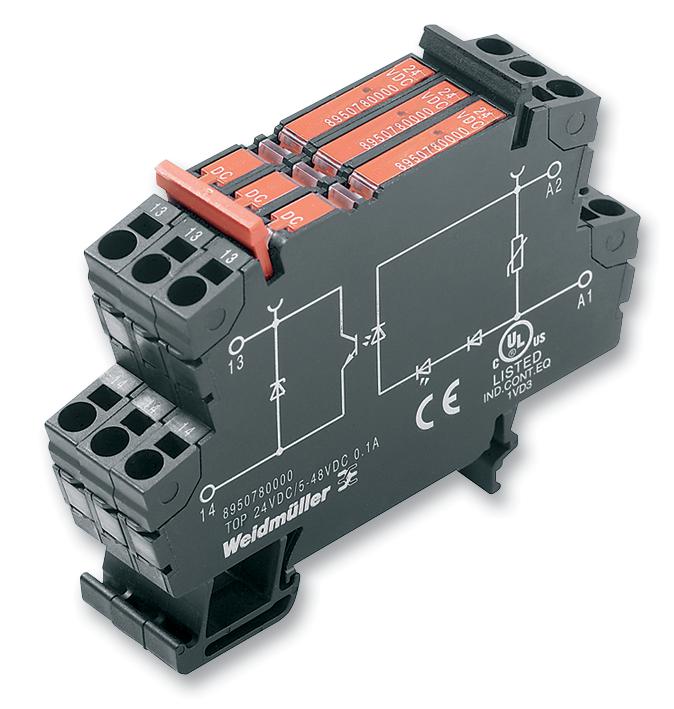

The 8950960000 is a Transistor Solid State Relay with push-in spring terminals. This TERMOPTO DIN-rail mount relay features varistor reverse polarity protection diode and integrated free-wheel diode. The opto module in which electrical isolation and signal conditioning without switching amplification is sufficient. The compact design in terminal-block format saves space on the rail and offers a pluggable cross-connection. The integrated protective circuit ensures sufficient protection in applications with resistive as well as slightly inductive and capacitive loads. For purely inductive, capacitive or comparable loads with high switch-on and switch-off peaks, such as solenoid valves or filament lamps, ensure that the module is dimensioned appropriate or an additional safeguard is used.
- Green LED status display on control side
- 2.5mm² Maximum clamping range
- <40mW Power rating
- <=2VDC Dropout voltage
- -20 to 60°C Ambient operating temperature range
Applications
Industrial
Product details
| Contact Configuration |
- |
| Load Current |
500mA |
| Operating Voltage Max |
48VDC |
| Relay Mounting |
DIN Rail |
| Relay Terminals |
Spring |
| Switching Mode |
- |
| Operating Voltage Min |
5VDC |
| Control Voltage Min |
5VDC |
| Control Voltage Max |
48VDC |
| Product Range |
- |
Other details
| Brand |
WEIDMULLER |
| Part Number |
8950960000 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| 3D Product Image EN |
|
