Description

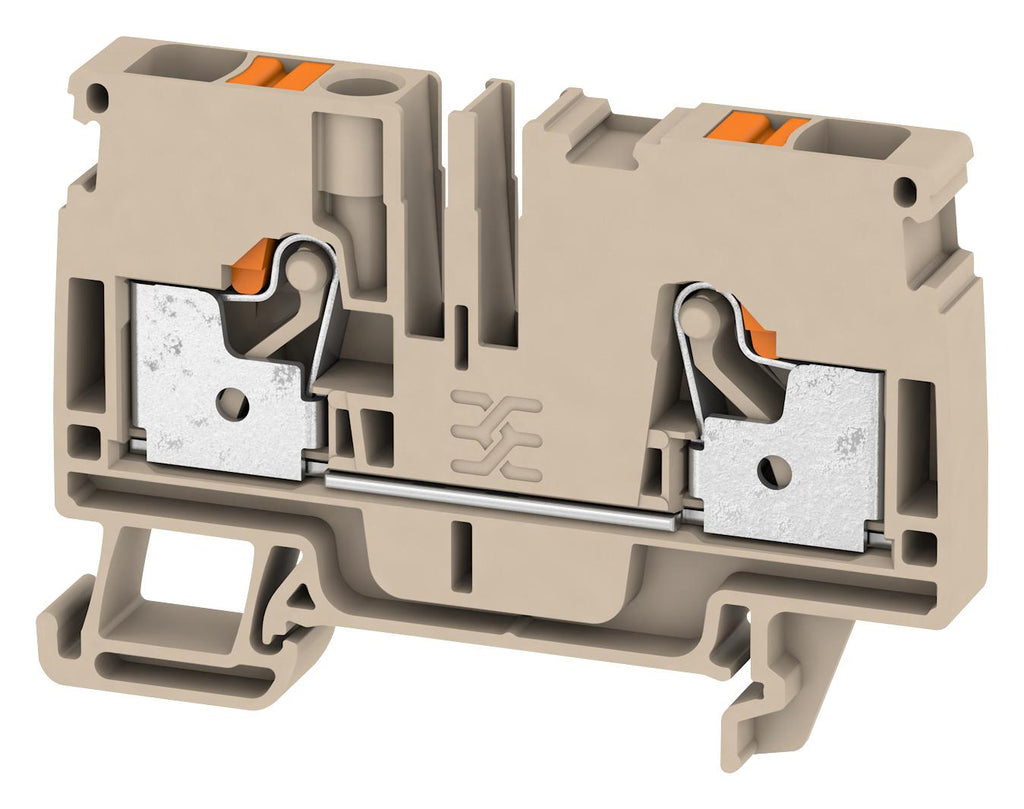

The 1992110000 from Weidmuller is a dark beige colour feed through terminal. It is made of wemid material. This terminal block has one potential, one level, two clamping points per level and one potential per tier. The wire connection cross section ranges from 22AWG to 8AWG.
- PUSH IN technology
- Dimension is 8.1mm x 66.5mm x 45.5mm (W x H x D)
- Net weight of 16.37g
- Continuous operating temperature range from -50°C to 130°C
- Flammability rating meets UL94-V0
- TS 35 mounting rail
- Clamping range, rated connection range from 0.5mm² to 6mm²
- Rated voltage of 800V and rated current of 41A, rated impulse withstand voltage is 8KV
- In accordance with IEC 60947-7-1 standard, pollution severity 3
Industrial
Other details
| Brand | WEIDMULLER |
| Part Number | 1992110000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
