Description

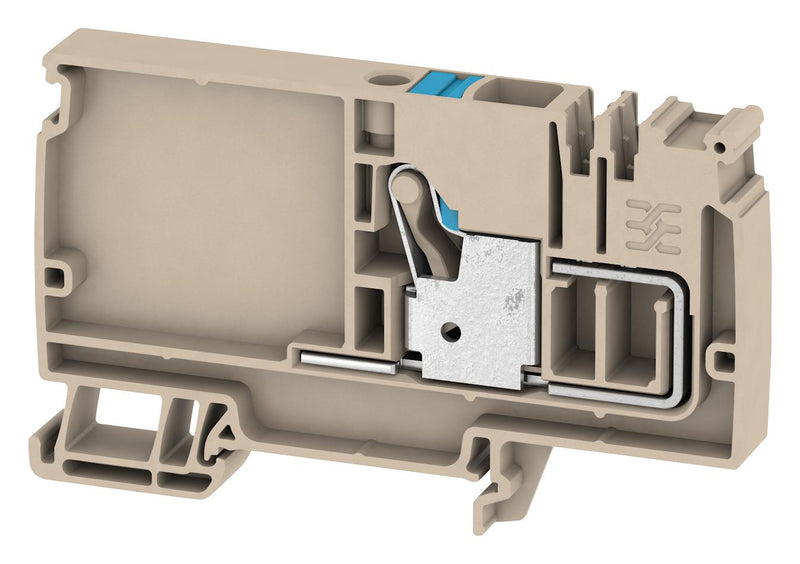

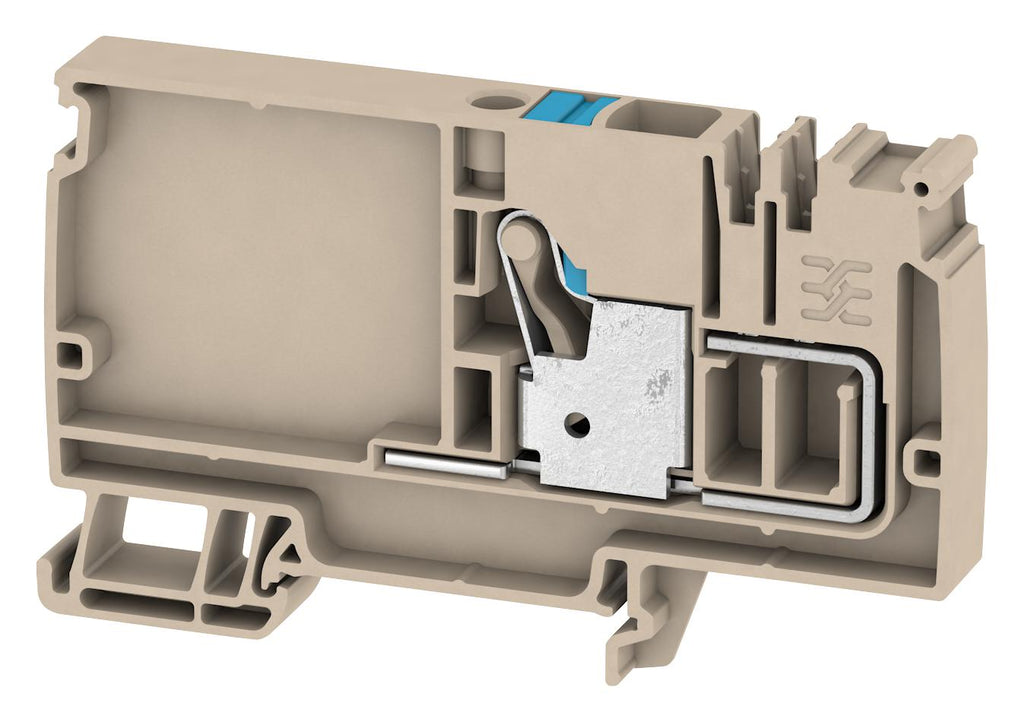

The 1988180000 from Weidmuller is a dark beige colour supply terminal block with 2 connections. It is made of wemid material. This terminal block has one potential, one level, one clamping points per level and one potential per tier. The wire connection cross section ranges from 20AWG to 6AWG.
- PUSH IN technology
- Dimension is 10mm x 89mm x 54mm (W x H x D)
- Net weight of 25.342g
- Continuous operating temperature range from -50°C to 130°C
- Flammability rating meets UL94 -V0
- TS 35 mounting rail
- Clamping range, rated connection range from 0.5mm² to 10mm²
- Rated cross-section of 10mm², rated voltage of 800V and rated current of 57A
- Complies with IEC/EN 60947-7-1 and pollution severity 3 standards
Industrial
Other details
| Brand | WEIDMULLER |
| Part Number | 1988180000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
