Description

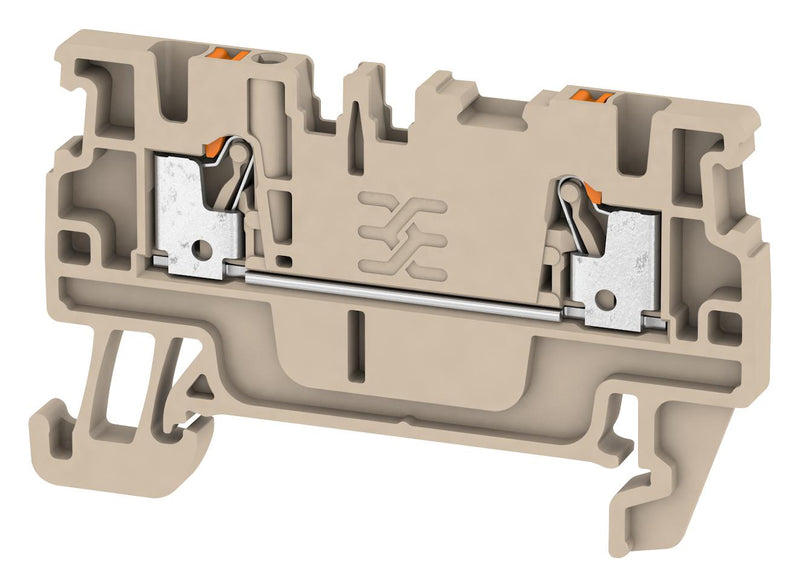

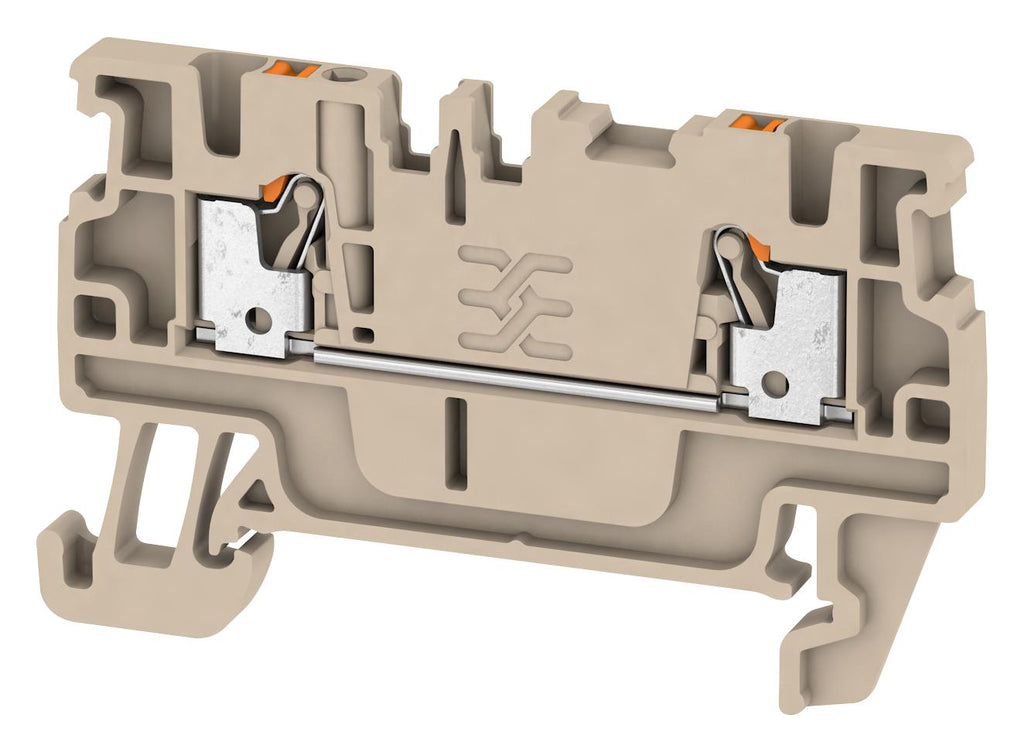

The 1552790000 from Weidmuller is a dark beige colour feed through terminal block with 2 connections. It is made of wemid material, terminal block has one potential, one level, two clamping points per level and one potential per tier. The wire connection cross section ranges from 26AWG to 14AWG.
- PUSH IN technology, snap-on type of fixing and snap-on type of mounting
- Dimension is 3.5mm x 55mm x 33.5mm (W x H x D)
- Net weight of 4.04g
- Continuous operating temperature range from -50°C to 130°C
- Flammability rating meets UL94-V0
- TS 35 mounting rail
- Clamping range, rated connection range from 0.14mm² to 1.5mm²
- Rated cross-section of 1.5mm² and rated voltage of 500V
- IEC 60947-7-1 standard and pollution severity 3
Industrial
Other details
| Brand | WEIDMULLER |
| Part Number | 1552790000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
