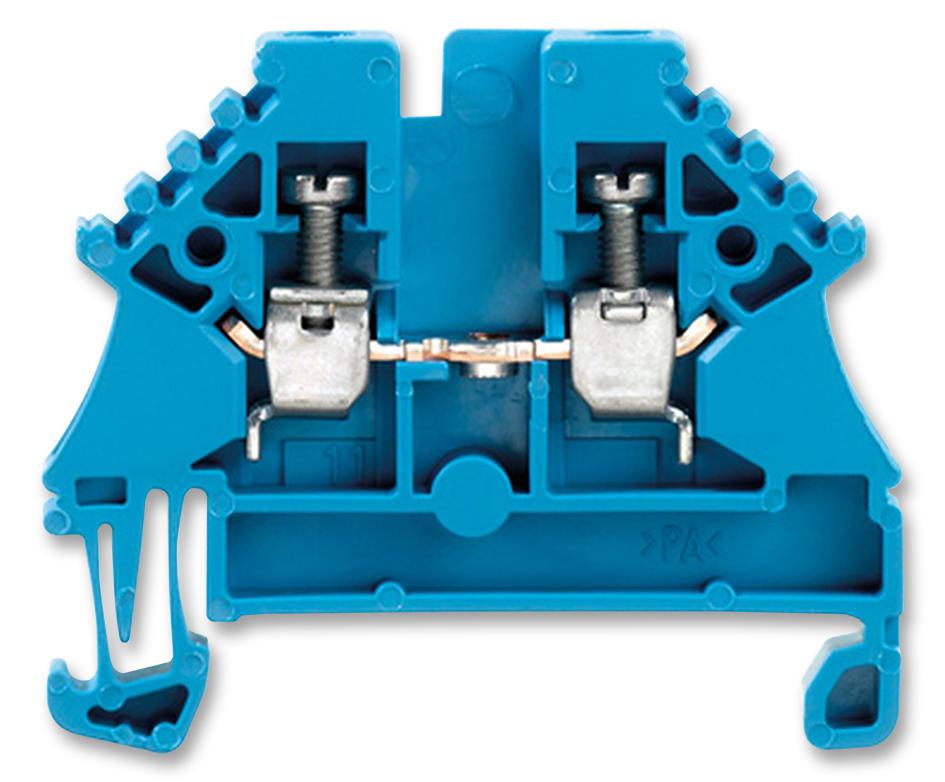

Weidmuller 102008 WDU2.5 BLUE 102008 BLUE DIN Rail Mount Terminal Block 2 Ways 30 AWG 12 2.5 mm² Screw 24 A

The 102008 WDU2.5 BLUE is an one circuit feed-through Terminal Block with screw connection, for plug-in cross-connector for screwable cross connection and 2.5mm² wire cross section area. M2.5 clamping screw and 10mm stripping length. Blue colour, TS 35 rail mount and snap-on mounting. The WDU 2.5 BL 800V terminal block accepts 30AWG minimum to 12AWG maximum wire size. Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials have been tested to current environment guidelines. The W-Series offers solutions for all standard electrical functions. It brings considerable time savings compared to all other screw terminals on the market. Thanks to the patented design of Weidmüller's W-series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.

• Simple operation - Can be clipped to or removed from the terminal rail in either direction
• Thermally stable up to 120°C
• Phosphorous- or halogen-free
• Maintenance-free contacts
• Highest contact force of all connection systems
• Electric shock protection with connected conductors, even when cross-connected
• Wemid insulator
• UL94V-0 Flammability rating

Applications

Industrial

Other details

Brand	WEIDMULLER
Part Number	102008 WDU2.5 BLUE
Quantity	Each
Technical Data Sheet EN
3D Product Image EN
