Description

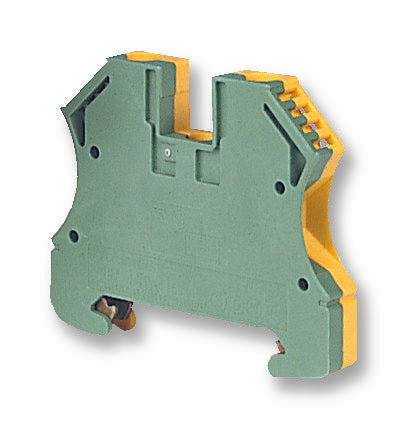

The 101020 WPE6 is a Modular PE Terminal Block with screw connection, PE connection and 6mm² wire cross section area. M3 clamping screw and 12mm stripping length. Yellow/green colour, TS 35 rail mount and snap-on mounting. The WPE 6 terminal block accepts 20AWG minimum to 8AWG maximum wire size. Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials have been tested to current environment guidelines. The W-Series offers solutions for all standard electrical functions. It brings considerable time savings compared to all other screw terminals on the market. Thanks to the patented design of Weidmüller's W-series screw connection technology it is possible for two conductors with the same cross-section to be connected in one and the same clamping yoke without difficulty.
- Simple operation - Can be clipped to or removed from the terminal rail in either direction
- Thermally stable up to 120°C
- Phosphorous- or halogen-free
- Maintenance-free contacts
- Highest contact force of all connection systems
- Electric shock protection with connected conductors, even when cross-connected
- Wemid insulator
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | WEIDMULLER |
| Part Number | 101020 WPE6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
