Waves Soundgrid Extreme Overview

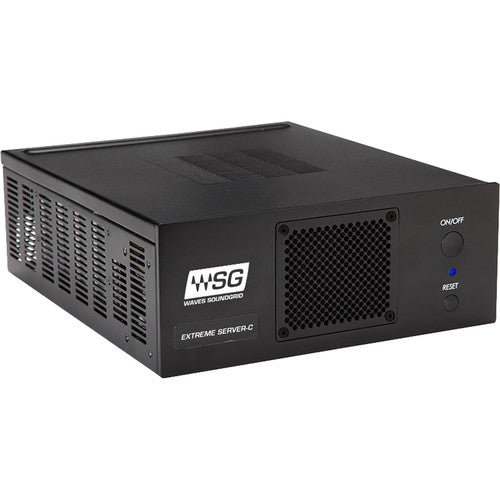

The SoundGrid Extreme Server-C DSP Unit from Waves is a super-powerful Intel i7-based DSP unit that will handle your heaviest mixing sessions, processing up to hundreds of plug-ins in real-time and with ultra-low latency. It can be used for major tours and in pro studios to run as many Waves and SoundGrid-compatible plug-ins as you want, on as many channels as you've got and deliver live shows with studio-grade professional sound.
SoundGrid Extreme delivers over 40% more power than SoundGrid Server One. You can throw plug-ins modeled on the world's top consoles on each and every channel, and make your mixer sound like a classic top-tier mixing desk. Furthermore, housed in a rugged rack-mounted 2U chassis, the SoundGrid Extreme Server-C DSP Unit is a massive upgrade to any studio or live mixing system, unleashing your creative mixing powers session after session, night after night.
Adds massive processing power to your system
Compact, powerful DSP unit
Ultra-low latency: as low as 0.8 milliseconds at 44.1, 48, 88.2, and 96 kHz
Minimal fan noise: fan speed auto-adjusts based on CPU temperature
Use with any SoundGrid I/O interface (including DiGiGrid I/Os)
Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect
LED status indicator for easy identification of the server
Rugged Neutrik etherCon SoundGrid port connector
![]()
UPC: 702781703346
In the Box
- Waves SoundGrid Extreme Server-C DSP Unit
- Limited 1-Year Warranty
Waves Soundgrid Extreme Specs
| Form Factor |
Tabletop |
| Internal DSP |
Intel Skylake i7 |
Connectivity
| USB (Non-Host) |
1 x USB Type-A |
| Network I/O |
1 x etherCON/RJ45 SoundGrid |
| Other I/O |
2 x HDMI Service Input |
Power
| Power Consumption |
50 W (Maximum) |
Physical
| Dimensions |
19 x 3.5 x 11.8" / 48.3 x 8.9 x 30 cm |
| Weight |
18.4 lb / 8.3 kg |
Packaging Info
| Package Weight |
9.425 lb |
| Box Dimensions (LxWxH) |
14.95 x 11.55 x 5.85" |
