Description
Waves Ionic 16 Overview
- 1Description
- 2Waves Signature Preamps for Superior Audio Quality
- 3Timeless Analog Warmth with Harmonic Enhancer
- 4Get More Out of Your Stage Mics
- 5Crystal Clear Line Outputs with Extra Headroom
- 6Seamless Integration with eMotion LV1 Live Mixer
- 7Key Features

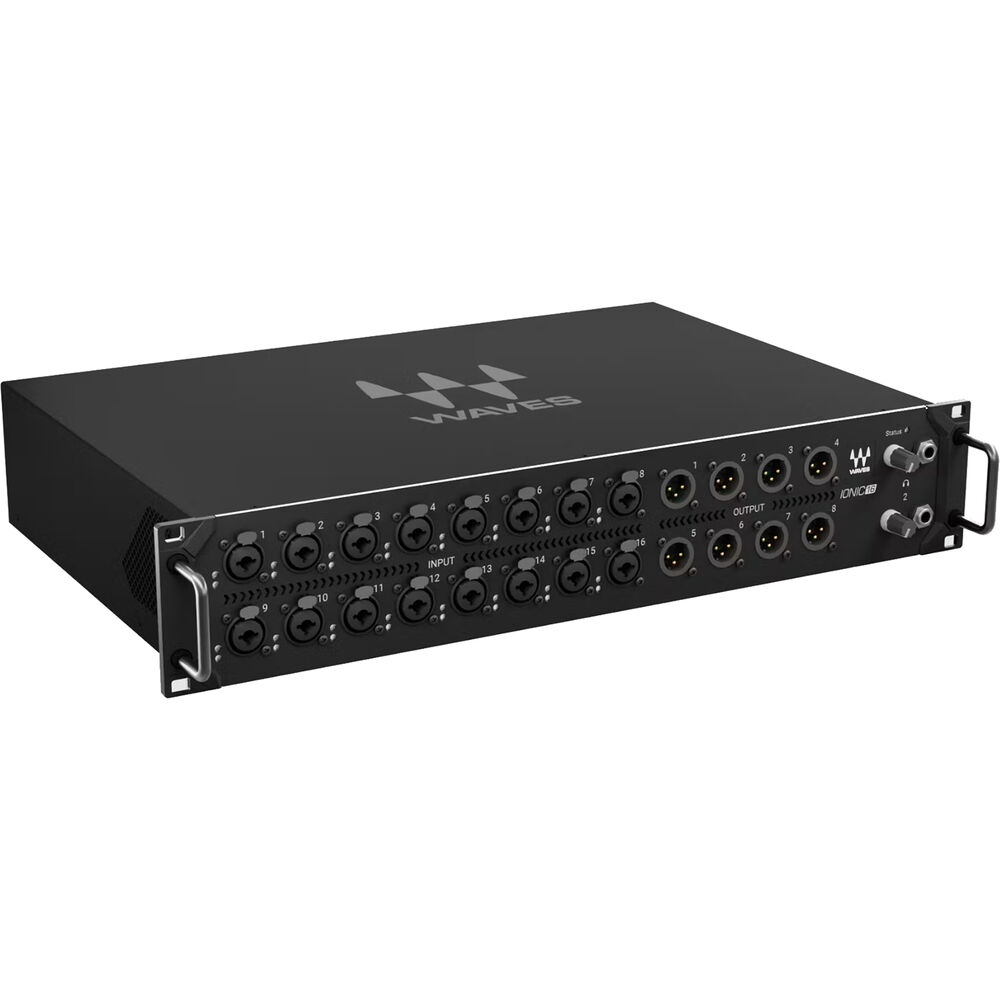

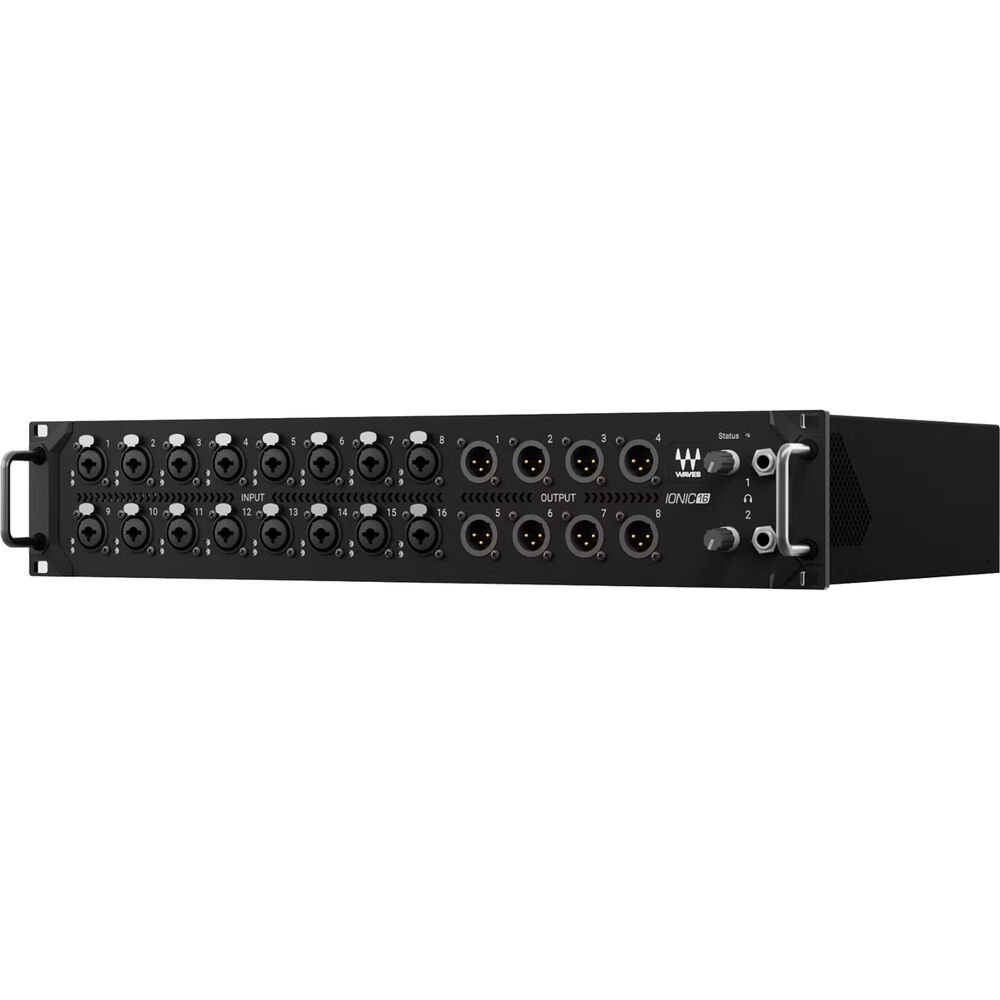

Add 16 high-performance, Waves Signature mic preamps and 12 line outputs to your SoundGrid network with the Waves Ionic 16, a digital Soundgrid stagebox housed in a rugged 2 RU rack-mountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the Ionic 16 integrates easily into your stage- or studio-based setup. Its redundant PSU external input enables the stagebox to continue working even if power to primary power supply fails.

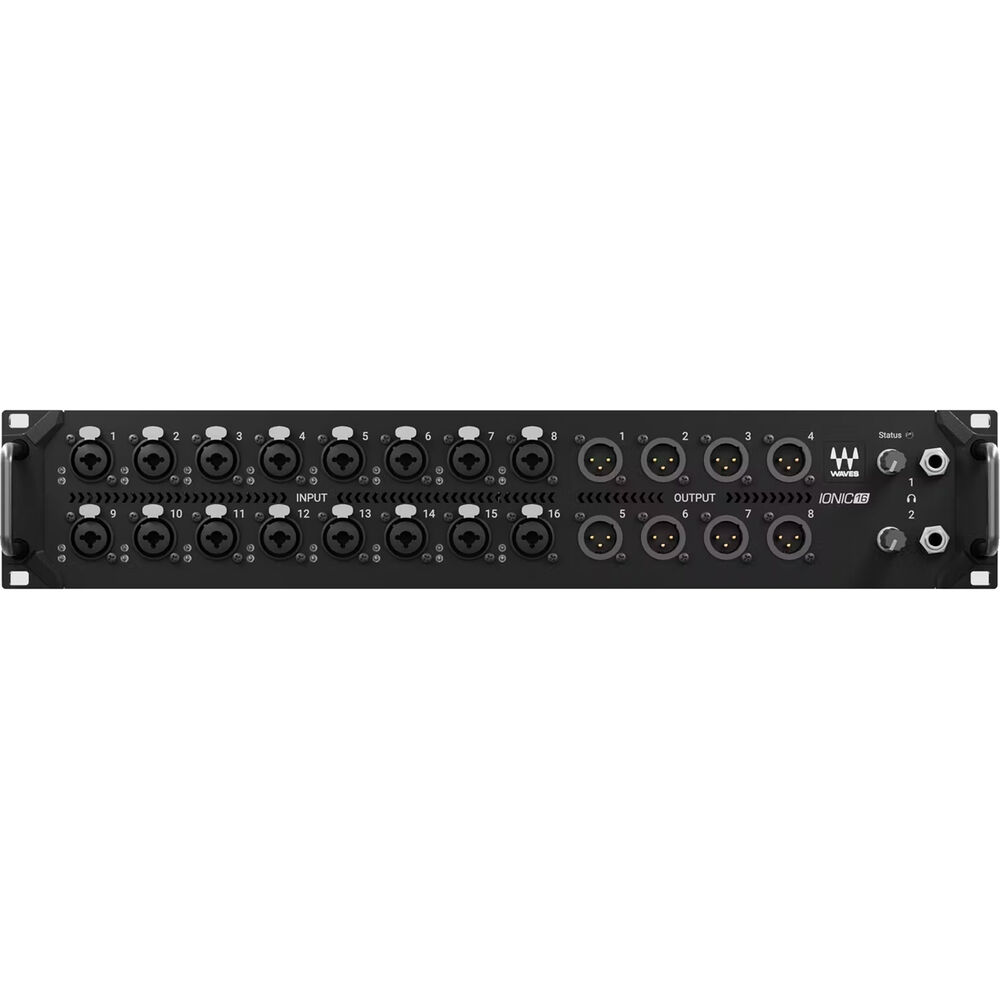

Ionic 16 provides 16 channels of mic/line input on XLR-1/4" combo connectors and 12-line level outputs on XLR connectors. There are also XLR AES3 input and output connectors, and two headphone jacks. Most I/O connections are from the front panel. The stagebox features Waves Signature Preamps: fast response, maximum headroom, up to 60 dB of gain, 48V phantom power, and fully discrete analog circuits. A switchable harmonic enhancer adds analog warmth and harmonics without compromising punch or clarity. Preamp impedance is selectable between 2 and 7 kilohms.
- The key to Ionic 16�s professional audio quality are the Waves Signature Preamps: fully discrete, high-end analog circuits, designed to handle any signal you throw at them with full confidence.
- The gain structure is meticulously designed to deliver a wide dynamic range and handle hotter signals, with practically no restraints. The result is plenty of headroom, transients that do not clip, and an extremely low noise floor, for a clean, punchy sound.
- Waves Signature preamps deliver a rich, full-bodied warm sound usually found only in high-end mixing consoles, without compromising any of the clarity, using analog-modeled HMX harmonic enhancer technology.
- The harmonic enhancer can also be turned on or off per input, with �off� providing a more neutral sound.
- The preamp section�s analog-impedance selector allows you to tailor the sound of your mic. Choose between a classic 2 kilohms and a modern 7 kilohms, for greater sonic flexibility.
- Whether you are powering stage wedges that compete with the drummer, a full rack of in-ears transmitters, or a PA system of any size or quality, Ionic�s twelve powerful outputs and two independent headphones outs deliver a crystal-clear signal with plenty of headroom.
- Ionic 16 provides seamless connectivity to any eMotion LV1 system, ensuring quick and easy setup without wasting time on manual configurations. The stagebox�s control panel is available in the LV1�s device rack, letting you control various parameters in your preamps and outputs directly from the mixer, without complicated setup.
- 16 channels of mic/line input on XLR-1/4" combo connectors
- 12 line-level outputs on XLR connectors
- Waves Signature preamps
- Switchable harmonic enhancer
- Switchable preamp impedance
- Input gain: adjustable from -3 to 60 dB in steps of 1 dB
- 48V phantom power switchable per input
- Maximum output level: +18 or + 24 dBu, switchable per output
- 2 headphone outputs with volume control
- AES3 I/O: 110 ohms
- SoundGrid: Ethernet 1GB
- Power: 100-240 VAC auto-switching PSU, redundant PSU external input
- Road-worthy, 2 RU rack-mountable chassis
In the Box
- Waves Ionic 16 16-In /12-Out Soundgrid Stagebox
- Power Cord
- Limited 1-Year Manufacturer Warranty
- Description
- Waves Signature Preamps for Superior Audio Quality
- Timeless Analog Warmth with Harmonic Enhancer
- Get More Out of Your Stage Mics
- Crystal Clear Line Outputs with Extra Headroom
- Seamless Integration with eMotion LV1 Live Mixer
- Key Features
Waves Ionic 16 Specs
| Compatibility |
Waves SoundGrid System
|

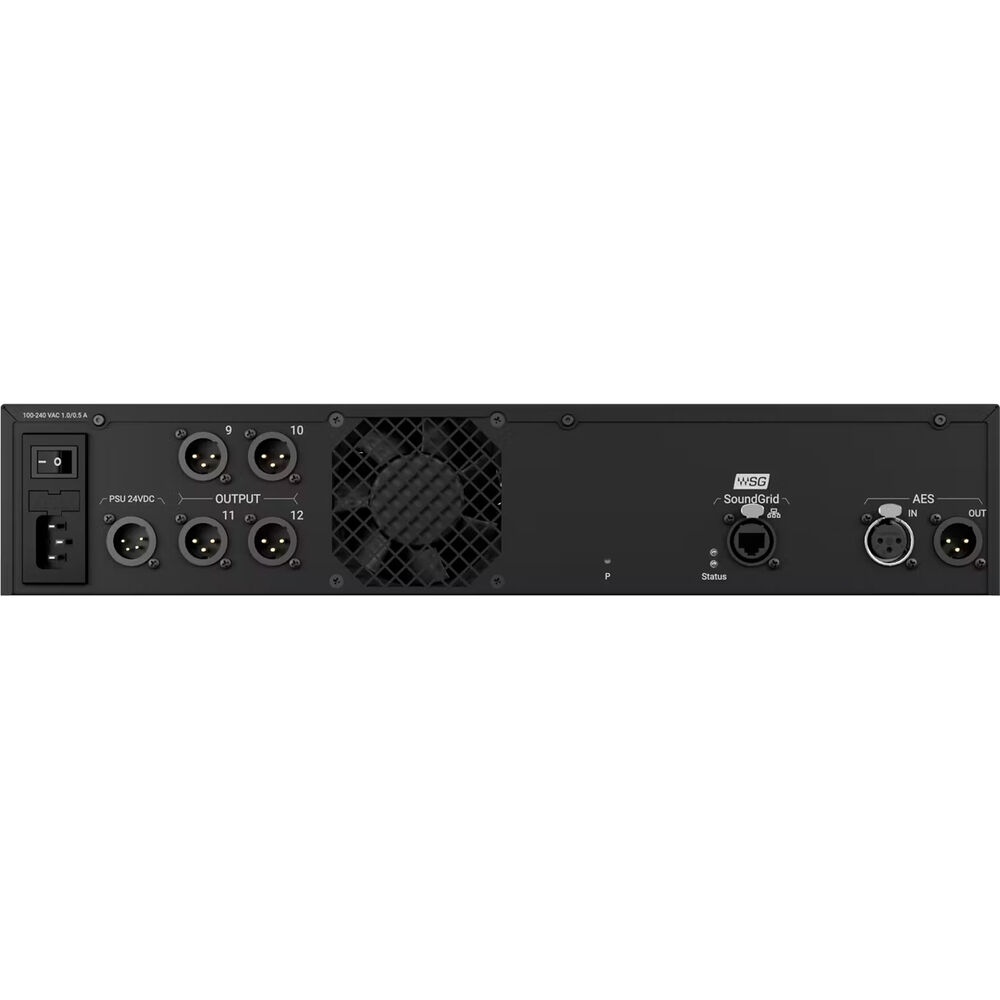

| Audio I/O |
16x Combo XLR-1/4" 3-Pin Line/Mic Input
12x XLR 3-Pin Line Output 2x 1/4" TRS Headphone Output |
| Digital I/O |
1 x XLR 3-Pin AES3 Input
1 x XLR 3-Pin AES3 Output 1 x RJ45 etherCon |
| Power Source |
AC Input (Built-In), AC Adapter with Power Brick (Not Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.25 to 0.5 A
|
| DC Input Power |
24 VDC
|
| Operating Temperature |
32 to 95°F / 0 to 35°C
|
| Mounting |
1 x Rackmount
|
| Color |
Black
|
| Dimensions |
19 x 12 x 3.42" / 48.3 x 30.5 x 8.69 cm
|
| Weight |
11.7 lb / 5.3 kg
|
| Package Weight |
15.09 lb
|
| Box Dimensions (LxWxH) |
23 x 16.5 x 5.1"
|
