Description
Waves CMBLVDSP64 Overview
- 1Description
- 2Waves Axis One Custom-Designed Computer for Waves Audio Applications
- 3Waves FIT Controller for Emotion LV1 Mixer
- 4Waves eMotion LV1 64 Stereo Channels - Live Mixer Software (Download)
- 5Waves SoundGrid Extreme Server-C DSP Unit
- 6Waves DSPRO StageGrid 4000 32-Input / 16-Output Digital SoundGrid Stagebox
- 7Netgear GS108-400NAS ProSAFE 8-Port Gigabit Switch

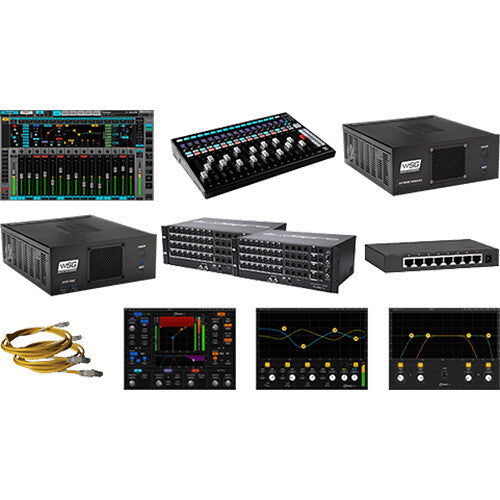

The Waves eMotion LV1 Mixer with 64-Preamp Stagebox, SoundGrid Extreme Server-C, Axis One Computer, and FIT Controller takes the guesswork out of configuring a complete mixing system that delivers world-class sound for extremely large, professional setups in stages, clubs, concert venues, and houses of worship. From the digitally controlled high-end preamps to the ultralow-latency performance and powerful DSP resources, this system is built for ideal workflow efficiency, tactile physical control, and sonic quality.
It includes the 64-channel eMotion LV1 live mixer software, a SoundGrid Extreme Server-C DSP unit for intense plug-in processing, two 32-input / 16-output DSPRO StageGrid 4000 stageboxes, an Axis One Waves-optimized computer, and the FIT motorized-fader controller. Additionally, it comes with four plug-in processors�eMo D5 dynamics, eMo F2 filter, eMo generator, and eMo Q4 equalizer�to allow capable signal control out of the box. The supplied Netgear 8-port switch and Cat 6 Ethernet cables ensure proper hookup of the various SoundGrid-capable devices. Mount the computer and server in 2 RU of rack space with the included rack shelf.
Waves Axis One Custom-Designed Computer for Waves Audio Applications
Designed and tuned to run Waves audio application with peak efficiency and worry-free stability, Waves Axis One is a compact, rack-mountable computer that gives demanding engineers the performance they need for high-profile live stage and studio environments. It comes preloaded with Windows 10, Waves Central, eMotion LV1, and all Waves plug-ins, ready for activation via separately available licenses.
Axis One boasts a powerful six-core 3.0 GHz Intel i5 8500 processor and 16GB of DDR4 RAM to keep your apps and effects running smoothly. Internal storage is provided by a 256GB SSD. With two HDMI port and one DisplayPort output, Axis One can support up to three displays, so you can see everything you need at the same time. Axis One's plentiful ports�eight USB Type-A, one USB Type-C, RJ45 Ethernet, and etherCON SoundGrid�enable versatile connectivity without having to rely on additional hubs.
Optimized for Waves Audio Applications
Rigorously Tested
SoundGrid Connectivity
Essential Computer Features
- Intel i5 8500 processor
- 16GB DDR4 RAM
- 256GB SSD internal storage
- Windows 10
- Two HDMI ports and one DisplayPort, supports up to three displays
- One etherCON SoundGrid port
- One RJ45 Ethernet port
- Six USB 3.1 Gen 1 Type-A ports
- Two USB 2.0 Type-A ports
- One USB 3.1 Gen 1 Type-C port
- Preinstalled with the latest versions of Waves Central, eMotion LV1, SuperRack, and all Waves plug-ins (activation and use of the pre-installed plug-ins requires purchase of their licenses)
- Rack-mountable via rack ears or a rack shelf (both available separately)
Waves FIT Controller for Emotion LV1 Mixer
The Waves FIT is a tactile control unit for the Waves eMotion LV1 live software mixer (available separately). The unit offers 16 channel sections and 1 master section, each featuring a 100mm touch-sensitive motorized fader, a bright display, and common controls including Mute, Solo, Select, and a multi-function rotary control.
The system uses dedicated 1-8 Fader layer switches for toggling between the 8 factory or custom layers in the eMotion LV1 software mixer. The 16 channel rotary controls can be set to control preamp gain or pan settings per channel, with their labels shown in the display. The rotary controller in the center section is a touch and turn knob that can be set to control any LV1 parameter. 16 Select channel toggles can be set to �USER� mode to provide easy and quick access to Mute Groups and user-assignable keys with their text labels displayed. The UTILITY section offers user customization of commonly controlled functions and modes allowing you to optimize your workflow.
Enjoy the Best of Both Worlds
- Integrate the world�s elite software live sound mixer with a highly intuitive control surface, for a tactile, hands-on experience that keeps you in full command of your live mix.
- FIT incorporates 16+1 motorized 100mm faders, which combine that familiar hands-on feel with all the benefits of a software-based mixer.
- Boasting bright high-resolution scribble displays, multifunction rotary controls, and user-assignable functions, this compact unit weighs only 9.43 lb, making it perfect for the road and for use in multiple venues.
- Two 5V, 0.5A USB outlets for LED lighting offer extra illumination in dark conditions.
- The included rack ears let you mount the FIT controller into any 19'' 7 RU rack space effortlessly.
Tactile Command Over Your Live Mix
- FIT extends the digital workflow of the eMotion LV1 to the tactile world, lining up fader for fader with the onscreen LV1 interface.
- Navigate, operate, and make the most out of the LV1 software. FIT gives you instant control of your LV1 faders, channel parameters, plug-in settings, FX sends, and monitor mixes for fast and efficient live sound mixing control.
- Take advantage of the included 5 factory-set utility functions to access some of the LV1�s most important operations: Toggle rotary mode, create a new scene, flip to custom layer, flip on aux sends, and even use spill mode for precise, tactile commands.
More Than Just Physical Fader Control
- Use the 8 available fader layer selectors to toggle between fader layers in the LV1, giving you access to any channel in your live session instantly.
- 16 multifunction rotary encoders give you the flexibility to control preamp gain or panning for each channel, with their label shown on the bright display.
- Map any eMotion LV1 parameter to the versatile touch-and-turn knob�for a truly customized live mixing workflow in the most demanding live sound mixing environments.
- Dial in your session�s BPM quickly and accurately with a heavy-duty Tap Tempo button.
- Get fast-and-easy access to mute groups and user-assignable keys by the setting channel select button to user mode.
Waves eMotion LV1 64 Stereo Channels - Live Mixer Software (Download)
Waves eMotion LV1 64 Stereo Channels is a digital software mixer with 64 stereo/mono input channels designed for front-of-house, foldback, and broadcast live sound mixing applications. It employs the SoundGrid infrastructure for audio networking and a 32-bit floating point mix engine to deliver pristine audio at sample rates up to 96 kHz and with latency as low as 0.8 ms, along with an intuitive, flexible, and fast workflow, ideal for demanding live environments.
eMotion LV1 gives you precise control over your live sound mixing with sixteen aux channels (stereo/mono), 8 audio groups, L/R/C/Mono panning, and 8 matrixes (stereo/mono). You can run up to eight SoundGrid-compatible plug-ins directly on each channel (Waves or third-party plug-ins). All saved plug-in presets and chains can be shared with the Waves MultiRack and StudioRack plug-in hosts, enabling you to move seamlessly between live and studio environments.
The main mixer window gives you the most important info you need at a glance including all channel inputs and parameters, routing, plug-in inserts, and more. Additional windows provide more detailed views. You can use the channel window for focused control of your plug-ins, including a Touch-and-Slide slider for quick and easy control of all plug-in parameters.
The software can be configured as a portable or stationary setup and can connect to any SoundGrid-compatible I/O or server, allowing you to work on your sessions online or offline, at home, in your hotel room, on the tour bus, or at the live venue.
eMotion LV1 provides support for up to four multitouch screens, as well as diverse industry-standard control surfaces. It ships with the eMo D5 Dynamics, eMo F2 Filter, eMo Generator, and eMo Q4 Equalizer plug-ins, optimized for live environments.
Key Features
- Digital mixing console software for front-of-house and broadcast live sound mixing
- 64 stereo/mono input channels, 36 buss/return channels
- Total portability�can be configured as a portable or stationary setup, and can connect to any SoundGrid-compatible I/O or server
- Intuitive workflow with a user interface built for flexibility and speed
- Uses the SoundGrid infrastructure for audio networking
- Run up to 8 SoundGrid-compatible plug-ins directly on each channel (Waves or third-party plug-ins)
- Includes eMo D5 Dynamics, eMo F2 Filter, eMo Generator, eMo Q4 Equalizer plug-ins, optimized for live environments
- 16 aux channels (stereo/mono), 8 audio groups, L/R/C/Mono, 8 matrixes (stereo/mono)
- 16 DCA faders, 8 mute groups, 8 user-assignable shortcut keys
- 32-bit floating point mix engine, with latency as low as 0.8 ms
- Sample rate: 44.1 to 96 kHz
- Patch up to 16 hardware and software SoundGrid I/Os
- All processing is done on an external SoundGrid DSP server
- Option to add a redundant DSP server
- Compatible with up to four multitouch screens, as well as diverse hardware control surfaces
- Touch-and-Slide slider for fine control over plug-in parameters
- 6 control windows: Mixer 1, Mixer 2, Channel, Show, Patch, Setup
- Different control windows can run simultaneously on different touchscreens
- Each Mixer window provides 8 layers, each with up to 16 channel strips
- Each channel strip provides control over its channel�s input, dynamics/EQ/filters, plug-in rack, sends, and routing
- Create your own custom layers for a personalized workflow
- Up to 1000 scenes, including recall filters and recall-safe options
- Sends-on-faders mode per Mixer window for each of the 16 aux busses, with auto cue on aux
- MIDI control over scene change
- Preamp control and digital trim per channel input
- Automatic latency compensation on internal mix busses
- Delay groups for output delay alignment
- Multiple outputs available per channel, each with digital trim per output
- Advanced stereo Imager, including balance, rotation, width and L/R panning
- 16 link control groups, providing global control over inputs, plug-ins, EQ, dynamics, and sends for assigned channels
- DCA fader per link control group
- DCA spill�populate layers with DCA-linked channels
- 8 mute groups, with an additional Mute All output option
- Global tempo control per scene
- Show Lock option for locking plug-in instantiations, external routing, and complete surface lock
- Comprehensive meter and clip settings
- 8 user-assignable keys for personalization of control over mixer operation�open specific plug-in, tap tempo, recall specific scene)
- Solo-in-place option, with automatic solo-safe sources and destinations
- Copy & paste channel names, processing, and routing
- A/B input options, for quick patch changes
- External insert for outboard gear connection, as part of the plug-in rack chain
- Offline operation mode, including offline configuration and patching of I/O devices
- Complete channel processing presets, compatible with Waves MultiRack and StudioRack presets
- Smooth integration with the separately available Dugan Speech plug-in for auto-mixing multiple mics
- eMotion LV1 video training course available online
- Compatible with Windows and Mac (64-bit)
Basic eMotion LV1 System
Host computer
- Controls the eMotion LV1 mixer as well as the SoundGrid network that connects all devices
- The eMotion LV1 application is located on this computer, as are your plug-ins and preset files
- eMotion LV1 runs on both Mac and Windows and supports multiple displays
SoundGrid Server
- This is where your plugins are being processed
- The power of the server has direct impact on the number of plug-in instances you can run
SoundGrid I/O
- At least one SoundGrid I/O ranging from 2-channel preamps to multiple 128-channel audio interfaces (such as the DiGiGrid MGB/MGO SoundGrid-to-MADI I/Os)
- All I/O devices are connected to the SoundGrid network via Ethernet
Ethernet Switch
- SoundGrid-compatible 1 GB Ethernet switch
- Links the host computer, the server, and all I/O devices
Waves SoundGrid Extreme Server-C DSP Unit
The SoundGrid Extreme Server-C DSP Unit from Waves is a super-powerful Intel i7-based DSP unit that will handle your heaviest mixing sessions, processing up to hundreds of plug-ins in real-time and with ultra-low latency. It can be used for major tours and in pro studios to run as many Waves and SoundGrid-compatible plug-ins as you want, on as many channels as you've got and deliver live shows with studio-grade professional sound.
SoundGrid Extreme delivers over 40% more power than SoundGrid Server One. You can throw plug-ins modeled on the world's top consoles on each and every channel, and make your mixer sound like a classic top-tier mixing desk. Furthermore, housed in a rugged rack-mounted 2U chassis, the SoundGrid Extreme Server-C DSP Unit is a massive upgrade to any studio or live mixing system, unleashing your creative mixing powers session after session, night after night.
Waves DSPRO StageGrid 4000 32-Input / 16-Output Digital SoundGrid Stagebox
Add 32 high-performance mic preamps and 16 line outputs to your SoundGrid network with the Waves DSPRO StageGrid 4000, a digital stagebox housed in a rugged 4 RU rackmountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the StageGrid 4000 integrates easily into your stage- or studio-based setup. Its redundant AC power supply enables the stagebox to continue working even if power to primary power supply fails.
Each of the digitally controlled preamps offers up to 60 dB of gain, 48V phantom power with LED indication, and a locking XLR mic/line input jack. Analog outputs include 16 balanced XLR line outs and two 1/4" stereo headphone output with their own level controls. BNC wordclock I/O allows proper synchronization with other digital equipment, and eight channels of AES3 I/O are present for routing multichannel digital signal in and out of the stage box.
Analog I/O
- 32 x XLR 3-pin mic/line locking inputs
- 16 x XLR line outputs
- Dual 1/4" stereo headphone outputs with separate level controls
Digital and Sync I/O
- 8-channel AES3 digital I/O via XLR jacks (four female input connectors and four male output connectors)
- BNC I/O for synchronization connectivity (word clock)
- etherCON SoundGrid network port for a secure connection
Features at a Glance
- Built-in SoundGrid card for interfacing with eMotion LV1 live mixer or any other hardware/software in a SoundGrid network
- Connect a single Ethernet cable to easily record, mix, and monitor live or in the studio
- High-end mic preamps with digital remote control and per-channel clip indication
- 48V phantom power with LED indicator per input
- Up to 96 kHz sample rate
- Rugged 4 RU rackmountable chassis
- Redundant AC power supply
Netgear GS108-400NAS ProSAFE 8-Port Gigabit Switch
Easily expand the reach of your network with the GS108-400NAS ProSAFE 8-Port Gigabit Switch from NETGEAR. Quickly and easily integrate this network switch into your existing network configuration as it features
