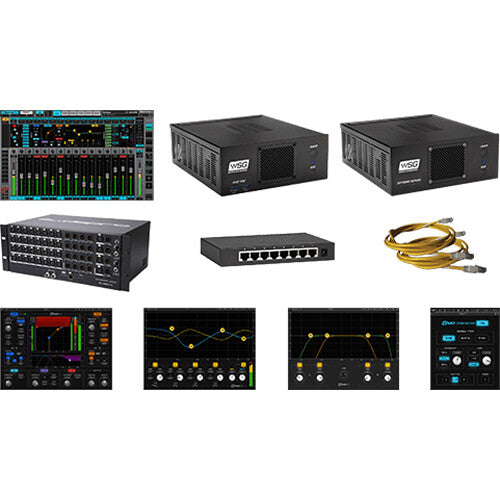

Waves eMotion LV1 Mixer with 32-Preamp Stagebox, SoundGrid Extreme Server-C, and Axis One Computer

Waves eMotion LV1 32 Stereo Channels is a digital software mixer with 32 stereo/mono input channels designed for front-of-house, foldback, and broadcast live sound mixing applications. It employs the SoundGrid infrastructure for audio networking and a 32-bit floating point mix engine to deliver pristine audio at sample rates up to 96 kHz and with latency as low as 0.8 ms, along with an intuitive, flexible, and fast workflow, ideal for demanding live environments.

eMotion LV1 gives you precise control over your live sound mixing with sixteen aux channels (stereo/mono), 8 audio groups, and L/R/C/Mono panning. You can run up to eight SoundGrid-compatible plug-ins directly on each channel (Waves or third-party plug-ins). All saved plug-in presets and chains can be shared with the Waves MultiRack and StudioRack plug-in hosts, enabling you to move seamlessly between live and studio environments.

The main mixer window gives you the most important info you need at a glance including all channel inputs and parameters, routing, plug-in inserts, and more. Additional windows provide more detailed views. You can use the channel window for focused control of your plug-ins, including a Touch-and-Slide slider for quick and easy control of all plug-in parameters.

The software can be configured as a portable or stationary setup, and can connect to any SoundGrid-compatible I/O or server, allowing you to work on your sessions online or offline, at home, in your hotel room, on the tour bus, or at the live venue.

eMotion LV1 provides support for up to four multitouch screens, as well as diverse industry-standard control surfaces. It ships with the eMo D5 Dynamics, eMo F2 Filter, eMo Generator, and eMo Q4 Equalizer plug-ins, optimized for live environments.

Basic eMotion LV1 System

Designed and tuned to run Waves audio application with peak efficiency and worry-free stability, Waves Axis One is a compact, rack-mountable computer that gives demanding engineers the performance they need for high-profile live stage and studio environments. It comes preloaded with Windows 10, Waves Central, eMotion LV1, and all Waves plug-ins, ready for activation via separately available licenses.

Axis One boasts a powerful six-core 3.0 GHz Intel i5 8500 processor and 16GB of DDR4 RAM to keep your apps and effects running smoothly. Internal storage is provided by a 256GB SSD. With two HDMI port and one DisplayPort output, Axis One can support up to three displays, so you can see everything you need at the same time. Axis One's plentiful ports�eight USB Type-A, one USB Type-C, RJ45 Ethernet, and etherCON SoundGrid�enable versatile connectivity without having to rely on additional hubs.

The SoundGrid Extreme Server-C DSP Unit from Waves is a super-powerful Intel i7-based DSP unit that will handle your heaviest mixing sessions, processing up to hundreds of plug-ins in real-time and with ultra-low latency. It can be used for major tours and in pro studios to run as many Waves and SoundGrid-compatible plug-ins as you want, on as many channels as you've got and deliver live shows with studio-grade professional sound.

SoundGrid Extreme delivers over 40% more power than SoundGrid Server One. You can throw plug-ins modeled on the world's top consoles on each and every channel, and make your mixer sound like a classic top-tier mixing desk. Furthermore, housed in a rugged rack-mounted 2U chassis, the SoundGrid Extreme Server-C DSP Unit is a massive upgrade to any studio or live mixing system, unleashing your creative mixing powers session after session, night after night.

Add 32 high-performance mic preamps and 16 line outputs to your SoundGrid network with the Waves DSPRO StageGrid 4000, a digital stagebox housed in a rugged 4 RU rackmountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the StageGrid 4000 integrates easily into your stage- or studio-based setup. Its redundant AC power supply enables the stagebox to continue working even if power to primary power supply fails.

Each of the digitally controlled preamps offers up to 60 dB of gain, 48V phantom power with LED indication, and a locking XLR mic/line input jack. Analog outputs include 16 balanced XLR line outs and two 1/4" stereo headphone output with their own level controls. BNC wordclock I/O allows proper synchronization with other digital equipment, and eight channels of AES3 I/O are present for routing multichannel digital signal in and out of the stage box.

Easily expand the reach of your network with the GS108-400NAS ProSAFE 8-Port Gigabit Switch from NETGEAR. Quickly and easily integrate this network switch into your existing network configuration as it features plug-and-play functionality. With the ability to adjust for network speed and cabling type, the switch can automatically make the necessary adjustments to avoid network downtime.

Realize the true benefit of Gigabit network speeds, as this switch features non-blocking port architecture ensuring you receive Gigabit data transfer rates from each port along with a total bandwidth of 16 Gbps. Additionally, this Gigabit switch from NETGEAR comes equipped with support for the energy-efficient Ethernet networking standard 802.11az to help reduce the overall power consumption of the switch.
