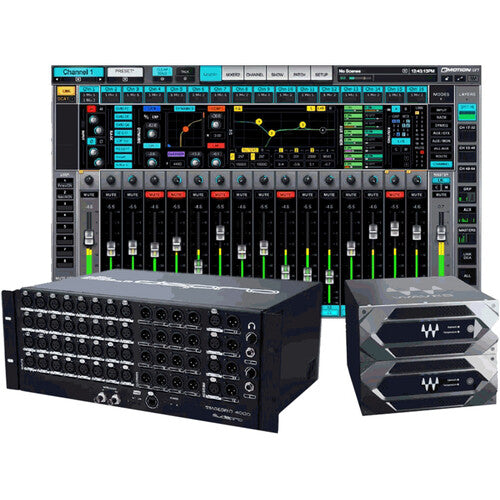

Waves eMotion LV1 + Extreme-C Server + 32-Preamp Stagebox + Axis Scope + Waves Essential Plug-Ins

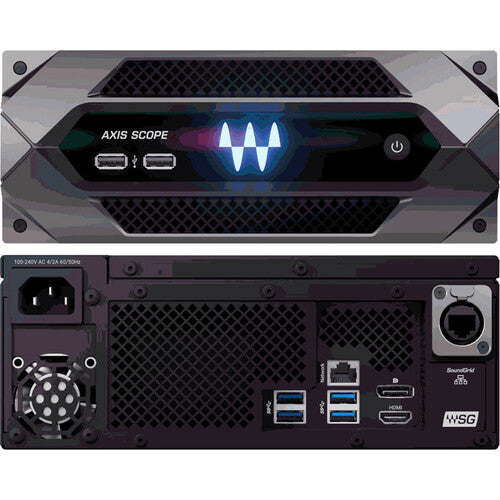

Waves Axis Scope Desktop Computer

Streamline the performance of your Waves applications with the Axis Scope. Optimized for audio applications such as eMotion LV1 and SuperRack, this desktop system is built from the ground up to reliably support live sound, broadcast, and studio productions. The Axis Scope is equipped with a 10th generation 3.3 GHz Intel Core i5 six-core processor with 16GB of DDR4 memory and a 256GB SSD. The components have undergone rigorous testing to deliver maximum stability and performance to sound engineers using Waves software applications.

Up to three displays may be connected through the built-in HDMI and DisplayPort outputs along with the included USB to HDMI adapter, which plugs into any of the four rear USB-A 3.1 Gen 1 ports. There are also two front-facing USB-A 2.0 ports for separately purchased keyboards, mice, and other peripherals. Connect to your audio components through the SoundGrid EtherCon Port and your network using the integrated Gigabit Ethernet RJ45 port. Or upgrade the system with Wi-Fi support by installing a separately available M.2 wireless adapter. This system may be mounted onto a rack, taking up 2 RU of space. Windows 10 is pre-installed.

Waves eMotion LV1 32 Stereo Channels - Live Mixer Software (Download)

Waves eMotion LV1 32 Stereo Channels is a digital software mixer with 32 stereo/mono input channels designed for front-of-house, foldback, and broadcast live sound mixing applications. It employs the SoundGrid infrastructure for audio networking and a 32-bit floating point mix engine to deliver pristine audio at sample rates up to 96 kHz and with latency as low as 0.8 ms, along with an intuitive, flexible, and fast workflow, ideal for demanding live environments.

eMotion LV1 gives you precise control over your live sound mixing with sixteen aux channels (stereo/mono), 8 audio groups, and L/R/C/Mono panning. You can run up to eight SoundGrid-compatible plug-ins directly on each channel (Waves or third-party plug-ins). All saved plug-in presets and chains can be shared with the Waves MultiRack and StudioRack plug-in hosts, enabling you to move seamlessly between live and studio environments.

The main mixer window gives you the most important info you need at a glance including all channel inputs and parameters, routing, plug-in inserts, and more. Additional windows provide more detailed views. You can use the channel window for focused control of your plug-ins, including a Touch-and-Slide slider for quick and easy control of all plug-in parameters.

The software can be configured as a portable or stationary setup, and can connect to any SoundGrid-compatible I/O or server, allowing you to work on your sessions online or offline, at home, in your hotel room, on the tour bus, or at the live venue.

eMotion LV1 provides support for up to four multitouch screens, as well as diverse industry-standard control surfaces. It ships with the eMo D5 Dynamics, eMo F2 Filter, eMo Generator, and eMo Q4 Equalizer plug-ins, optimized for live environments.

Note:

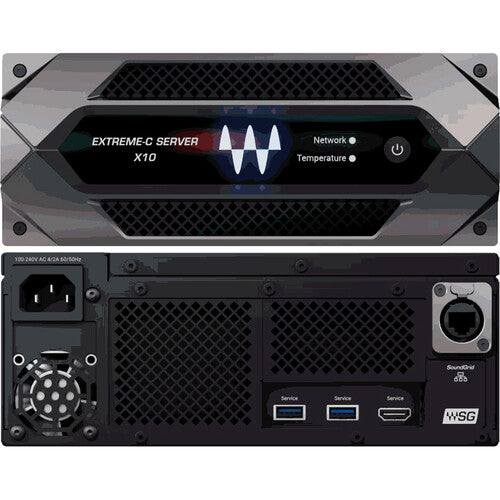

Waves Extreme-C SoundGrid Server DSP Unit (2 RU, Half-Rack)

Updated with 10th-generation Intel Core CPU, 8GB of RAM, a sleek industrial design, and brand-new features, the Waves Extreme-C SoundGrid Server is a powerful DSP unit that can effortlessly process hundreds of SoundGrid-compatible plug-ins in real time, live, or in the studio. Taking only half the width of a standard 2 RU rack, the Extreme-C Server fits right inside your carry-on, so you can easily take your mixing to the extreme wherever you go.

Built for elegance and durability, the Extreme-C SoundGrid Server now features LED indicators for easy network and temperature monitoring, plus sturdy RAM positioning for a reliable mixing experience whatever your project. A single RJ45 port ensures simple connectivity to your host computer or SoundGrid audio network. The server comes with built-in rack ears for quick installation straight out of the box.

UPC: 702781703346

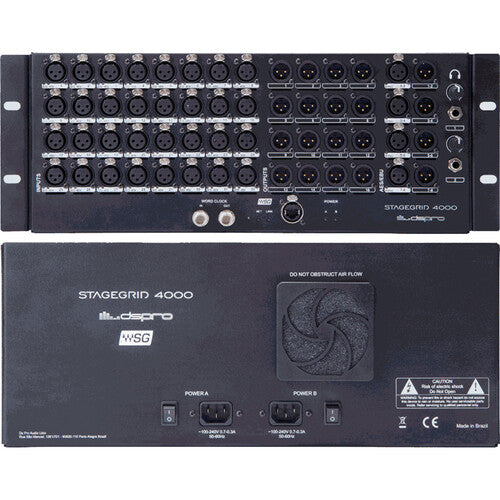

Waves DSPRO StageGrid 4000 32-Input / 16-Output Digital SoundGrid Stagebox

Add 32 high-performance mic preamps and 16 line outputs to your SoundGrid network with the Waves DSPRO StageGrid 4000, a digital stagebox housed in a rugged 4 RU rackmountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the StageGrid 4000 integrates easily into your stage- or studio-based setup. Its redundant AC power supply enables the stagebox to continue working even if power to primary power supply fails.

Each of the digitally controlled preamps offers up to 60 dB of gain, 48V phantom power with LED indication, and a locking XLR mic/line input jack. Analog outputs include 16 balanced XLR line outs and two 1/4" stereo headphone output with their own level controls. BNC wordclock I/O allows proper synchronization with other digital equipment, and eight channels of AES3 I/O are present for routing multichannel digital signal in and out of the stage box.

UPC: 712758002457

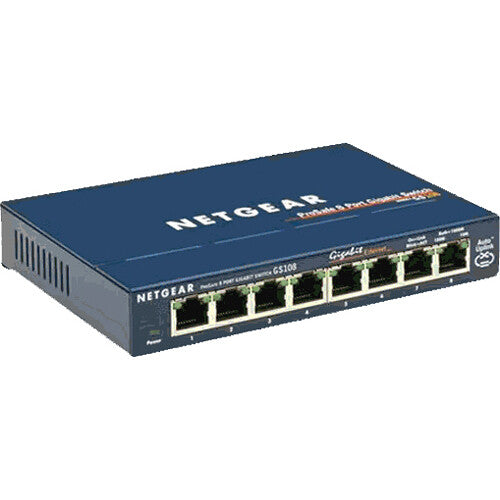

Netgear GS108-400NAS ProSAFE 8-Port Gigabit Switch

Easily expand the reach of your network with the GS108-400NAS ProSAFE 8-Port Gigabit Switch from NETGEAR. Quickly and easily integrate this network switch into your existing network configuration as it features plug-and-play functionality. With the ability to adjust for network speed and cabling type, the switch can automatically make the necessary adjustments to avoid network downtime.

Realize the true benefit of Gigabit network speeds, as this switch features non-blocking port architecture ensuring you receive Gigabit data transfer rates from each port along with a total bandwidth of 16 Gbps. Additionally, this Gigabit switch from NETGEAR comes equipped with support for the energy-efficient Ethernet networking standard 802.11az to help reduce the overall power consumption of the switch.

UPC: 606449070156
