Description
Waves DSP1000 Overview
- 1Description
- 2Analog I/O
- 3Digital I/O
- 4Features at a Glance

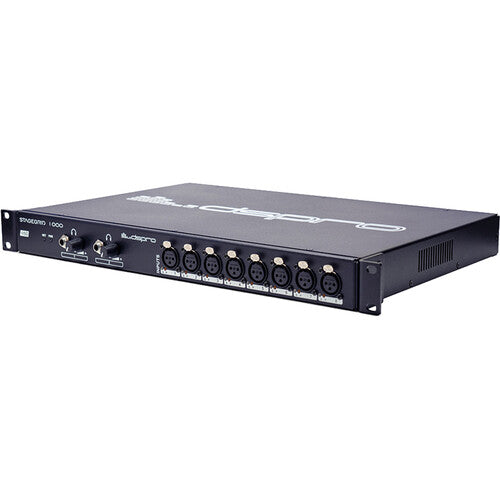

Add eight high-performance mic preamps and four line outputs to your SoundGrid network with the Waves DSPRO StageGrid 1000, a digital local I/O unit housed in a rugged 1 RU rackmountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the StageGrid 1000 integrates easily into your setup at FOH or on stage.
Each of the digitally controlled preamps offers up to 60 dB of gain, 48V phantom power with LED indication, and a locking XLR mic/line input jack. Analog outputs include four balanced XLR line outs and two 1/4" stereo headphone output with their own level controls. Two channels of AES/EBU I/O are present for routing stereo digital signal in and out of the StageGrid 1000.
Analog I/O

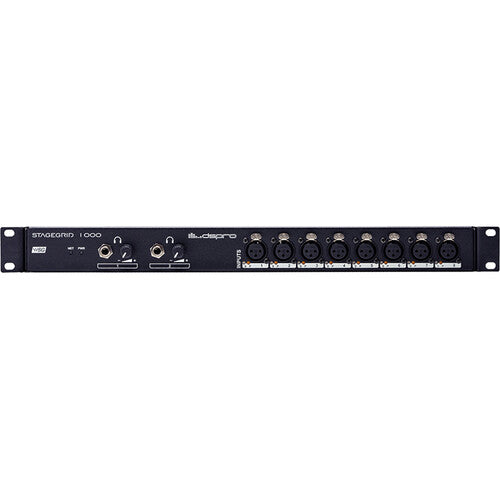

- Eight XLR 3-pin mic/line locking inputs

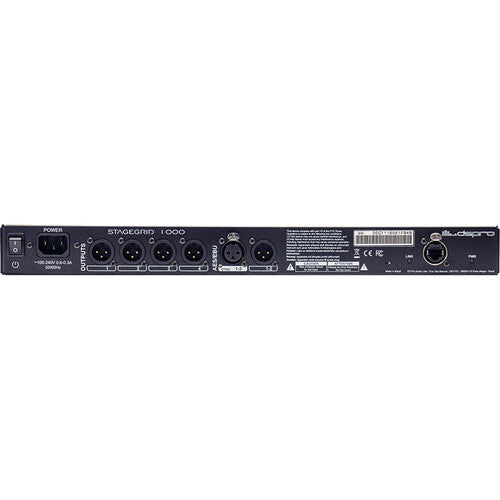

- Four XLR line outputs
- Dual 1/4" stereo headphone outputs with separate level controls
Digital I/O
- 2-channel AES/EBU digital I/O via XLR jacks (one female input connector and one male output connector)
- etherCON SoundGrid network port for a secure connection
Features at a Glance
- Built-in SoundGrid card for interfacing with eMotion LV1 live mixer or any other hardware/software in a SoundGrid network
- Connect a single Ethernet cable to easily record, mix, and monitor live or in the studio
- High-end mic preamps with digital remote control and per-channel clip indication
- 48V phantom power with LED indicator per input via software
- Up to 96 kHz sample rate
- Rugged 1 RU rackmountable chassis
- Compact I/O device for the eMotion LV1 live mixer
- Ideal for at FOH or monitors
In the Box
- Waves DSPRO StageGrid 1000 Rackmount 8-Input / 4-Output Local I/O Unit for eMotion LV1
- Power Cable
- Limited 1-Year Warranty
- Description
- Analog I/O
- Digital I/O
- Features at a Glance
Waves DSP1000 Specs
| Analog Inputs | 8 x XLR 3-Pin Female Balanced Mic/Line Inputs (Locking) |
| Analog Outputs | 4 x XLR 3-Pin Male Balanced Line Outputs 2 x 1/4" TRS Female Unbalanced Headphone Outputs |
| Digital I/O | 1 x XLR 3-Pin Female AES/EBU Input 1 x XLR 3-Pin Male AES/EBU Output |
| Network Ports | 1 x Neutrik etherCON GbE SoundGrid Port |
| Phantom Power | 48 VDC (On/Off Switchable per Channel via Software) |
| Frequency Response | 20 Hz to 40 kHz (±0.1 dB, 96 kHz Sample Rate) |
| Gain Range | -4 to 60 dB |
| Maximum Input Level | +28 dBu (-4 dB Gain) |
| Maximum Output Level | +24 dBu (at 0 dBFS) |
| Headphone Output Power | 150 mW per Channel on 16 Ohms |
| Input Impedance | Analog In: 2.9 Kilohms AES3 In: 110 Ohms |
| Output Impedance | Analog Out: 50 Ohms AES3 Out: 110 Ohms |
| Phase Shift | Analog In: <10° at 20 kHz Analog Out: <5° at 20 kHz |
| Dynamic Range | Analog In: 115 dB (-60 dBFS, +20 dB Gain, 1 kHz, A-Weighted) Analog Out: 115 dB (-60 dBFS, 1 kHz, A-Weighted) Headphone Out: 100 dB |
| THD | Analog In/Out: 0.002% (-1 dBFS, +20 dB Gain, 1 kHz, A-Weighted) |
| EIN | -128 dBu A-Weighted (+60 dB Gain, 150-Ohm Load) |
| Channel Isolation | >90 dB |
| Latency | A/D: 65 µs D/A: 70 µs |
| Sample Rate | 44.1 to 96 kHz |
| Power Requirements | 110 or 240 VAC, 50/60 Hz |
| Power Consumption | 25 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Relative Humidity | Up to 90% Noncondensing |
| Rackmount | Rackmountable in 1 RU of Rack Space |
| Dimensions | 16.9 x 1.7 x 11.8" / 43 x 4.4 x 30 cm (Excluding Connectors) |
| Weight | 6.4 lb / 2.9 kg |
| Package Weight | 11.07 lb |
| Box Dimensions (LxWxH) | 22.7 x 15.7 x 5.2" |
