Watson PXLR44P-10 Overview
-
1Description
-
2Power for Pro Gear
-
3Safety Features
-
4Strain Relief

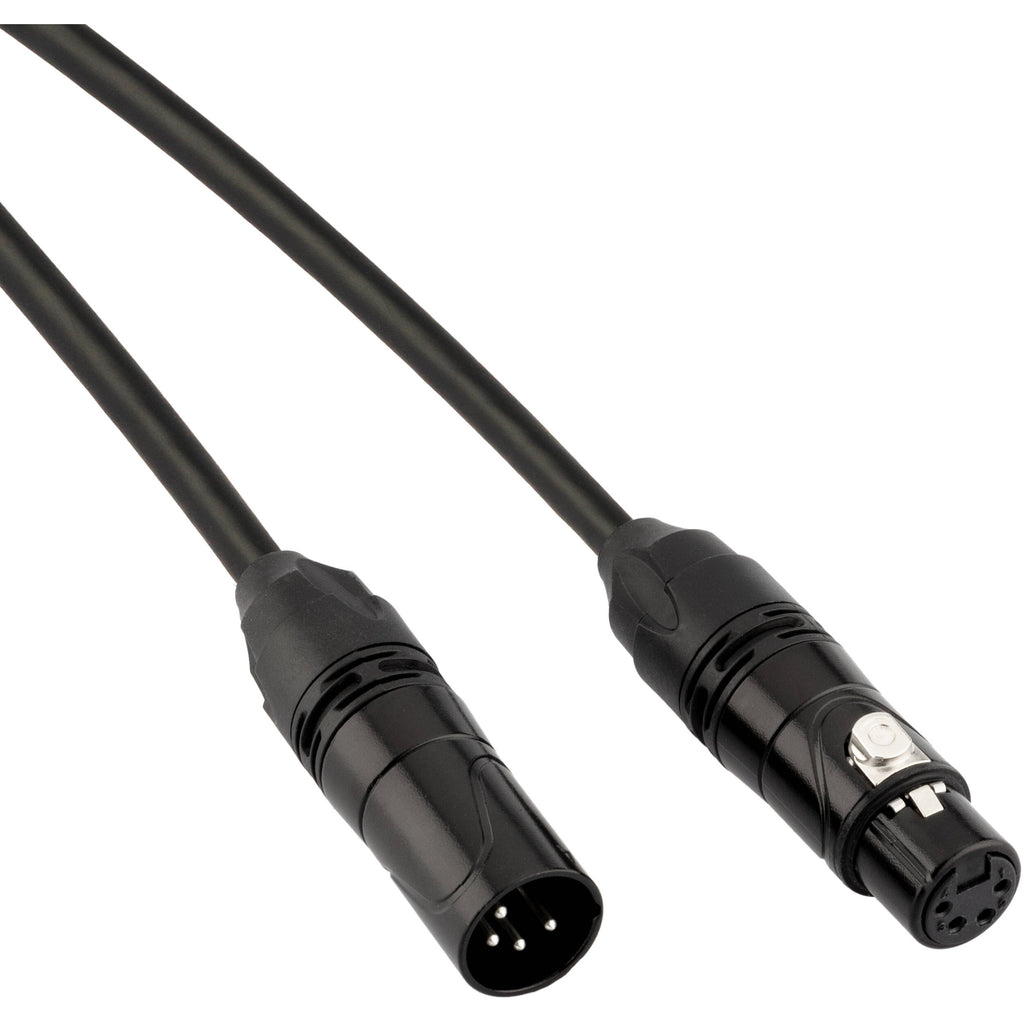

Use the Watson Pro PXLR44P-10 cable to reliably supply power to professional video and lighting equipment outfitted with XLR 4-pin power inputs. Utilizing four oxygen-free copper conductors and nickel-plated copper XLR 4-pin male and female connectors, it ensures pure power conductivity while accommodating loads up to 10 amps. The PXLR44P-10 boasts safety features�a PVC outer jacket to guard against slices while retaining flexibility and a PVC inner jacket that is fire retardant�so you can hook up your gear with confidence. To combat damage from rough cable pulls, the PXLR44P-10 features chuck-style strain relief where the cable and connector meet.
Power for Pro Gear
The PXLR44P cable provides power for pro studio and lighting gear that has 4-pin XLR power inputs. Use it as a power or extension cable to run up to 10-amp loads to your lights and studio gear.
Safety Features
The cable features a fire-retardant PVC inner jacket and a durable PVC outer jacket that protect the cable from nicks and cuts without sacrificing flexibility.
Strain Relief
When you're moving lights or gear around the studio, your power cable might sustain a tug or two. Chuck-style strain relief protects the cable at its most vulnerable point, where the cable meets the connector.
UPC: 847628038110
In the Box
- Watson PXLR44P-10 XLR 4-Pin Power Cable (10')
- Limited 1-Year Warranty
Table of Contents
- Description
- Power for Pro Gear
- Safety Features
- Strain Relief
Watson PXLR44P-10 Specs
Connector 1 |
1 x 4-Pin XLR Male |
Connector 2 |
1 x 4-Pin XLR Female (Locking) |
Voltage Control |
Unregulated |
Voltage |
300 VDC |
Current |
10 A |
Wire Gauge |
20 AWG |
Certifications |
UL, as per Manufacturer |
Material of Construction |
Copper |
LED Indicators |
No |
Cable Length |
10' / 3 m |
Weight |
9.8 oz / 278 g |
Packaging Info
Package Weight |
0.62 lb |
Box Dimensions (LxWxH) |
10.1 x 7.55 x 1.05" |
