Waterbird MS XL MKII Overview

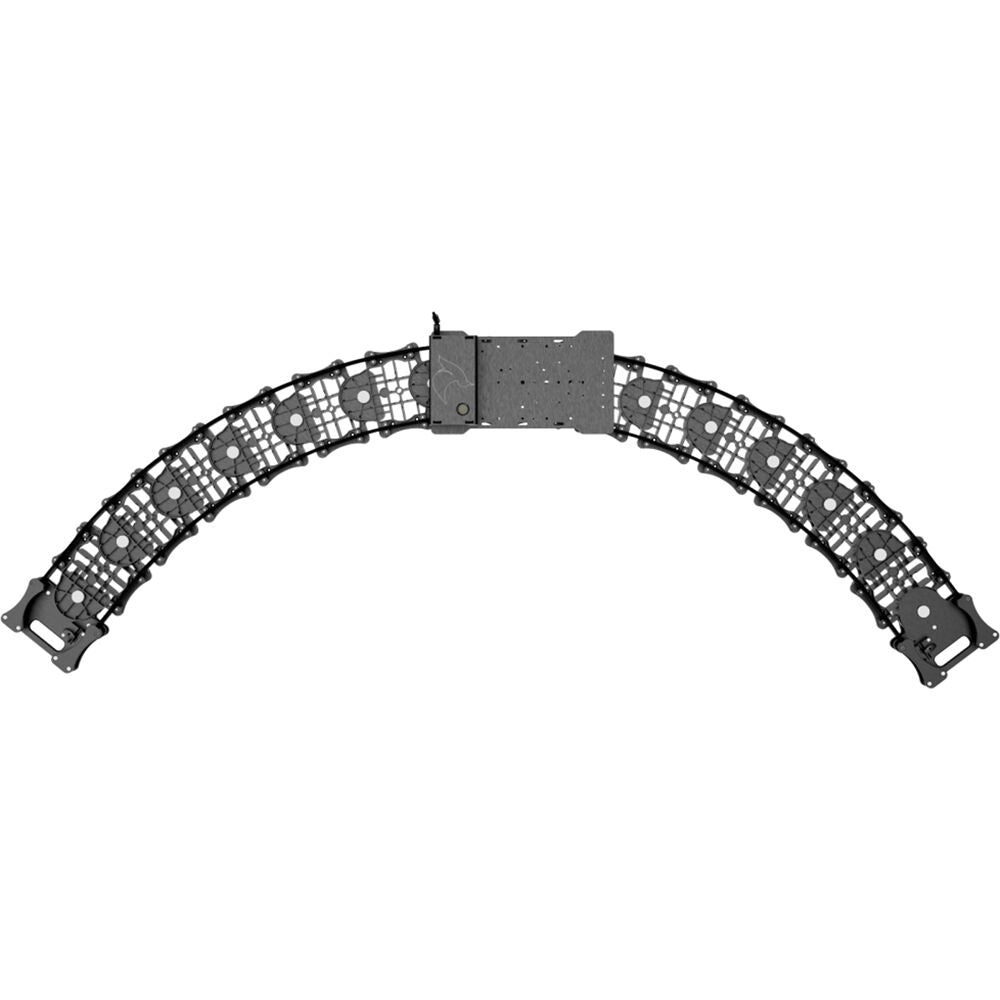

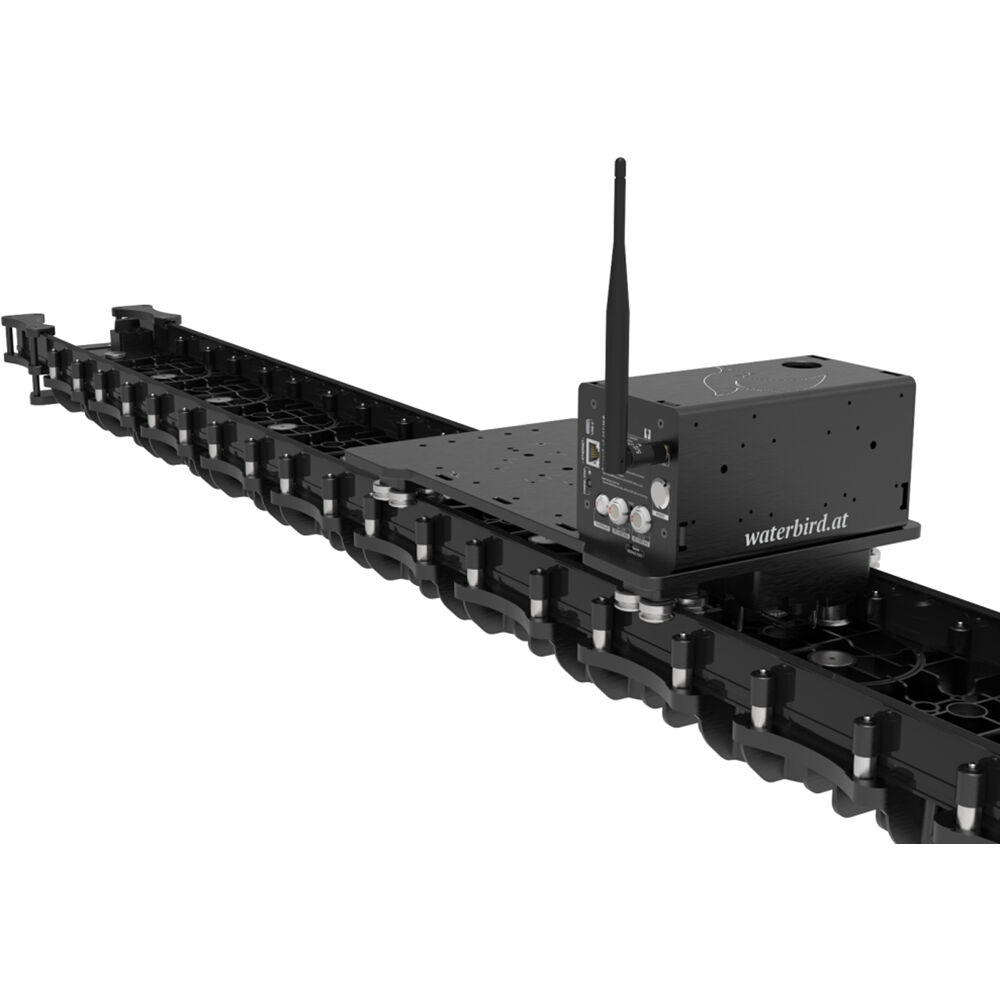

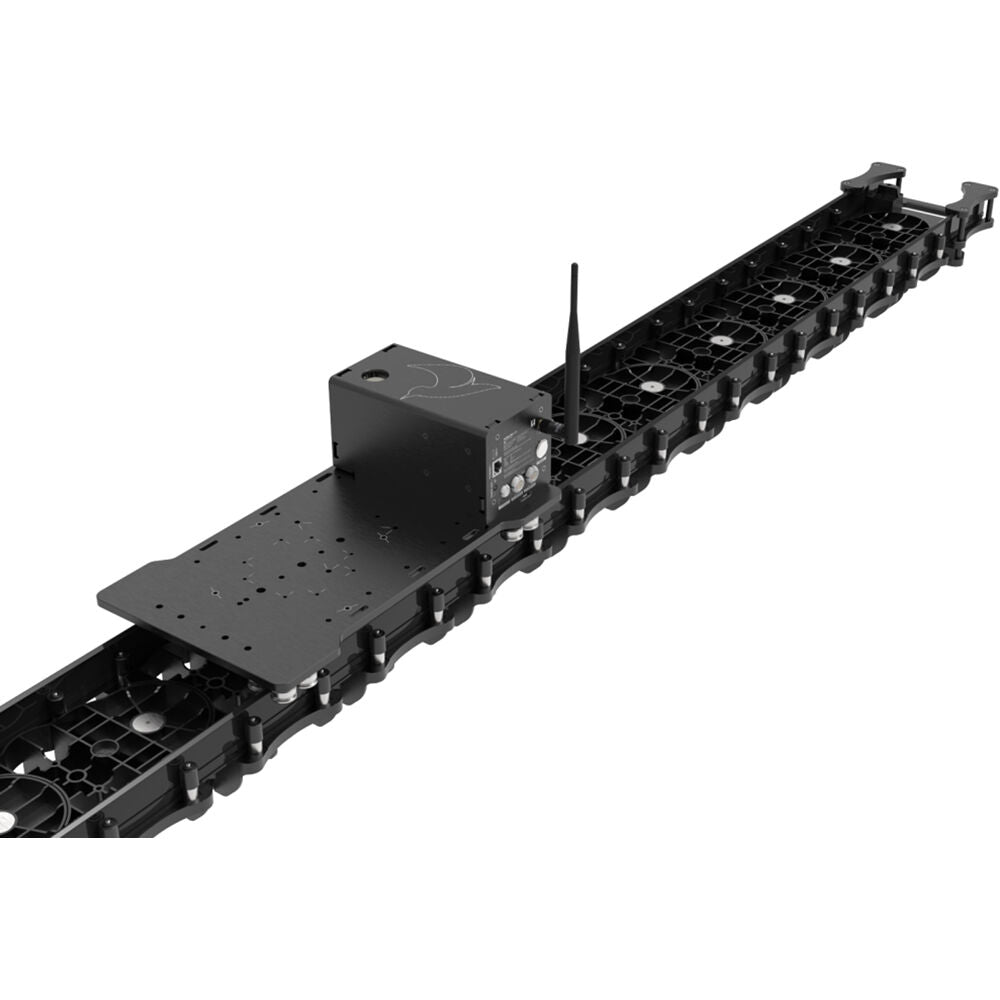

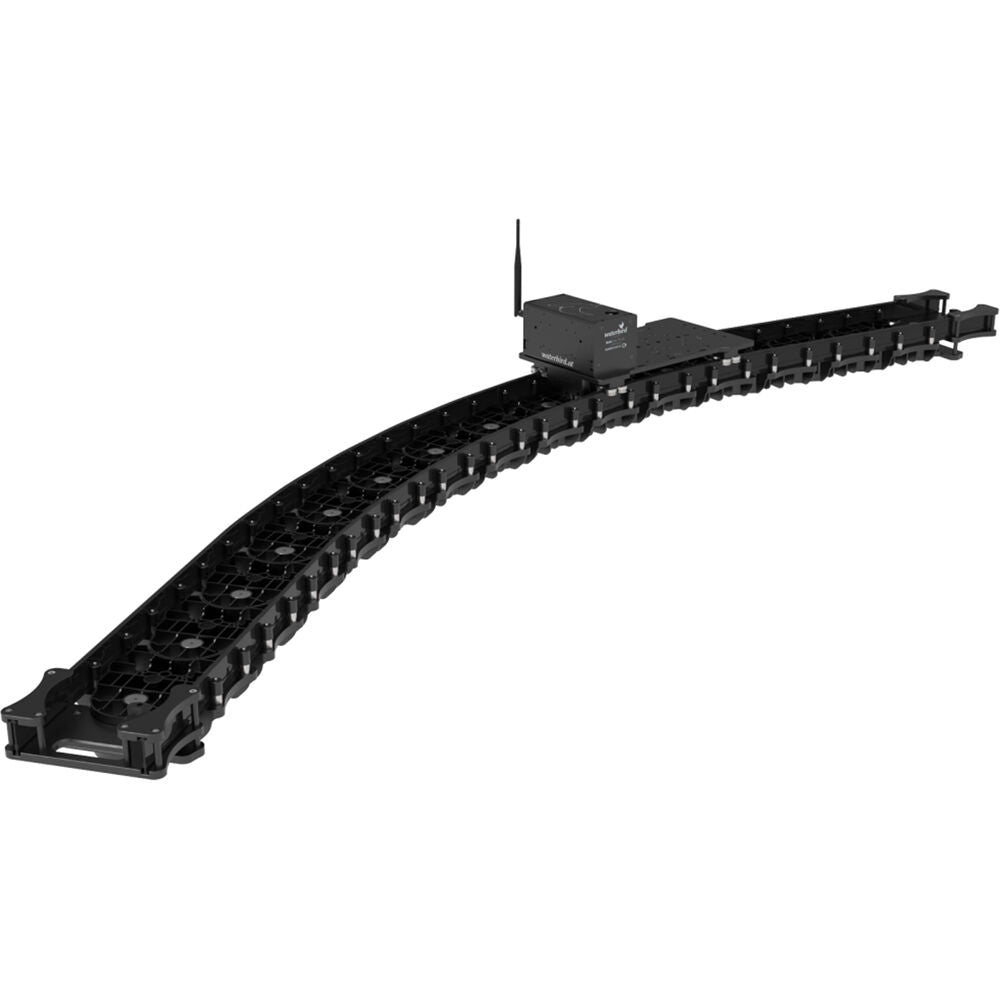

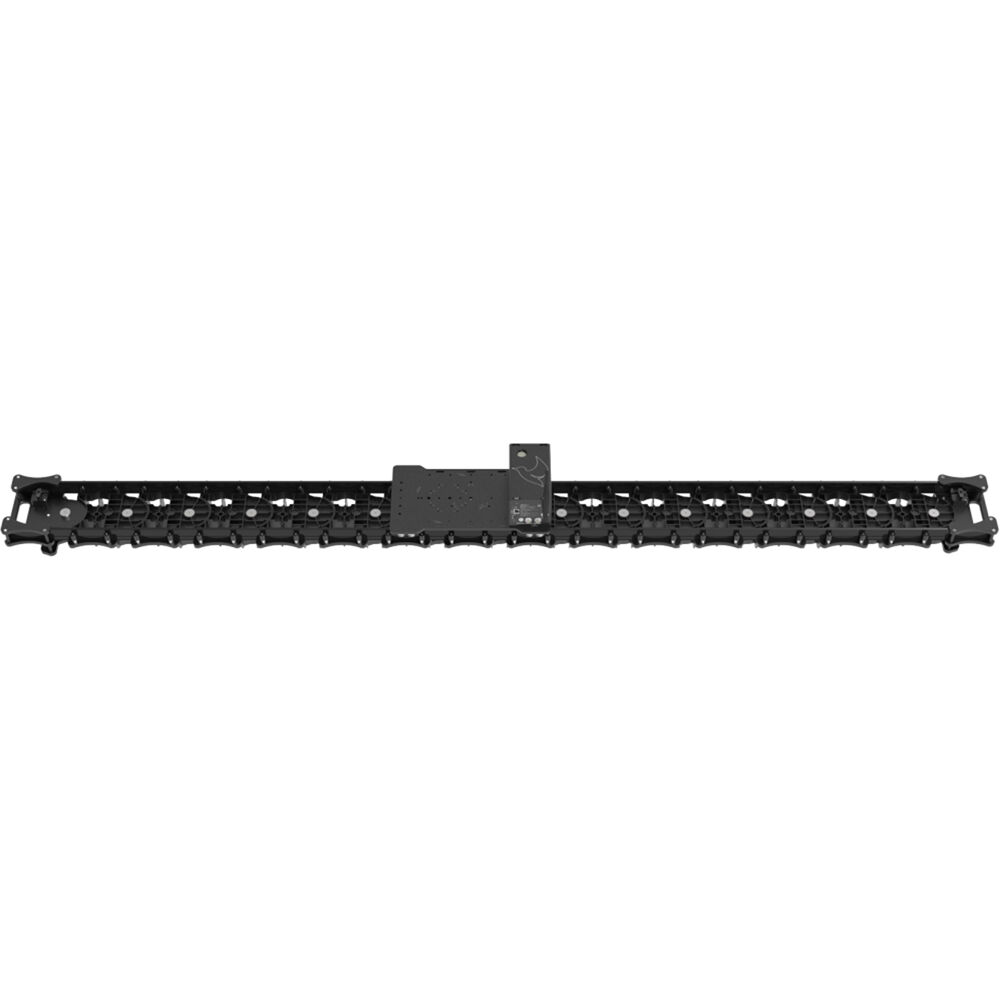

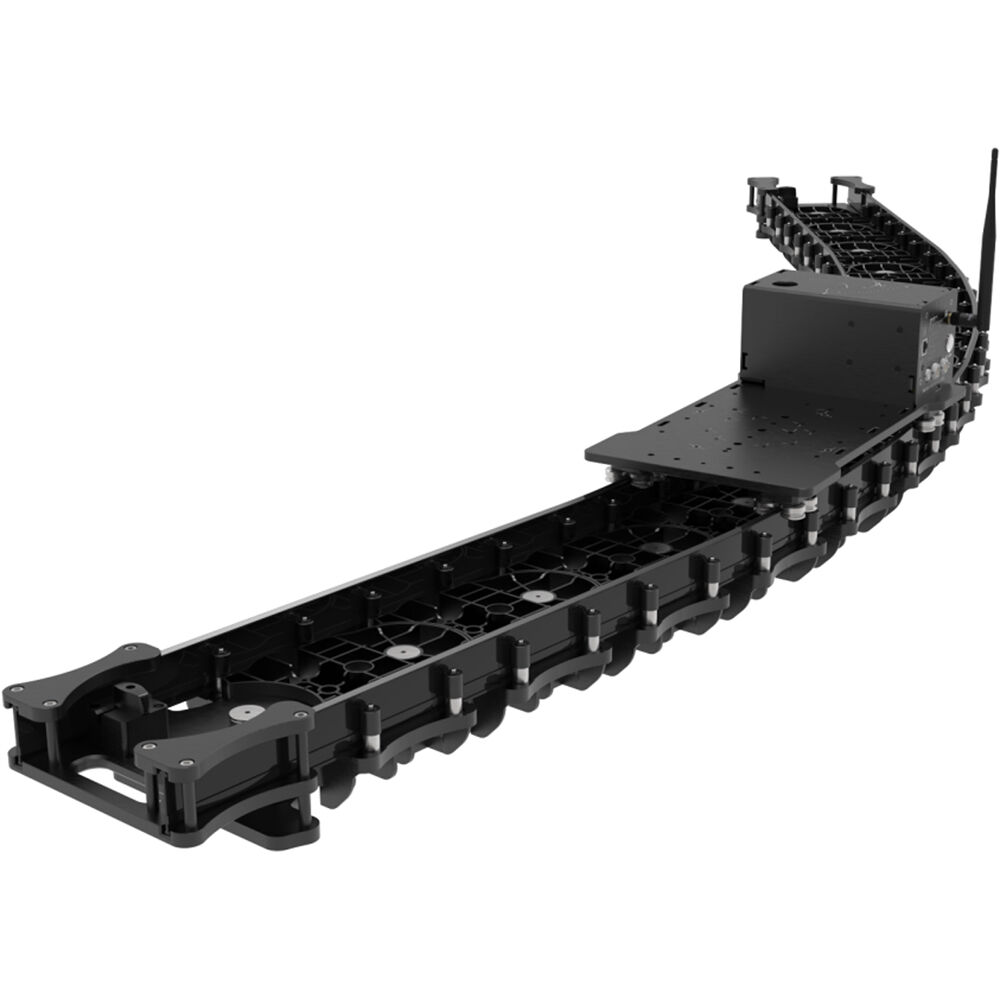

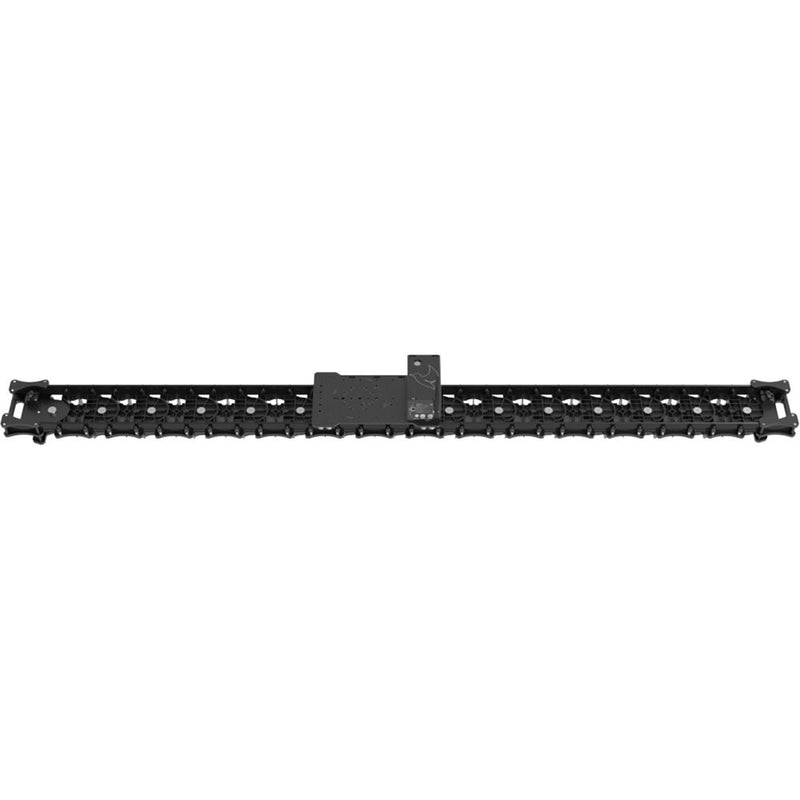

Easily create curved and straight slider track runs for your camera and capture dynamic tracking shots with the MS XL 200 MKII Camera Slider with Slidekamera Ethernet Protocol from Waterbird. The fully adaptable camera slider system offers 6.5' of flexible modular track segments, which may be optionally increased to up to 328', allowing users to set up in straight or curved track runs.

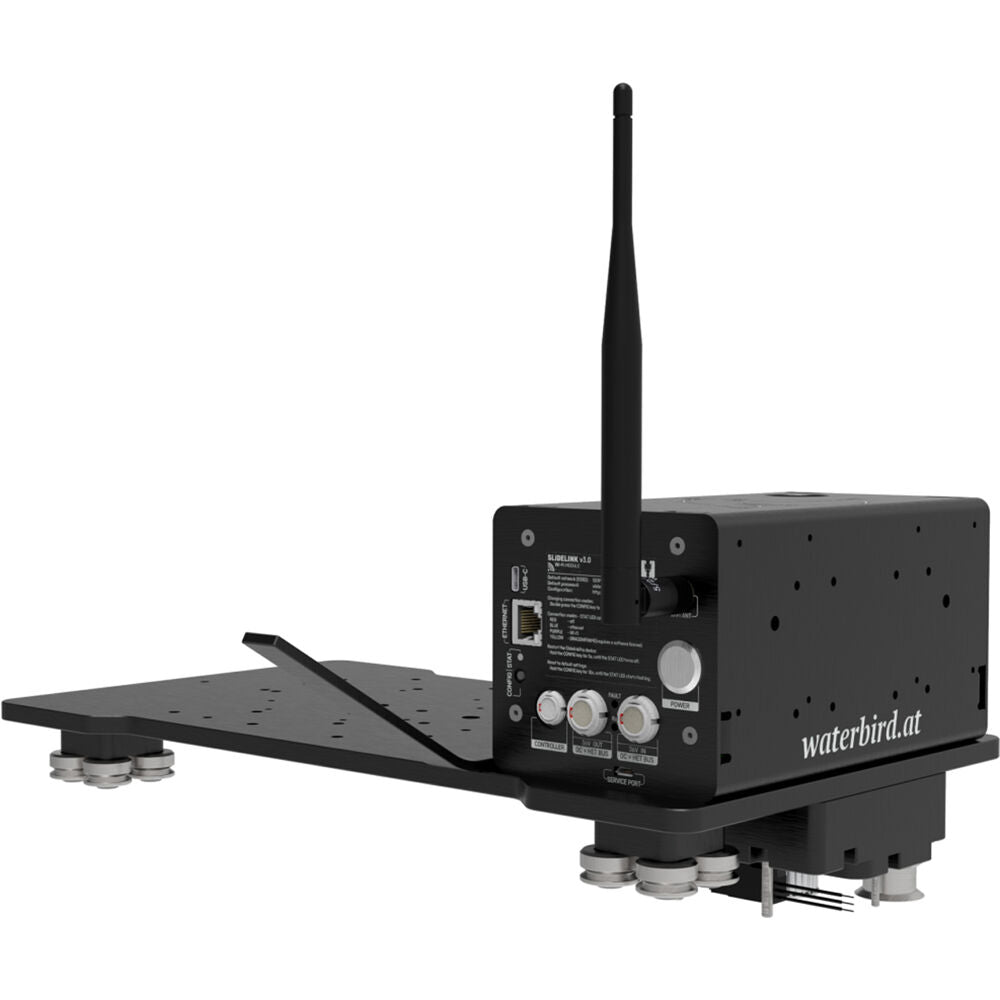

A belt that is secured and tightened at the opposite ends of the track facilitates the smooth carriage movement, and each track segment has a 3/8"-16 threaded hole on the bottom to enable users to use tripods or other supports as needed, based on the characteristics of their specific project. The camera carriage features a cheese plate made of machined CNC aluminum with multiple threaded mounts, which can be customized upon request. Stainless steel connector screws maintain reliability on all the track segments, which may also be mounted on ground plates. This kit includes a motorized MS XL motion carriage controlled via DMX, IP, Panasonic PTZ control, smartphone app, and Bluetooth connectivity, and features the Slidekamera Ethernet protocol for more accuracy and motion stability during moving shots.
The modular system allows easy transport and quick setup. The track can be divided into small segments and the rails can be rolled up for transport.
Each track segment has a 3/8"-16 mounting port on the bottom for tripod mounting to ensure highest stability while the carriage is moving.
In the Box
- Waterbird MS XL 200 MKII Camera Slider with Slidekamera Ethernet Protocol
- XL Motion Controller
- Carriage
- Modular Track Segments (6.5')
- 2 x Track End
Waterbird MS XL MKII Specs
Performance
| Sliding System |
Motorized Slider |
| Load Capacity |
33.1 lb / 15 kg (Horizontal) |
| Travel Distance |
6.6' / 2 m |
| Curve Radius |
39.4" / 100 cm |
| Bubble Level |
No |
Mounting
| Tripod Mounting |
3/8"-16 Female Thread |
Carriage
| Camera Mounting Screw |
3/8"-16 Male |
| Carriage Dimensions |
17.3 x 8.5 x 6.7" / 439 x 215 x 170 mm |
| Carriage Weight |
12.3 lb / 5.6 kg |
Motor
| DC Input Power |
12 to 48 VDC at 200 mA |
| Wireless Connectivity |
Bluetooth |
| Motor Sliding Speed |
55.1 in/s / 140 cm/s |
Physical
| Body Material |
Aluminum, Resin, Stainless Steel |
| Track Length |
6.6' / 2 m |
| Track Width |
7.4" / 187 mm |
| Track Height |
3.1" / 78 mm |
