Description

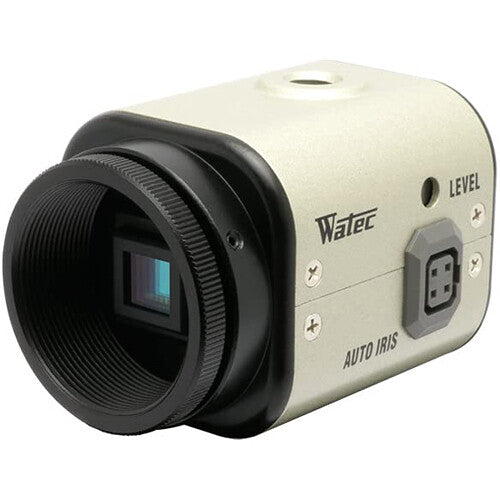

Watec WAT-2500 Overview
Designed for surveillance, machine vision, and medical imaging applications, the WAT-2500 Indoor Analog Box Camera from Watec uses a 1/2.8" progressive scan CMOS sensor to transmit 570 TVL resolution video. It's low-lux rating makes it ideal for low-light situations. The WAT-2500 features a CS mount lens with an adjustable back focus, a DC auto iris, a BNC video output, and NTSC/PAL support.
Suitable for surveillance, machine vision, and medical imaging applications
Minimum illumination of 0.0004 lux ensures visibility in low-light conditions
Internal synchronizing system
2D-DNR/3D-DNR
Vertical flip, horizontal flip, and horizontal/vertical flip mirror images
Additional features include backlight compensation, sharpness, white blemish correction, privacy masking, white balance, digital wide dynamic range, defog, digital zoom, and freeze
Items Included
- Watec WAT-2500 Indoor Analog Box Camera
- Watec WJDC12 12VDC Female Power Connector (Jack)
- Hex Wrench
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Watec WAT-2500 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Output Formats |
Composite:
1945 x 1097 |
| Video I/O |
1x BNC (Composite) Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x DC (12VDC)
|
Imaging
| Lens Mount |
CS
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Day/Night |
Yes
|
Exposure Control
| Shutter Speed |
1/10000 to 1/30 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.0004 Lux
|
Video
| Output Formats |
Composite:
1945 x 1097 |
Interface
| Video I/O |
1x BNC (Composite) Output
|
| Built-In Microphone |
No
|
Sensors & Alarms
| Alarm I/O |
No
|
Power
| Power I/O |
1x DC (12VDC)
|
| Power Consumption |
185 mA (2.22 W)
|
Environmental
| Operating Conditions |
14 to 122°F / -10 to 50°C up to 95% Humidity
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C up to 95% Humidity
|
General
| Weight |
2.8 oz / 79 g (Body Only)
|
Packaging Info
| Package Weight |
0.205 lb
|
| Box Dimensions (LxWxH) |
3.2 x 2.8 x 1.8"
|
