The WF08U series resistors from Walsin are high precision thin metal film chip resistors. These resistors are constructed in a high grade ceramic body (aluminium oxide). The WF08U series resistors are used in medical equipments, measuring instruments, communication devices, computers and printers.
- Resistance range includes E24 & E192 decade values from 4.7ohm to 1Mohm
- EIA 0805 case size
- ±25ppm/°C high performance TCR
- Available in ±0.05%, ±0.1%, ±0.25%, ±0.5% and ±1% tolerance
- Operating temperature range of -55°C to 155°C
- High reliability and stability
- Low current noise
- Continuous working voltage of 100V and rated power of 100mW
Product details
| Resistance:
511kohm
|
| Resistance Tolerance:
± 0.1%
|
| Power Rating:
100mW
|
| Resistor Case / Package:
0805 [2012 Metric]
|
| Resistor Technology:
Thin Film
|
| Resistor Type:
Precision
|
| Product Range:
WF Series
|
| Temperature Coefficient:
± 25ppm/°C
|
| Voltage Rating:
100V
|
| Product Length:
2mm
|
| Product Width:
1.25mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
155°C
|
| Qualification:
-
|
Other details
| Brand |
WALSIN |
| Part Number |
WF08U5113BTL |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

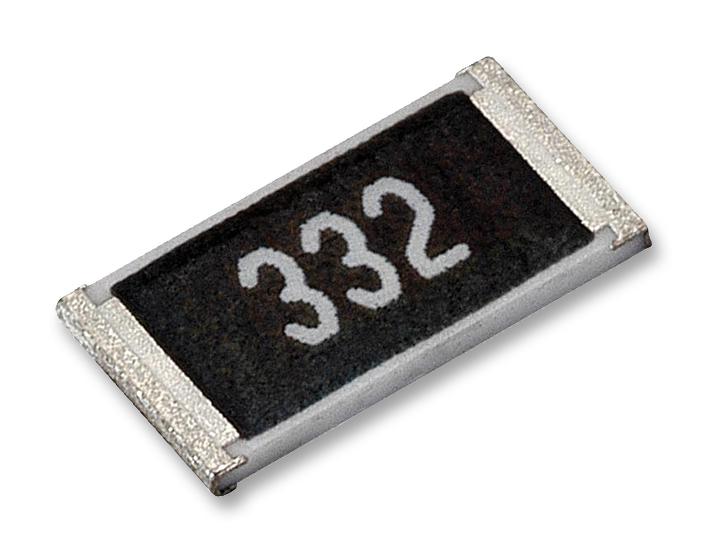

![WALSIN WF08U5113BTL SMD Chip Resistor, 511 kohm, ± 0.1%, 100 mW, 0805 [2012 Metric], Thin Film, Precision](http://www.tanotis.com/cdn/shop/files/abc31c49a96ed14ec67268316cf9ae4b_fb57d655-49ad-4e4c-aefc-e9c9e7d9e93a_{width}x.jpg?v=1706911261)
