![WALSIN WF06U4320BTL SMD Chip Resistor, 432 ohm, 50 V, 0603 [1608 Metric], 62.5 mW, � 0.1%, WF06U Series](http://www.tanotis.com/cdn/shop/products/2447094-40_e6fea72c-8a4b-4594-8cd3-bf76b074531d_{width}x.jpg?v=1575993654)
![WALSIN WF06U4320BTL SMD Chip Resistor, 432 ohm, 50 V, 0603 [1608 Metric], 62.5 mW, � 0.1%, WF06U Series](http://www.tanotis.com/cdn/shop/products/2447094-40_e6fea72c-8a4b-4594-8cd3-bf76b074531d_1024x.jpg?v=1575993654)
| ₹ 16.97 includes GST and import duties. | |
| B2B customers can avail ₹ 2.59 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

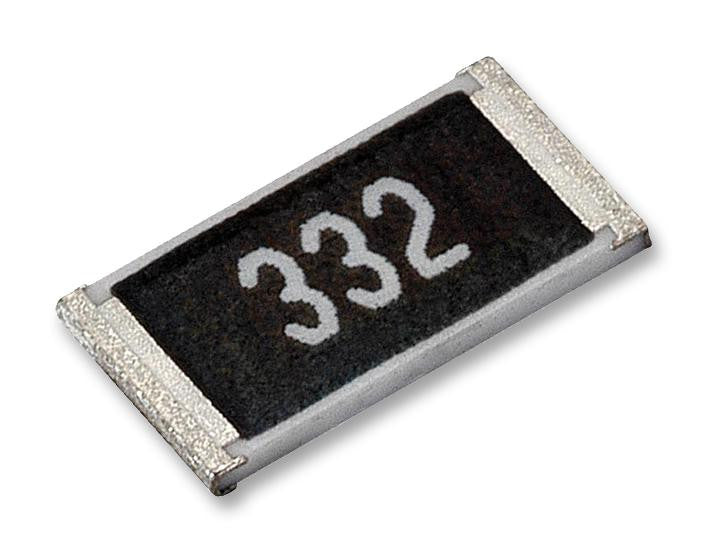

The WF06U series resistors from Walsin are high precision thin metal film chip resistors. These resistors are constructed in a high grade ceramic body (aluminium oxide).
- Resistance range includes E24 & E192 decade values from 4.7ohm to 680Kohm
- EIA 0603 case size
- TCR of <=25ppm/�C
- Available in �0.05%, �0.1%, �0.25%, �0.5%, �1% tolerance
- Operating temperature range of -55�C to 155�C
- High reliability and stability of 0.1%
- Low current noise
- JIS C5201-1 / IEC 60115-1 basic specification
- Continuous working voltage is 50V and rated power is 62.5mW
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Resistance | 432ohm |
| Resistor Case Style | 0603 [1608 Metric] |
| Voltage Rating | 50V |
| Resistor Element Material | Thin Film |
| Resistance Tolerance | � 0.1% |
| Product Range | WF06U Series |
| Automotive Qualification Standard | - |
| Temperature Coefficient | � 25ppm/�C |
| Power Rating | 62.5mW |
| Packaging | Cut Tape |
Other details
| Brand | WALSIN |
| Part Number | WF06U4320BTL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 16.63 |
| 3-5 | ₹ 16.46 |
| 5-10 | ₹ 16.12 |
| 10+ | ₹ 15.78 |
Bulk discount will be automatically applied during checkout based on quantity.
