Description

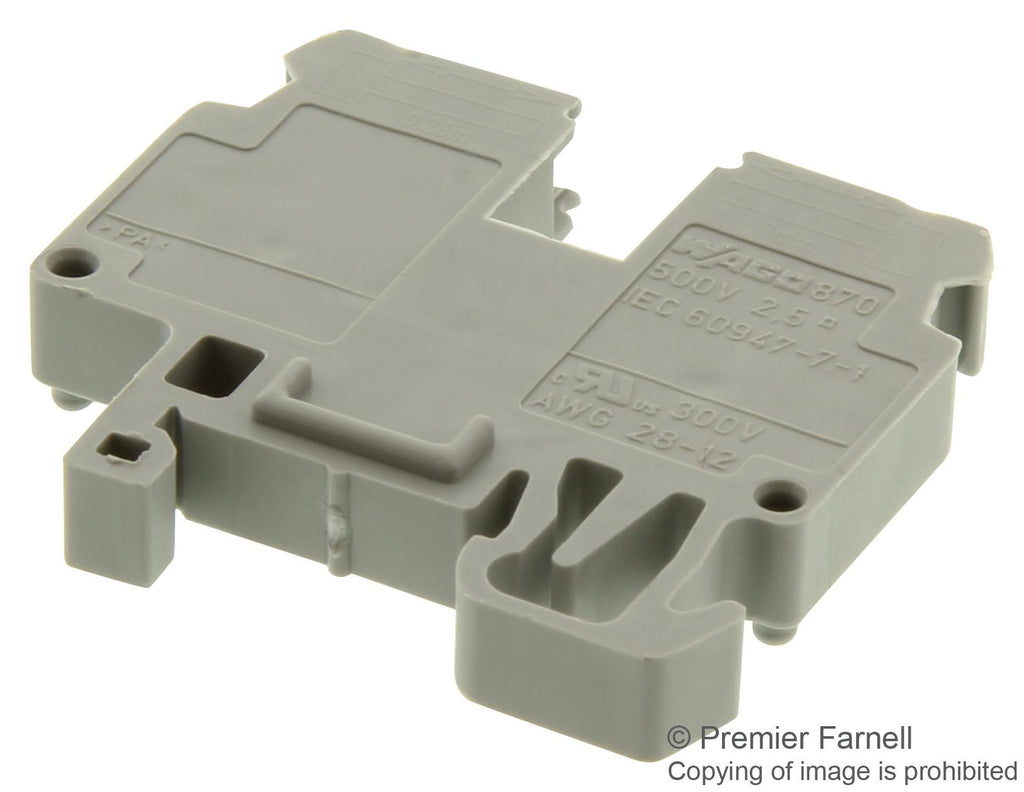

The 870-911 is a 2-conductor grey Through Terminal Block with side marking and front-entry wiring. This terminal block has PA 6.6 insulator and suitable for DIN 15 rail mounting. It accepts 28 to 12AWG wire size.
- Horizontal design
- Cage Clamp� compact connection method
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Clamp |
| Rated Current | 24A |
| No. of Positions | 2Ways |
| Conductor Area CSA | 2.5mm� |
| Product Range | 870 Series |
| No. of Levels | 1 |
| Wire Size AWG Min | 28AWG |
| Rated Voltage | 500V |
Other details
| Brand | WAGO |
| Part Number | 870-911 |
| Quantity | Each |
| Technical Data Sheet EN |  |
