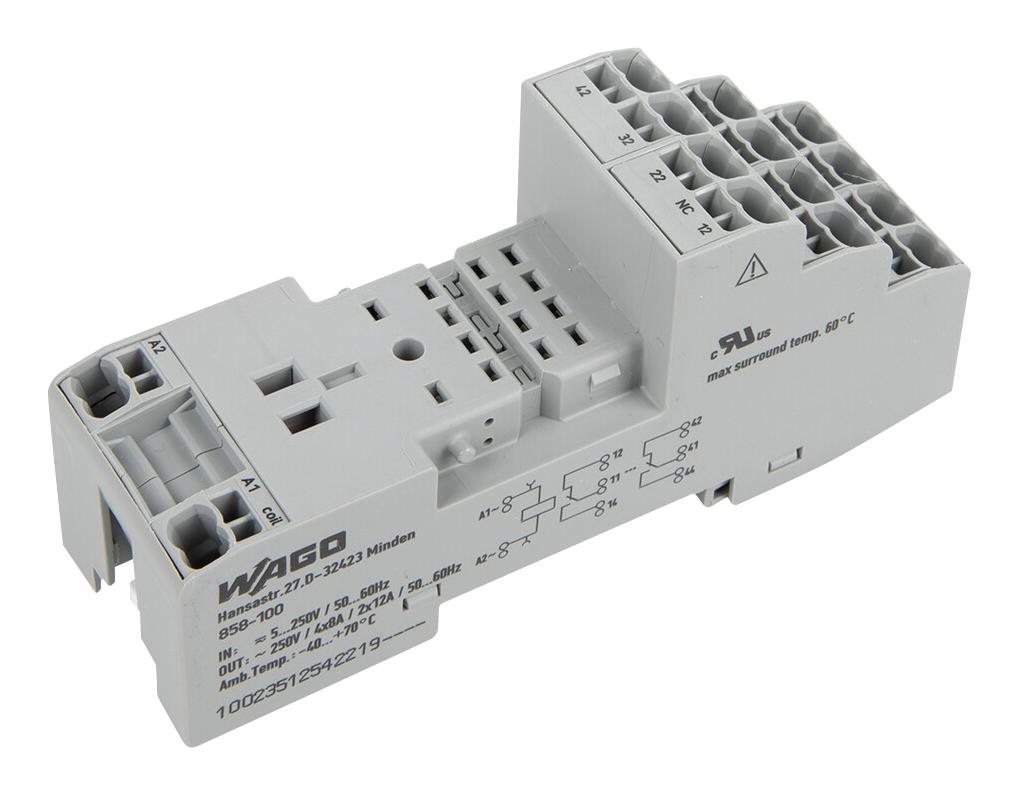

- Relay socket
- Nominal input voltage UN is AC/DC 5 to 250V
- Nominal frequency range from 50 to 60Hz
- Number of changeover/switchover contacts are 4
- 8A (4 x) and 12A (2 x) limiting continuous current
- Switching voltage (max.) is 250VAC/DC, ambient temperature (operation at UN) range from -40 to 70°C
- IP20 rated, DIN-35 rail mounting
- 0.34 to 1.5mm² solid conductor/fine-stranded conductor
- Dimension is 31mm width x 97mm height, 39mm depth from upper-edge of DIN-rail
- Standards/specifications are EN 61010-2-201, UR
Product details
Other details
| Brand |
WAGO |
| Part Number |
858-100 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
