Description
Product Overview

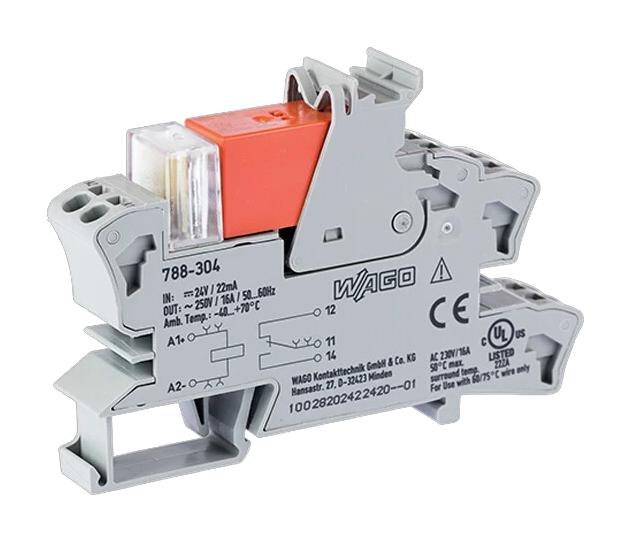

788-304 is a relay module. It provides reinforced insulation between coil and contacts, to protect the relay coils and contacts and inductive loads must be dampened with an effective protection circuit.
- Nominal input voltage UN is 24VDC ±10%
- Nominal input current at UN is 19mA
- Single changeover/switchover contact, AgNi 90/10 contact material (relay)
- 16A limiting continuous current, maximum inrush current (resistive) is (AC) 30A/4s
- Switching voltage (max.) is 250VAC, ambient temperature (operation at UN) range from -40 to 70°C
- 8ms typ pull in time, 6ms typ drop out time, 6ms typ bounce time
- 30 x 10? switching operations, red LED status indicator
- IP20 protection, 250V rated voltage, 4kV rated surge voltage
- DIN-35 rail mounting type, gray color, ambient temperature (operation at UN) -40 to+70 °C
- EN 61010-2-201, EN 61810-1, EN 61373, UL 508 (max. 10A) standards
Notes
Reinforced insulation between coil and contacts. To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Product details
Other details
| Brand | WAGO |
| Part Number | 788-304 |
| Quantity | Each |
| Technical Data Sheet EN |  |
