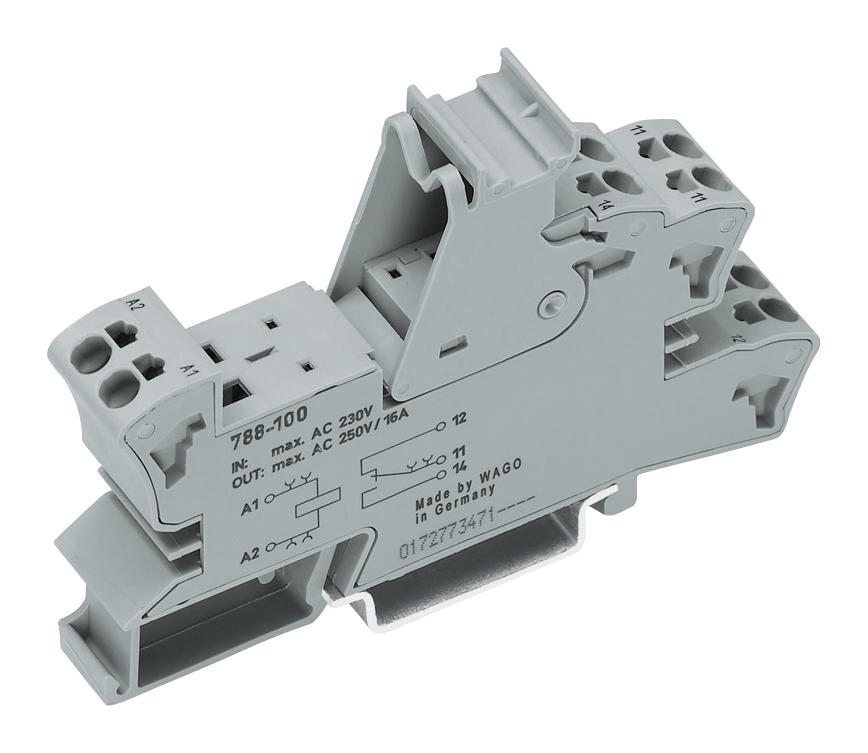

- Relay socket
- Nominal input voltage UN is AC/DC 230V
- Nominal frequency range from 50 to 60Hz
- Number of changeover/switchover contacts are 2
- 8A limiting continuous current
- Switching voltage (max.) is 300VAC, ambient temperature (operation at UN) range from -40 to 70°C
- IP20 rated, DIN-35 rail mounting, grey colour
- 0.34 to 2.5mm² solid conductor/fine-stranded conductor
- Dimension is 15mm width x 86mm height, 54mm depth from upper-edge of DIN-rail
- Standard/specification is EN 61010-2-201
Product details
Other details
| Brand |
WAGO |
| Part Number |
788-102 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
