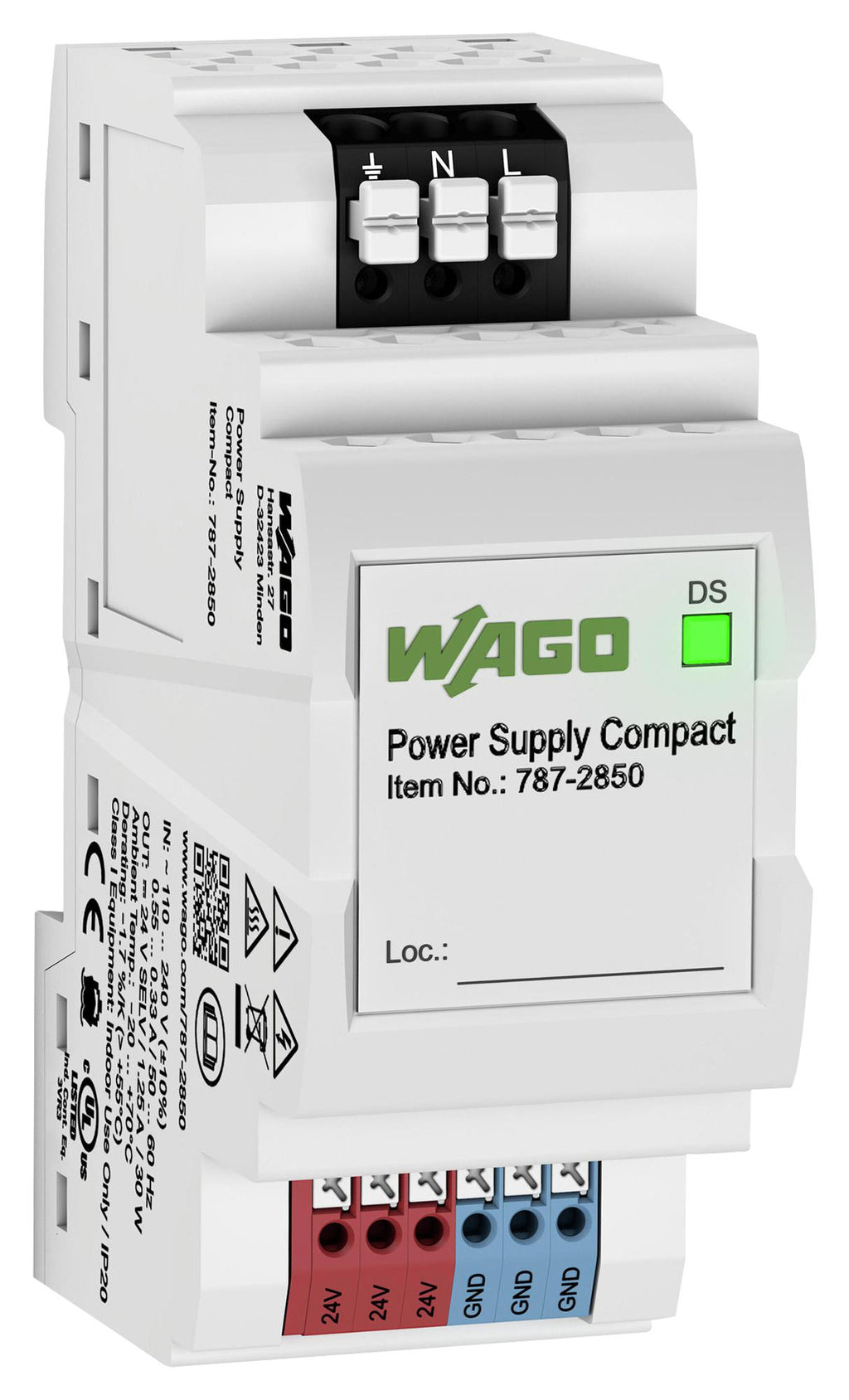

787-2850 is a compact, 1-phase power supply. It has a stepped profile for installation in standard distribution boards. Suitable for both parallel and series operation. Electrically isolated output voltage (SELV/PELV) per EN 61010-2-201/UL 61010-2-201. Meets EN 61204-3, EN 61010-1, EN 61010-2-201, cULus 61010-1, cULus 61010-2-201, DNV.
- 24VDC output voltage, 1.25A output current
- Connection technology with push-in CAGE CLAMP®
- 1 x AC 110 to 240V nominal input voltage Ui nom
- 1 x status indication LED (green) signalling, green LED (Uo) operation status indicator
- Efficiency (typ) is 88% and isolation voltage (pri.-sec.) is 3920V
- Protection class I, protection type IP20 per EN 60529
- Short-circuit-protection, open-circuit-proof, parallel and series operation
- Push-in CAGE CLAMP® connection technology, DIN-35 rail mounting type
- Ambient temperature (operation) range from -25 to +70°C
- Width is 36mm, height is 90mm, depth is 62mm
Product details
| Power Supply Applications:
-
|
| No. of Outputs:
1 Output
|
| Output Power Max:
30W
|
| Output Voltage - Output 1:
24V
|
| Output Current - Output 1:
1.25A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
100V AC to 264V AC
|
| Power Supply Output Type:
Fixed
|
| Product Range:
-
|
Other details
| Brand |
WAGO |
| Part Number |
787-2850 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
