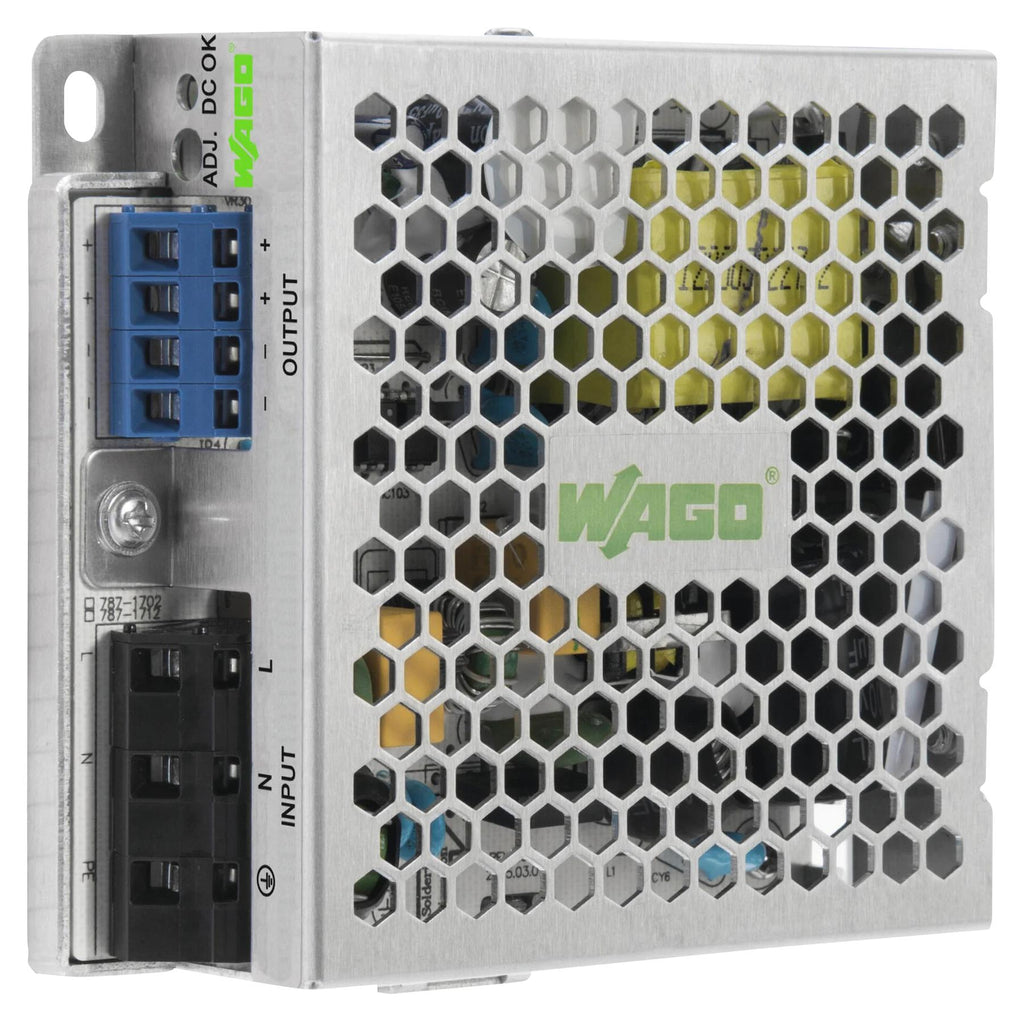

787-1701 is a eco, 1-phase switched-mode power supply. It features natural convection cooling when horizontally mounted. Suitable for both parallel and series operation. Electrically isolated output voltage (SELV) per EN 60335-1; PELV per EN 60204. It is DIN-35 rail mountable in different positions and features direct installation on a mounting plate via cable grip. Meets EN 61204-3, EN 60335-1, EN 61558-2-6, EN 62368-1.
- 12VDC output voltage, 2A output current, DC-OK LED
- Encapsulated for use in control cabinets
- 1 x AC 100 to 240V nominal input voltage Ui nom
- 1 x LED DC OK (green) signalling, green LED (Uo) operation status indicator
- Efficiency (typ) is 80% (230VAC, 2ADC) and isolation voltage (pri.-sec.) is 4.242KVDC
- Protection class I, protection type IP20 per EN 60529
- Short-circuit-protected, open-circuit-proof, parallel and series operation
- CAGE CLAMP® connection technology, DIN-35 rail screw mounting type
- Ambient temperature (operation) range from -20 to +60°C
- Width is 30mm, height is 90mm, depth is 99mm
Product details
| Power Supply Applications |
ITE & Household |
| No. of Outputs |
1 Output |
| Output Power Max |
24W |
| Output Voltage - Output 1 |
12V |
| Output Current - Output 1 |
2A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Output Current - Output 4 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Power Supply Output Type |
Fixed |
| Product Range |
- |
Other details
| Brand |
WAGO |
| Part Number |
787-1701 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
