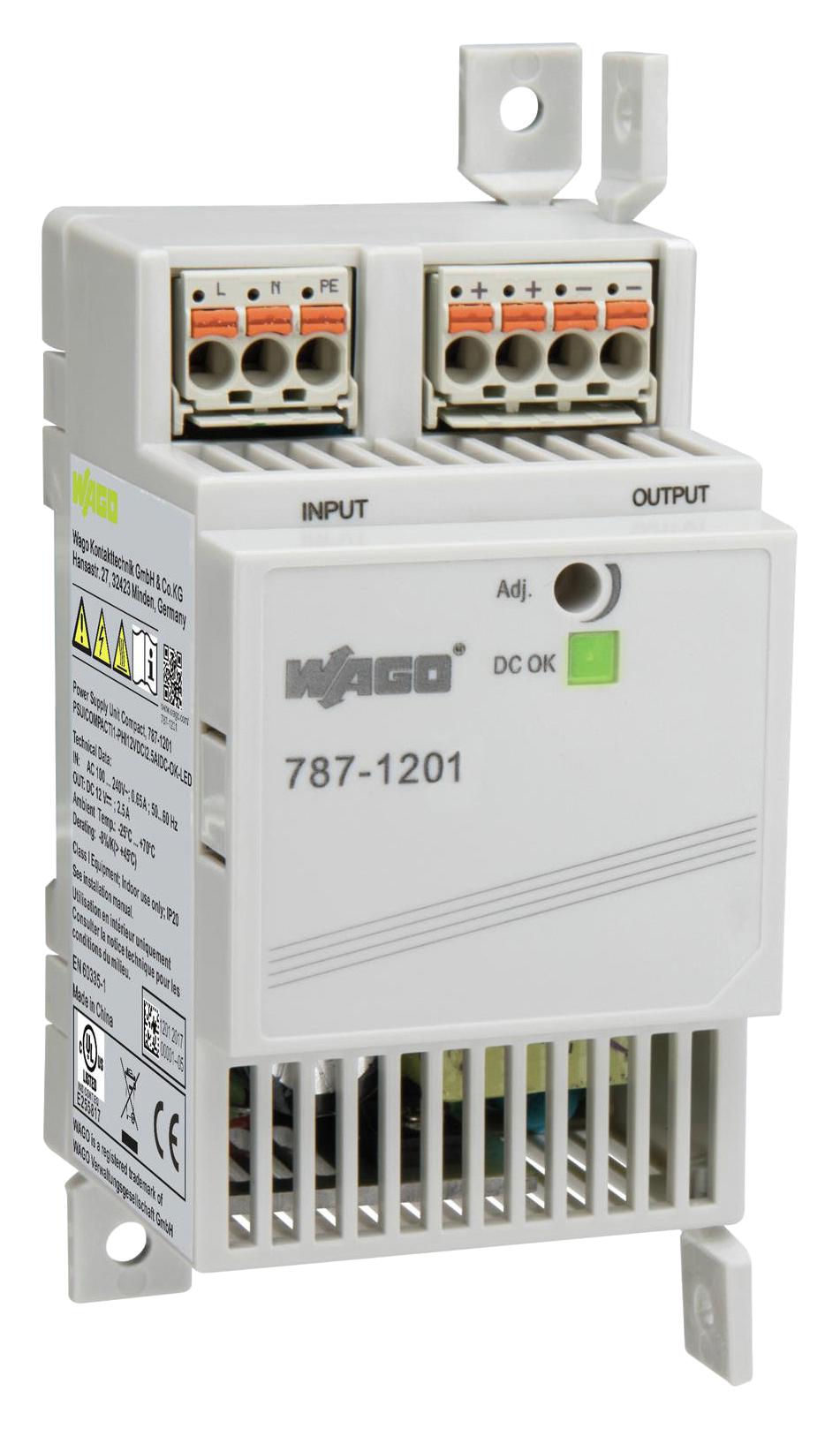

787-1201 is a compact, 1-phase switched-mode power supply. It has a stepped profile for installation in standard distribution boards. Suitable for both parallel and series operation. Removable front panel and screw mounts for alternative installation in distribution boxes or devices. Electrically isolated output voltage (SELV) per EN 60335-1; PELV per EN 60204. Meets EN 61204-3, EN 60335-1, UL 508.
- 12VDC output voltage, 2.5A output current, DC-OK LED
- Pluggable picoMAX® connection technology (tool-free)
- 1 x AC 100 to 240V, DC 140 to 340V nominal input voltage
- 1 x LED DC OK (green) signalling, green LED (Uo) operation status indicator
- Efficiency (typ) is 88% (230VAC, nominal load), 87.5% (110VAC, nominal load)
- Protection class I, protection type IP20 per EN 60529
- Short-circuit-protection, open-circuit-proof, parallel and series operation
- Push-in CAGE CLAMP® connection technology, DIN-35 rail mounting type
- Ambient temperature (operation) range from -25 to +70°C (device starts at -40°C (type-tested))
- Width is 54mm, height is 90mm, depth is 56mm
Product details
| Power Supply Applications |
ITE & Household |
| No. of Outputs |
1 Output |
| Output Power Max |
30W |
| Output Voltage - Output 1 |
12V |
| Output Current - Output 1 |
2.5A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Output Current - Output 4 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Power Supply Output Type |
Adjustable, Fixed |
| Product Range |
- |
Other details
| Brand |
WAGO |
| Part Number |
787-1201 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
