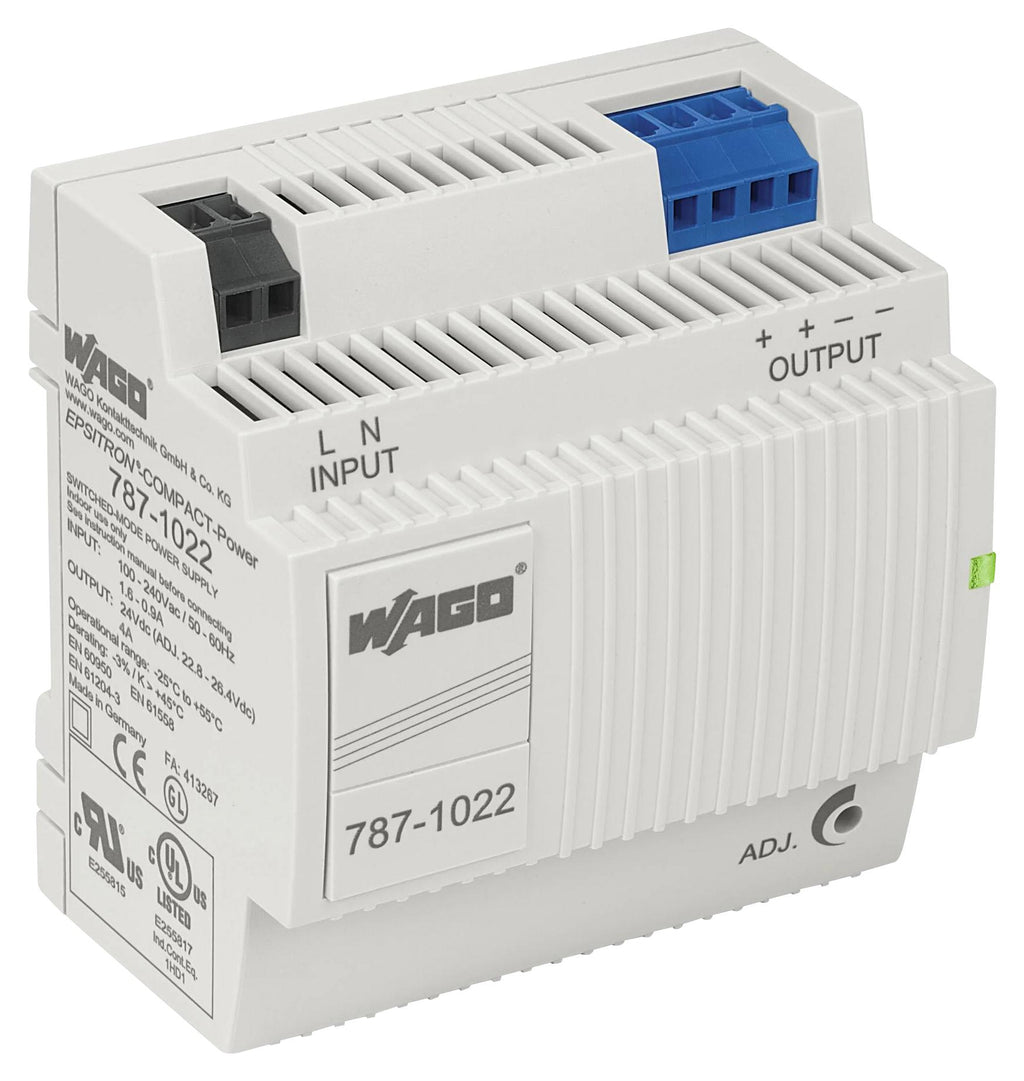

787-1022 is a compact, 1-phase switched-mode power supply. It features natural convection cooling when horizontally mounted. It has a stepped profile and ideal for distribution boards/boxes. Suitable for both parallel and series operation. Electrically isolated output voltage (SELV) per EN 61010-2-201/UL 60950-1; PELV per EN 60204. Meets EN 61010-1, EN 61010-2-201, EN 61204-3, UL 60950-1, UL 508 and DNV standards.
- 24VDC output voltage, 4A output current
- Overhead mounting is possible with derating
- 1 x AC 100 to 240V nominal input voltage
- 1 x status indication LED (green) signalling, green LED (Uo) operation status indicator
- Efficiency (typ) is 88% and isolation voltage (pri.-sec.) is 4.242KVDC
- Protection class II, protection type IP20 per EN 60529
- Short-circuit-protection, open-circuit-proof, parallel and series operation
- CAGE CLAMP® connection technology, DIN-35 rail mounting type
- Ambient temperature (operation) range from -25 to +60°C (device starts at -40°C (type-tested))
- Width is 90mm, height is 89mm, depth is 59mm
Product details
| Power Supply Applications:
ITE & Laboratory Equipment
|
| No. of Outputs:
1 Output
|
| Output Power Max:
96W
|
| Output Voltage - Output 1:
24V
|
| Output Current - Output 1:
4A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
85V AC to 264V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
-
|
Other details
| Brand |
WAGO |
| Part Number |
787-1022 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
