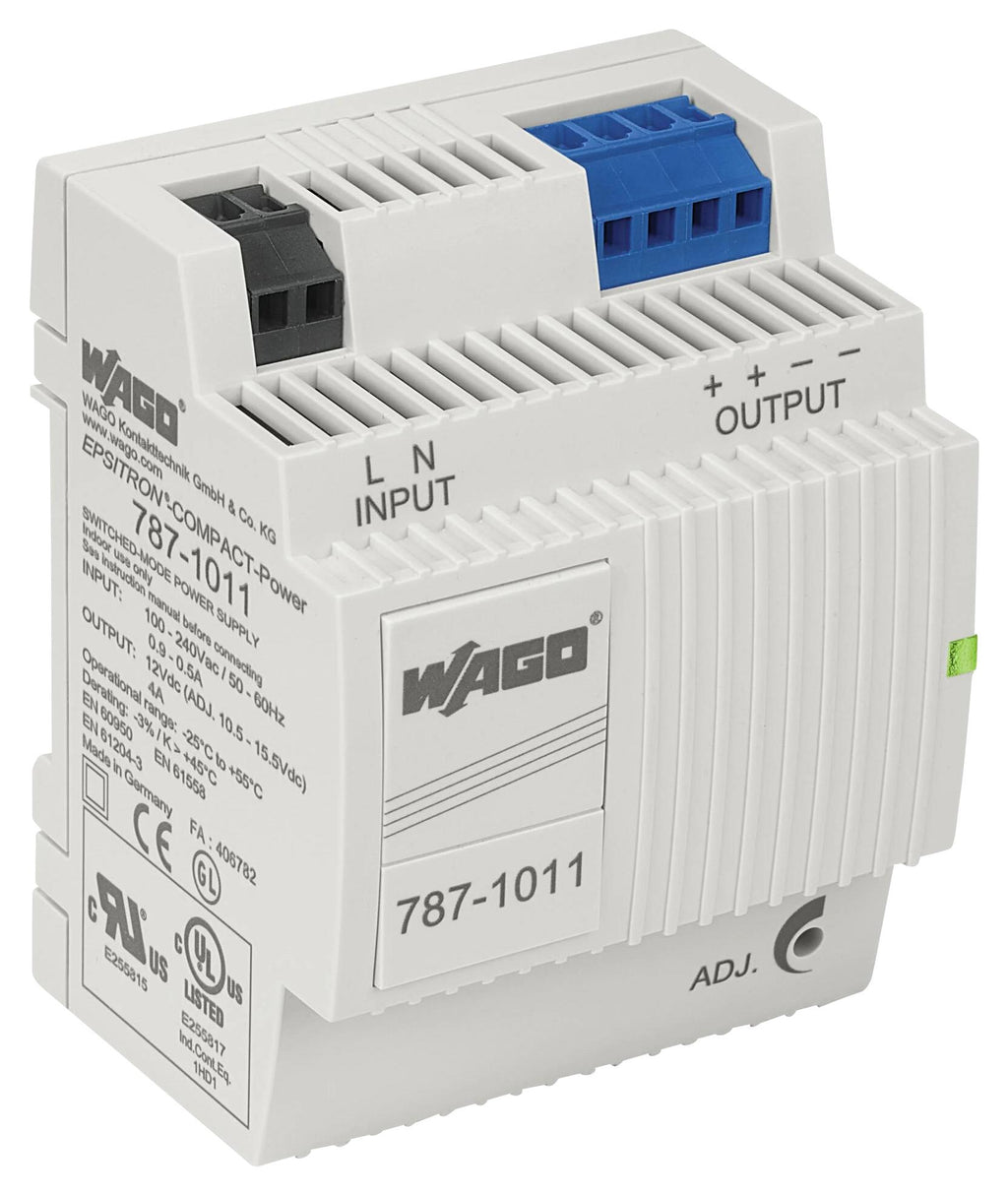

787-1011 is a compact, 1-phase switched-mode power supply. It features natural convection cooling when horizontally mounted. It has a stepped profile and ideal for distribution boards/boxes. Suitable for both parallel and series operation. Electrically isolated output voltage (SELV) per EN 61010-2-201/UL 60950-1; PELV per EN 60204. Meets EN 61010-1, EN 61010-2-201, EN 61204-3, UL 60950-1, UL 508 and DNV standards.
- 12VDC output voltage, 4A output current
- Overhead mounting is possible with derating
- 1 x AC 100 to 240V nominal input voltage
- 1 x status indication LED (green) signalling, green LED (Uo) operation status indicator
- Efficiency (typ) is 85% and isolation voltage (pri.-sec.) is 4.242KVDC
- Protection class II, protection type IP20 per EN 60529
- Short-circuit-protection, open-circuit-proof, parallel and series operation
- CAGE CLAMP® connection technology, DIN-35 rail mounting type
- Ambient temperature (operation) range from -25 to +60°C (device starts at -40°C (type-tested))
- Width is 72mm, height is 89mm, depth is 59mm
Product details
| Power Supply Applications |
ITE & Laboratory Equipment |
| No. of Outputs |
1 Output |
| Output Power Max |
48W |
| Output Voltage - Output 1 |
12V |
| Output Current - Output 1 |
4A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Output Current - Output 4 |
- |
| Input Voltage VAC |
85V AC to 264V AC |
| Power Supply Output Type |
Adjustable, Fixed |
| Product Range |
- |
Other details
| Brand |
WAGO |
| Part Number |
787-1011 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
