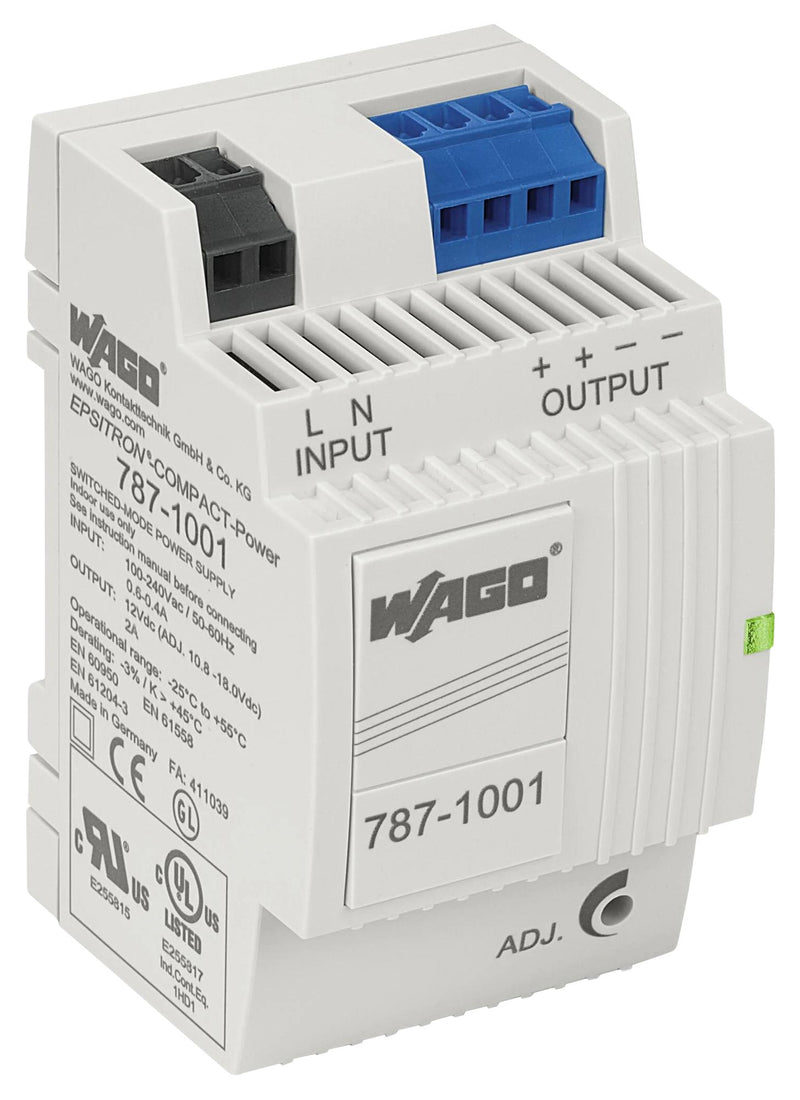

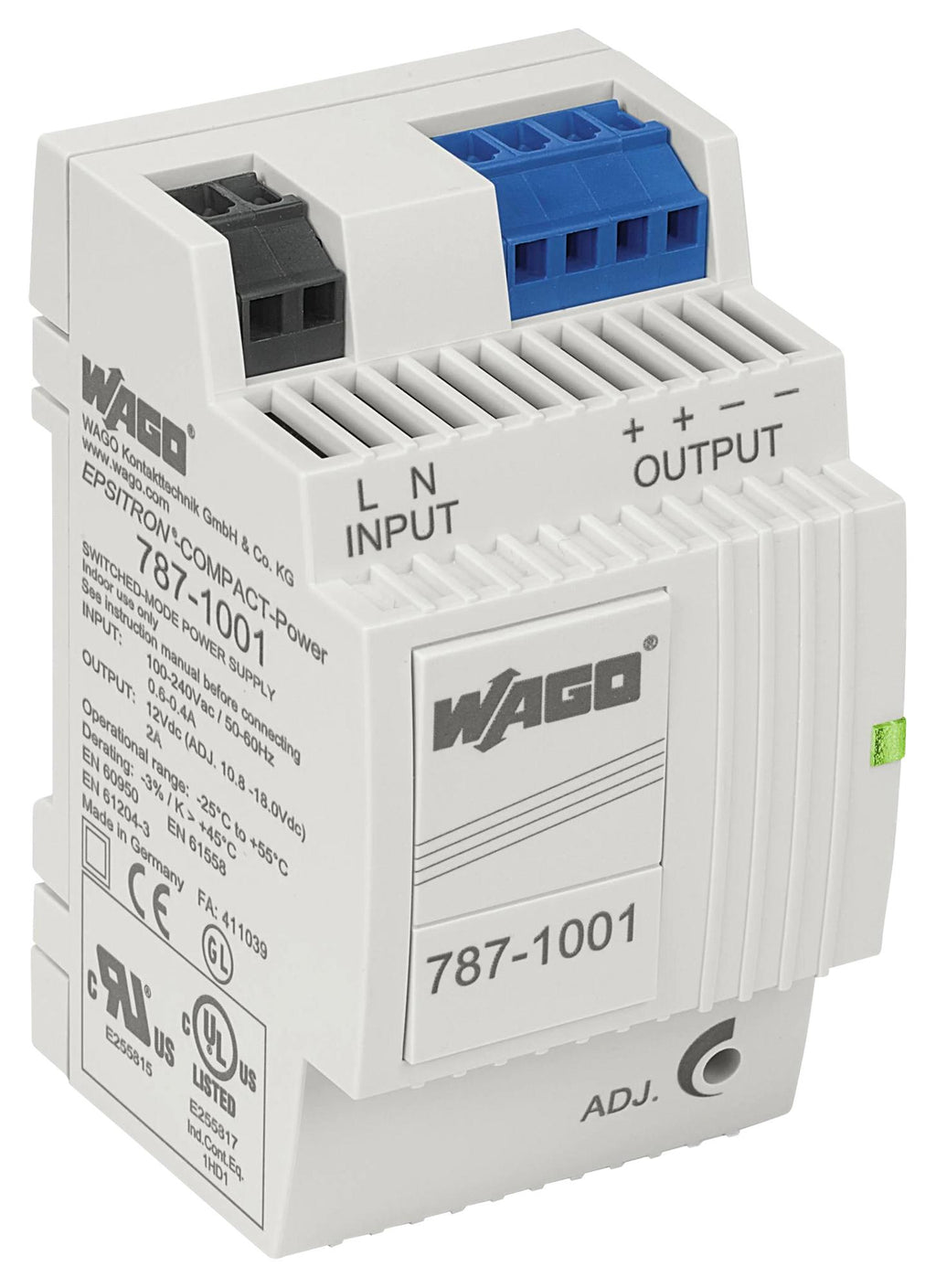

787-1001 is a compact, 1-phase switched-mode power supply. It features natural convection cooling when horizontally mounted. It has a stepped profile and ideal for distribution boards/boxes. Suitable for both parallel and series operation. Electrically isolated output voltage (SELV) per EN 61010-2-201/UL 60950-1; PELV per EN 60204. Meets EN 61010-1, EN 61010-2-201, EN 61204-3, UL 60950-1, UL 508 and DNV standards.
- 12VDC output voltage, 2A output current
- Overhead mounting is possible with derating
- 1 x AC 100 to 240V nominal input voltage
- 1 x status indication LED (green) signalling, green LED (Uo) operation status indicator
- Efficiency (typ) is 80% and isolation voltage (pri.-sec.) is 4.242KVDC
- Protection class II, protection type IP20 per EN 60529
- Short-circuit-protection, open-circuit-proof, parallel and series operation
- CAGE CLAMP® connection technology, DIN-35 rail mounting type
- Ambient temperature (operation) range from -25 to +60°C (device starts at -40°C (type-tested))
- Width is 54mm, height is 89mm, depth is 59mm
Product details
Power Supply Applications |
ITE & Laboratory Equipment |
No. of Outputs |
1 Output |
Output Power Max |
24W |
Output Voltage - Output 1 |
12V |
Output Current - Output 1 |
2A |
Output Voltage - Output 2 |
- |
Output Current - Output 2 |
- |
Output Voltage - Output 3 |
- |
Output Current - Output 3 |
- |
Output Voltage - Output 4 |
- |
Output Current - Output 4 |
- |
Input Voltage VAC |
85V AC to 264V AC |
Power Supply Output Type |
Adjustable, Fixed |
Product Range |
- |
Other details
Brand |
WAGO |
Part Number |
787-1001 |
Quantity |
Each |
Technical Data Sheet EN |
|
