- 20.7 x 11.7" Active Area
- 2048 Levels of Pen Pressure Sensitivity
- Biometric Signature Capturing
- DVI-I Video In/Out
- USB 2.0 Connectivity
- 4 Programmable ExpressKeys
- Includes Pen with Eraser
- Includes Adjustable Stand
- Windows & Mac Compatible

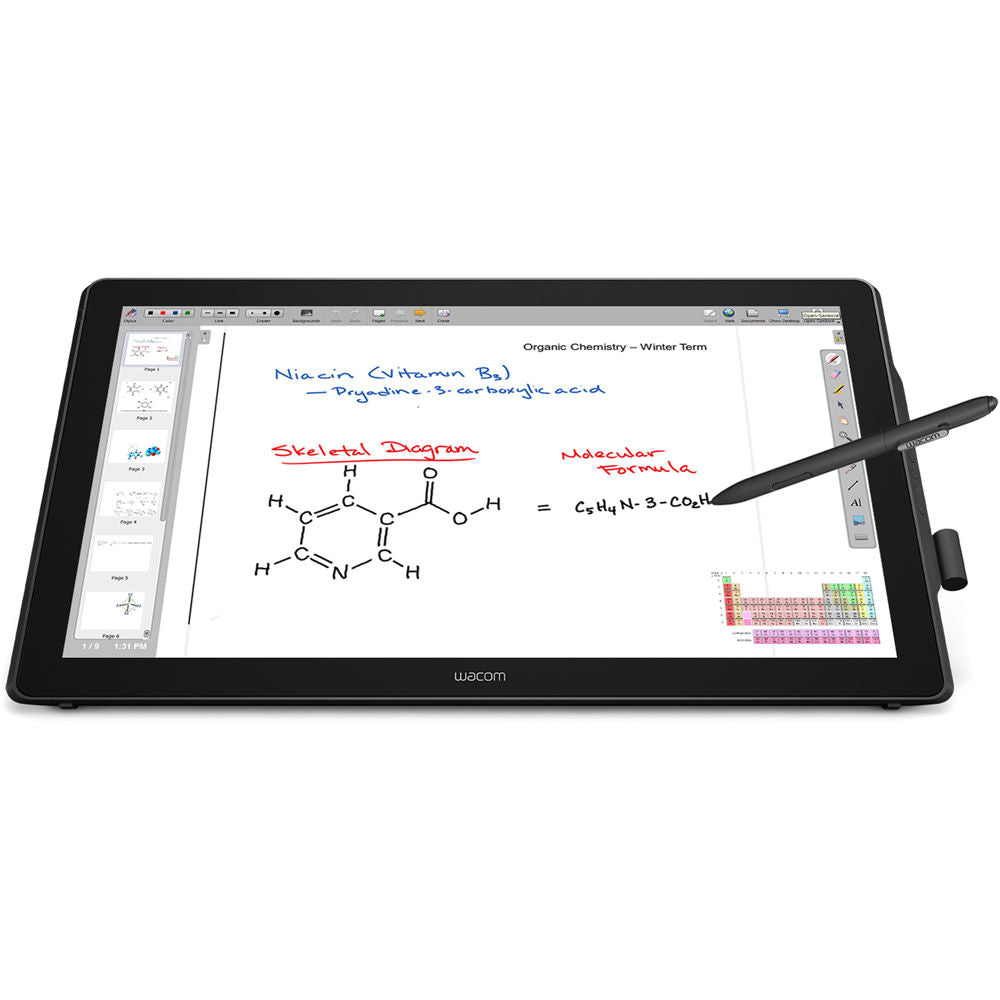

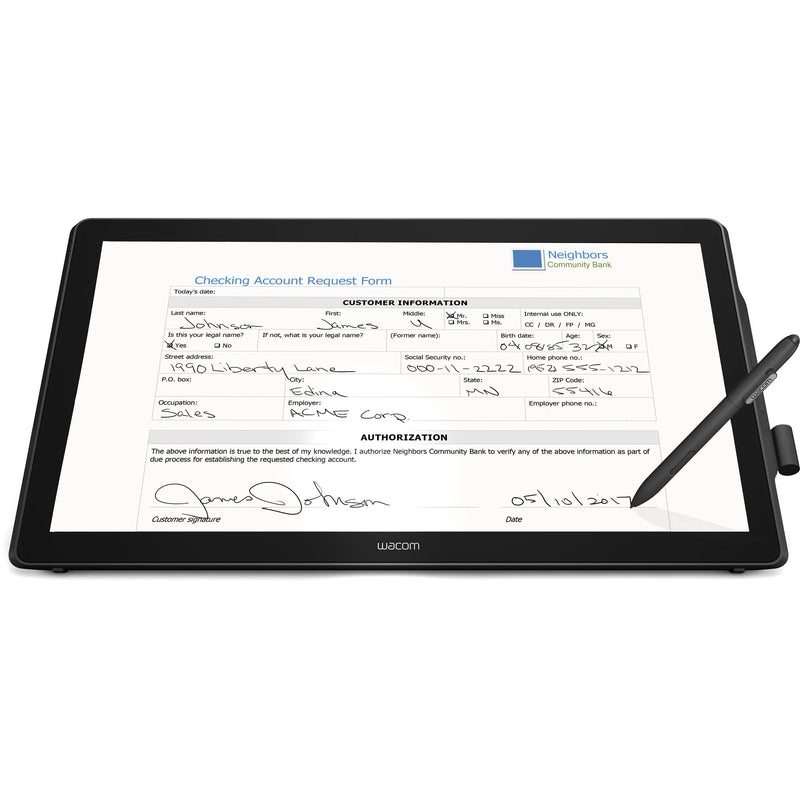

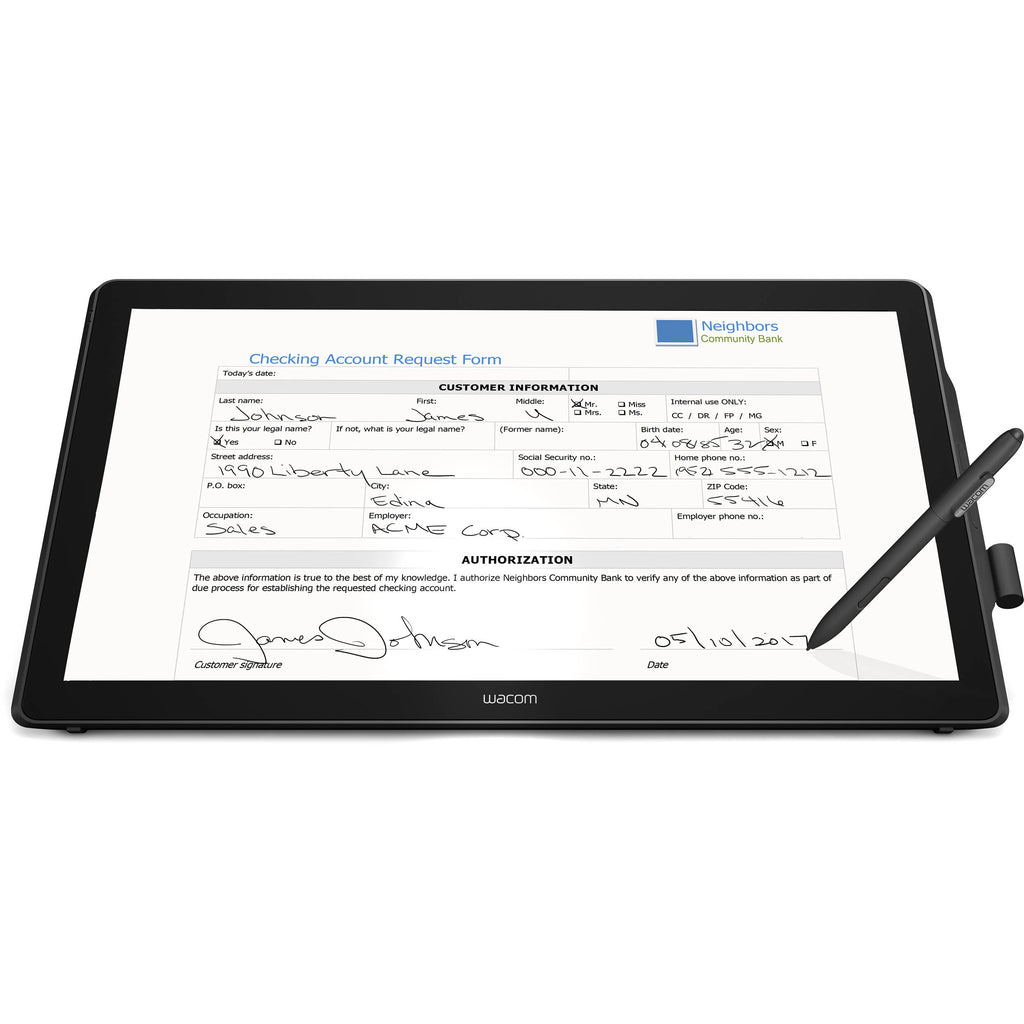

The DTK-2451 Full-HD Pen Display from Wacom has an active area of 23.8", providing a comfortable work surface to view and sign documents, as well as to annotate and control presentations. Featuring 2048 levels of pen pressure sensitivity, this pen display distinguishes between a wide range of pen strokes�from very light to heavy�and captures biometric data for user identification. The multi-touch screen supports common touch gestures and provides easy, intuitive navigation.
The display's communication interface includes a USB 2.0 port, as well as DVI-I input & output ports for analog and digital video connections. Four ExpressKeys allow you to customize the pen display, providing faster access to the functions you need most often. The included stand is angle-adjustable to suit your preferred working position and a variety of working environments.
- Works on both Windows and Mac OS
- 23.8" LCD panel offers a large surface and wide viewing angle
- 2048 levels of pen pressure for precise drawing, writing, and annotating
- Enhanced biometric signature capturing
- DVI-I video in/out for support of analog and digital connections
- Adjustable stand supports multiple angles
- Standard VESA mounting for use with 3rd party stands and arms
UPC: 753218987082
In the Box
Wacom DTK-2451 23.8" Full-HD Pen Display
Display Stand Pen Pen Holder Pen Tether DVI-D Cable DVI-I to VGA Cable USB Cable AC Power Adapter Power Cable Limited 3-Year Warranty
Wacom DTK2451 specs
| Display |
| Panel Type | LCD |
| Size | 23.8" |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 |
| Video Ports | 2 x DVI-I |
| Contrast Ratio | 1000:1 |
| Color Gamut | Not Specified by Manufacturer |
| Brightness | 210 cd/m² |
| Pixel Pitch | Not Specified by Manufacturer |
| Response Time | 16 ms (GtG) |
| Display Colors | 16.7 Million |
| Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) |
| Tablet |
| Active Area | 20.7 x 11.7" / 52.58 x 29.72 cm |
| Number of Buttons | 4 |
| Buttons Customizable | Yes |
| Connectivity Ports | 1 x USB Type-A |
| Connectivity Cable | USB Type-A |
| Dimensions (W x H x D) | 23.7 x 14.0 x 1.8" / 60.2 x 35.6 x 4.6 cm |
| Stylus |
| Pressure Levels | 2048 |
| Report Rate | 187 pps |
| Resolution | 2540 lpi |
| Stylus Accuracy | ±0.02" / 0.5 mm |
| Technology | Electromagnetic Resonance (EMR) |
| Dimensions (L x D) | Not Specified by Manufacturer |
| General |
| Cable Length | Not Specified by Manufacturer |
| Battery Type | Not Specified by Manufacturer |
| Maximum Battery Life | Not Specified by Manufacturer |
| Charging Time | Not Specified by Manufacturer |
| Operating System Support | Windows, macOS/OS X |
| Multi-Touch | No |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 45 W |
| Weight | 15.9 lb / 7.21 kg |
| Packaging Info |
| Package Weight | 27.0 lb |
| Box Dimensions (LxWxH) | 27.0 x 21.5 x 9.0" |
