Description

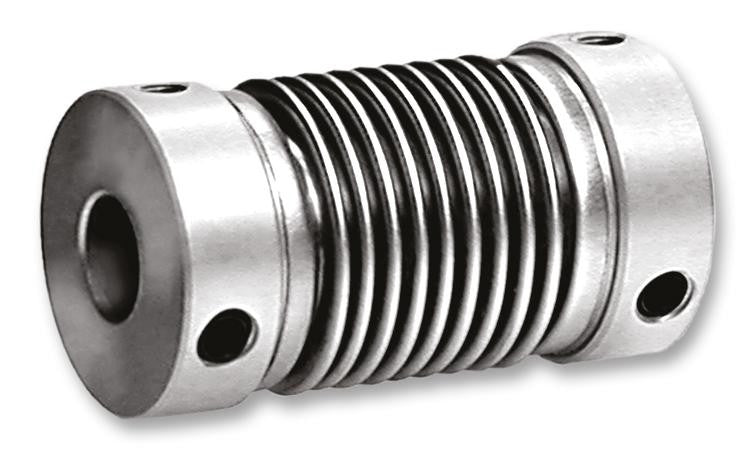

The FB29B1010 is a Bellows Coupling for use with encoder (10mm shaft diameter). Made with anodised aluminium flange and stainless steel bellows.
- �0.25mm Maximum offset of shafts radial
- �0.4mm Maximum offset of shafts axial
- �4� Maximum offset of shafts angular
- 150Nm/rad Torsion spring stiffness
- 25N/mm Radial spring stiffness
- 8gcm� Moment of inertia
- 150Ncm Maximum clamping torque
Applications
Sensing & Instrumentation
Product details
| Rotational Speed Max | 10000rpm |
| Product Range | - |
| Torque | 80N-cm |
| Bore Diameter Min | 10mm |
Other details
| Brand | WACHENDORFF |
| Part Number | FB29B1010 |
| Quantity | Each |
| Technical Data Sheet EN |  |
