Description
Vortex Diamondback HD Overview
- 1Description
- 2Optical Performance
- 3Use and Handling
- 4Construction Details

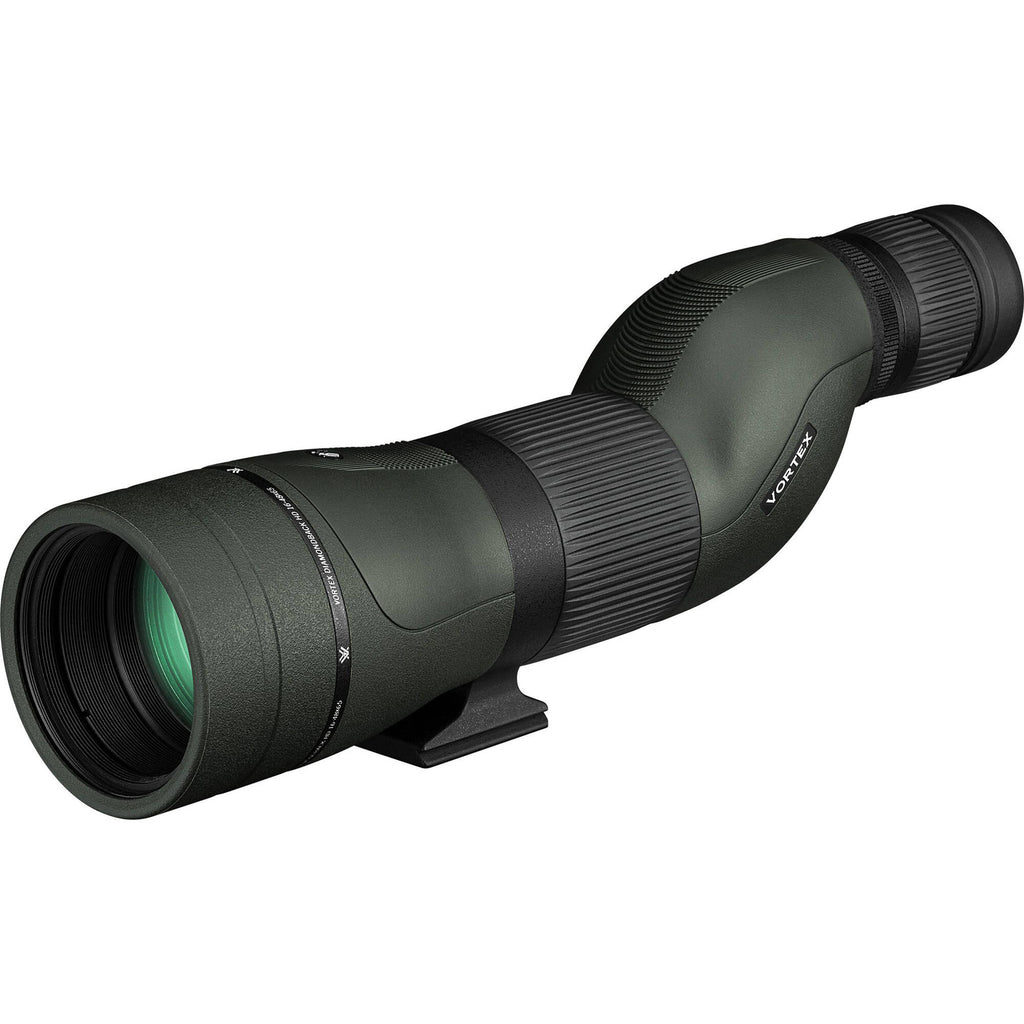

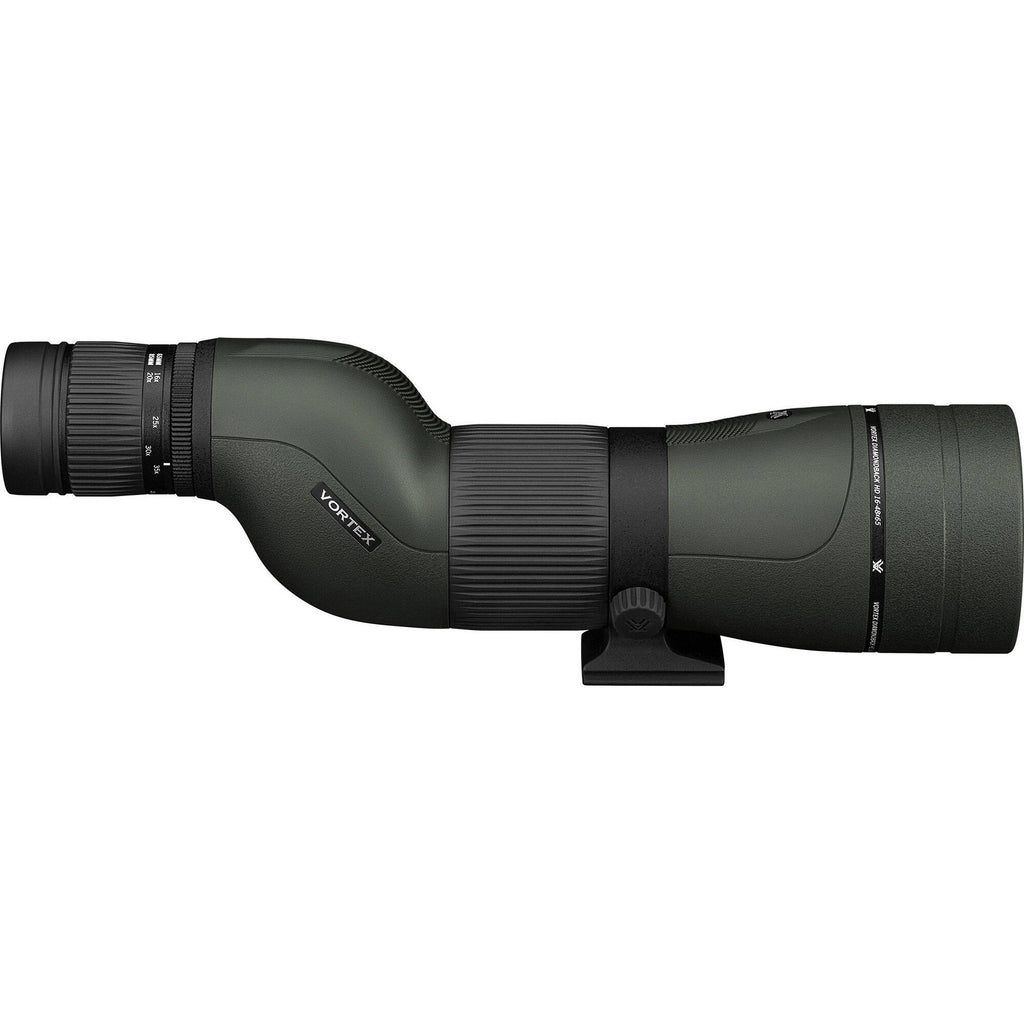

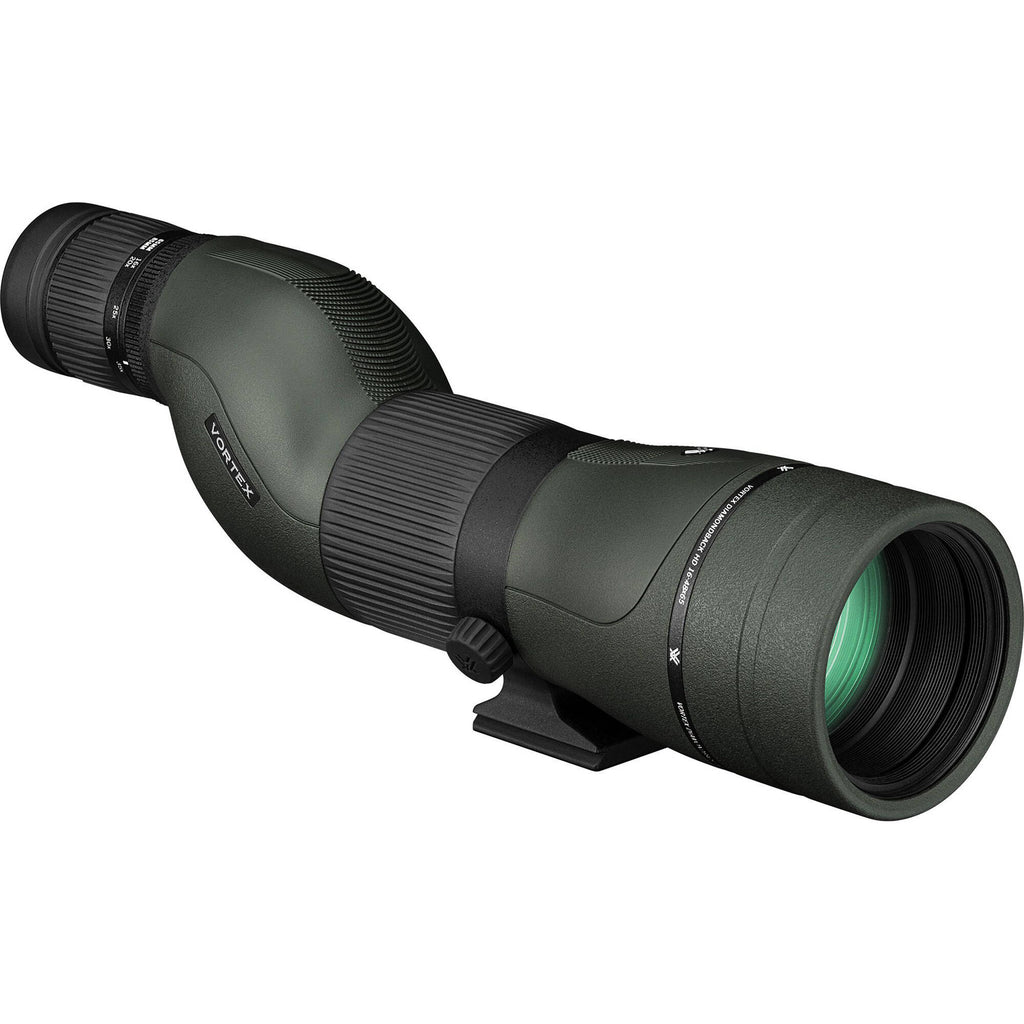

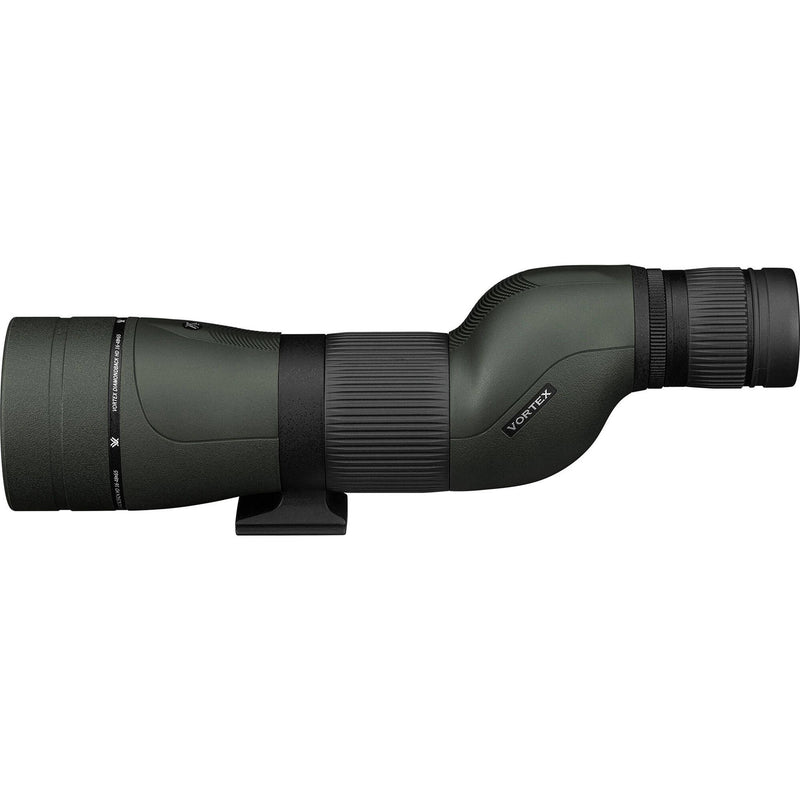

An ideal companion for mid- to long-range shooters and hunters, the straight-through viewing Vortex Optics Diamondback HD 16-48x65 Spotting Scope delivers bright and sharp high-contrast images with true-to-life color and crisp clarity at all magnifications, even in low or challenging light conditions.
Image quality is enhanced through the use of anti-reflection fully multicoated high-density (HD) extra-low dispersion (ED) glass elements in the lens system that maximize light transmission, increase color fidelity and contrast, and improve clarity and resolution through the entire zoom range. The large 65mm objective boosts the spotter's light-gathering capabilities to keep views bright and clear in even challenging light conditions and when observing subjects at long distances at maximum magnification. This version of the Diamondback HD is configured with the eyepiece set in-line with the body to make finding your subject fast and tracking them if they start to move easier versus angled configurations. A helical focus system eliminates the more common knob-based system, providing smooth focusing without the snag hazard that knobs are known for.
Its mounting system features a standard 1/4"-20" socket and its shoe is ARCA-style compatible, which means you can directly mount it on an ARCA head without the need for additional plates. Its mounting collar can also be rotated at 45° increments for precise eyepiece placement and optimized viewing comfort. The Diamondback's chassis is argon filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions. A retractable sunshade prevents lens flare that can spook game and keeps rain and snow off the objective to ensure clear views in less-than-ideal weather. Vortex includes a simple neoprene case that offers further protection against knocks and moisture. Tethered eyepiece and objective caps offer protection while preventing their loss when you're using the spotter.
Optical Performance
- Broad 16-48x fixed zoom eyepiece is ideal for mid- to long-range use
- 65mm objective lens gathers the light required to use in challenging conditions and to ensure bright views when looking at distant subjects at high power
- Traditional Porro prism light path produces clear and bright views without internal light interference
- High-density (HD), extra-low dispersion (ED) glass lens elements reduce chromatic and spherical aberrations for increased contrast and improved color rendition and sharpness without distortion across the entire field of view
- Anti-reflection fully multicoated optics increase light transmission for accurate color fidelity and improved contrast and clarity
- ArmorTek exterior lens coatings resist scratches and abrasions while allowing oil, dirt, and sap to be cleaned off without leaving smudges or residue
- 139-foot field of view at 1000 yards at 16x; 72-foot field of view at 48x
Use and Handling
- Eyepiece set in-line with the body to make finding subjects fast and tracking them easy
- Helical focusing mechanism focuses smoothly and quickly for tack-sharp views
- Large slip-resistant focusing collar, instead of the more common knob, is easy to manipulate in cold and wet weather or when wearing gloves, while eliminating the snag hazard that knobs can present
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Standard 1/4"-20 mount with ARCA-style foot is compatible with a wide variety of plates, heads, and photo/video/field tripods
- Rotating tripod collar with positive 45° indents allows user to precisely adjust the eyepiece position relative to tripod head to place it in the most comfortable position
- Exceptional long eye relief at all magnifications improves viewing comfort with reduced eyestrain
- Comfortable 4.1mm exit pupil at 16x will cover most pupils as they open and dilate in low light to keep the whole scene in view without vignetting
Construction Details
- Protective rubber armor provides a slip-resistant grip for more secure handling during setup and breakdown
- Argon filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Tethered eyepiece and objective caps prevent loss during use
- Retractable sunshade prevents lens flare that can spook game, reduces glare to maintain contrast and clarity in the view, and keeps rain or snow off of the lens for clearer views in inclement weather
- Neoprene carrying case protects the spotting scope during transport and storage
In the Box
- Vortex Diamondback HD 16-48x65 Spotting Scope (Straight Viewing)
- Neoprene Case
- Eyepiece Cap
- Objective Lens Cap
- Limited Lifetime Warranty
- Description
- Optical Performance
- Use and Handling
- Construction Details
Vortex Diamondback HD Specs
| Viewing Angle | Straight |
| Prism Type | Porro |
| Magnification | 16 to 48x |
| Objective Lens Diameter | 65 mm |
| Field of View | 16x: 138.0' @ 1000 yd / 45.8 m @ 1000 m 48x: 72.0' @ 1000 yd / 23.9 m @ 1000 m |
| Minimum Focus Distance | 16.4' / 5.0 m |
| Exit Pupil Diameter | 16x: 4.1 mm 48x: 1.4 mm |
| Eye Relief | 20.3 to 18.3 mm |
| Fogproof | Yes, Argon Filled |
| Water Resistance | Waterproof |
| Tripod Mounting Thread | 1/4"-20 Female |
| Dimensions | L: 13.8" / L: 34.9 cm |
| Weight | 50.4 oz / 1.4 kg |
| Package Weight | 5.5 lb |
| Box Dimensions (LxWxH) | 16.1 x 8.5 x 5.5" |
