Diamondback® HD 15x56 BinocularDiamondback® HD 15x56 Binocular OverviewUnboxing the Diamondback® HD 15x56 Binocular

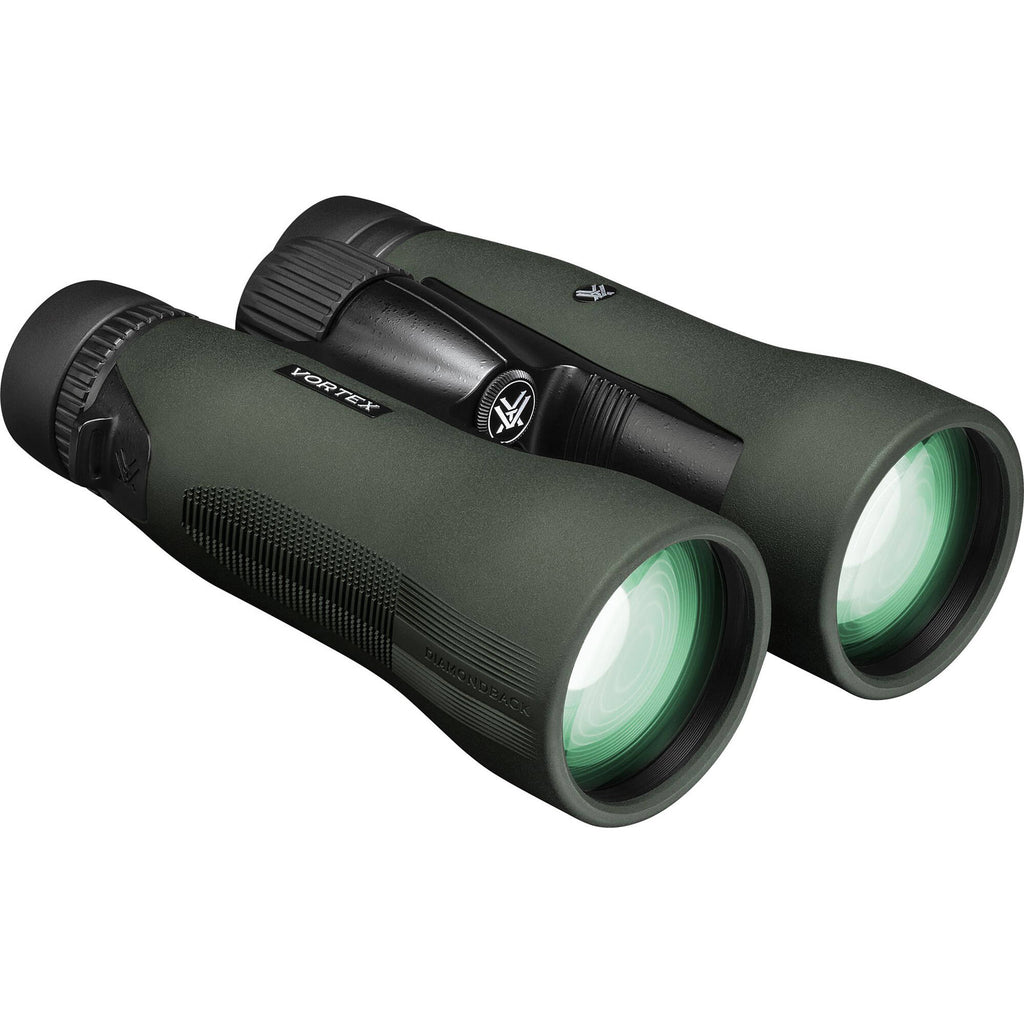

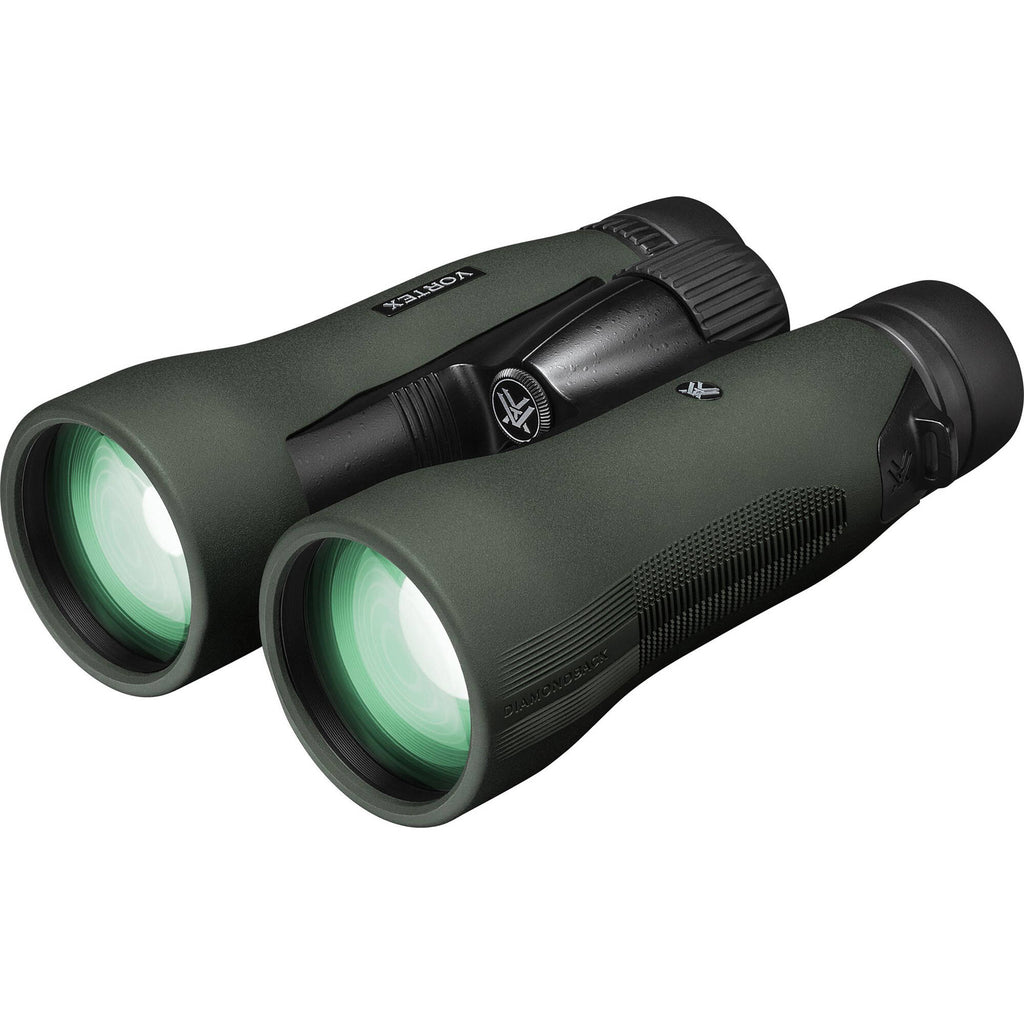

Designed to be your go-to optic for long-range/low-light use in wide open and expansive terrain, like the plains of the American West, the Vortex 15x56 Diamondback HD Binocular provides a superior viewing experience by combining well-engineered optics and a wide field of view with a lightweight and durable ergonomic housing.
The oversized extra-low dispersion (ED) high-definition (HD) lenses treated with proprietary multicoatings, and dielectric-coated and phase-corrected roof prisms deliver vivid true-color images that are bright and crisp across the entire field of view without distortion or color fringing. The lenses are further treated with ArmorTek coatings that cause water to bead and run off and allow oils and sap to be removed without scratching or leaving residue. This ensures clean and clear lenses for optimum viewing.

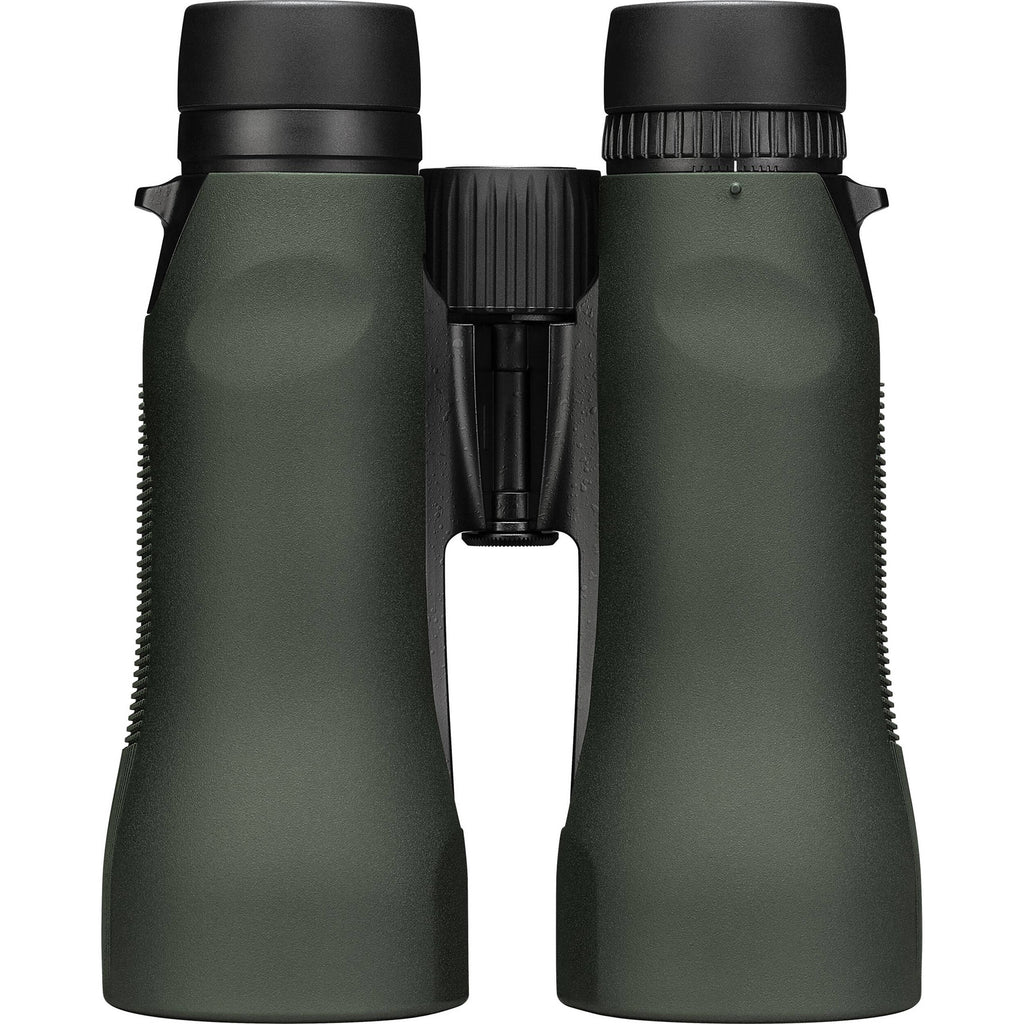

Vortex designed the binocular with comfort in mind to minimize user fatigue during long observation. The housing is made from a lightweight and durable magnesium alloy and protective rubber armor wraps the body and provides a slip-resistant grip. Design details like raised dimpled palm pads and underside thumb indentations further improve grip stability and comfort. The housing is argon-filled and O-ring sealed to be waterproof and resistant to internal fogging in extreme conditions.
Weighing over two pounds, Vortex recommends tripod mounting to eliminate distracting hand shake and arm fatigue that many would experience hand-holding an optic of this size and magnification. To help you mount it, a Uni-Dapter tripod adapter is included. You just need to bring the tripod. To make carrying the Diamondback all day in the field easier, a harness system is included to shift the weight from your neck to your shoulders. A case is also included for additional protection.
Optical Performance
- Designed for extreme long-distance and low-light use
- Powerful 15x magnification, allowing detailed observation and identification of distant subjects
- Oversized 56mm objective lenses draw in massive amounts of light to deliver bright views, even in pre-dawn or deep dusk conditions
- Roof prism design produces thinner optical tubes versus traditional Porro designs, maintaining optical performance in an easy-to-hold chassis
- Dielectric and phase-correcting prism coatings provide true color with improved contrast and transmission
- Extra-low dispersion (ED) HD objective lenses correct chromatic aberrations and fringing to deliver bright and clear high-contrast and high-resolution views with accurate color representation
- Fully multicoated lenses increase transmission, clarity, and brightness
- Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses to keep views clear without residue
- Wide 65.4° apparent angle of view helps to offset the appearance of distracting vibration while looking through the eyepieces
- 230' field of view at 1000 yards
Use and Handling
- Short bridge offers a solid and stable platform for the internal focusing mechanism
- Large textured focus wheel is designed to be easy to manipulate, even in cold and wet conditions or while wearing gloves
- 59-76mm interpupillary distance range accommodates users of all sizes
- Twist-up soft rubber eyecups for easy use with or without eyewear
- 15.6mm eye relief improves viewing comfort by reduces eye strain
- 3.7mm exit pupil
Construction Details

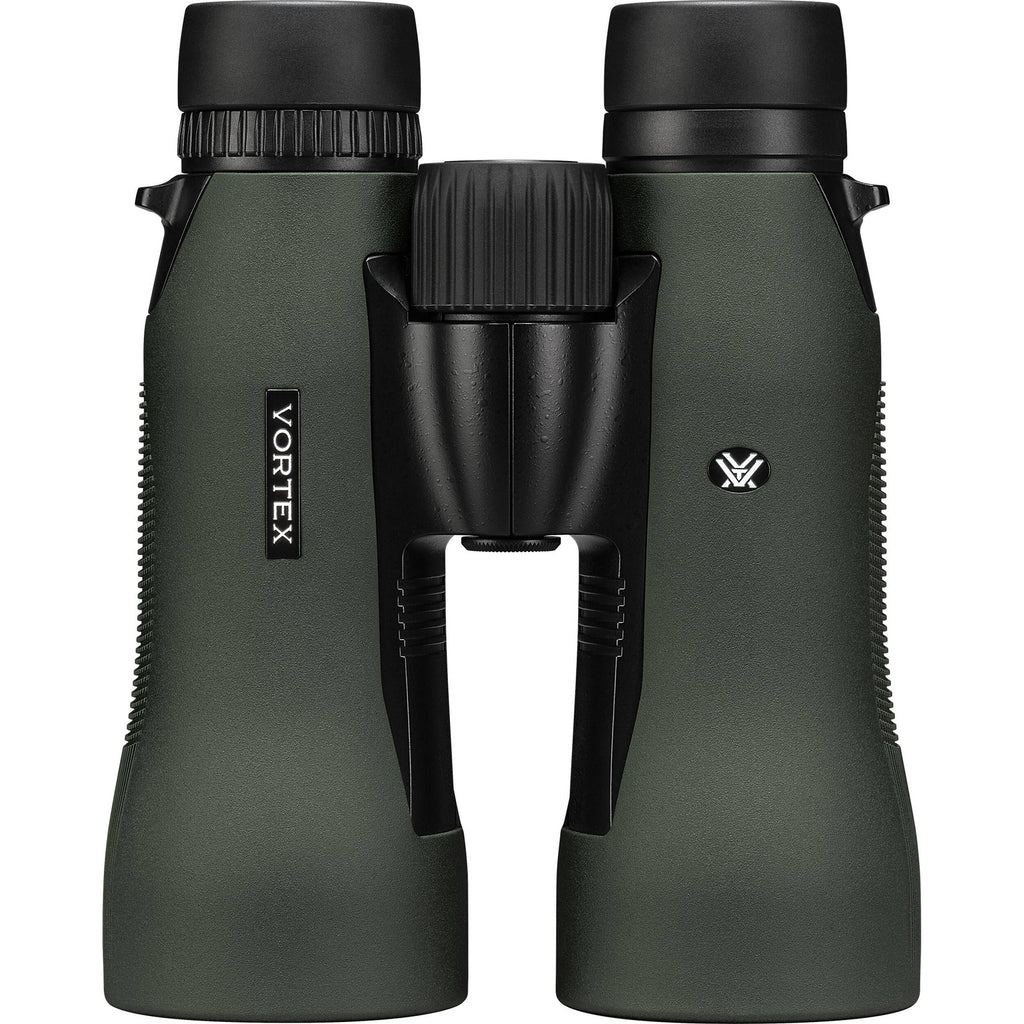

- Bridge design exposes more surface area for easier, more comfortable handling
- Lightweight, durable, and corrosion-resistant magnesium alloy chassis
- Protective rubber armor provides a slip-resistant grip
- Argon filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperatures and environmental conditions
- Slim & unobtrusive Uni-Daptor tripod adapter allows the binocular to be mounted on a tripod, while allowing it to stay in place when in the case
- GlassPak binocular harness with case shifts weight from the neck to the shoulders to make carrying the binocular in the field all day more comfortable without fatigue
- Tethered one-piece ocular rainguard and objective lens covers protect the lens surfaces without fear of losing them when using the binocular
![]()
UPC: 875874007420

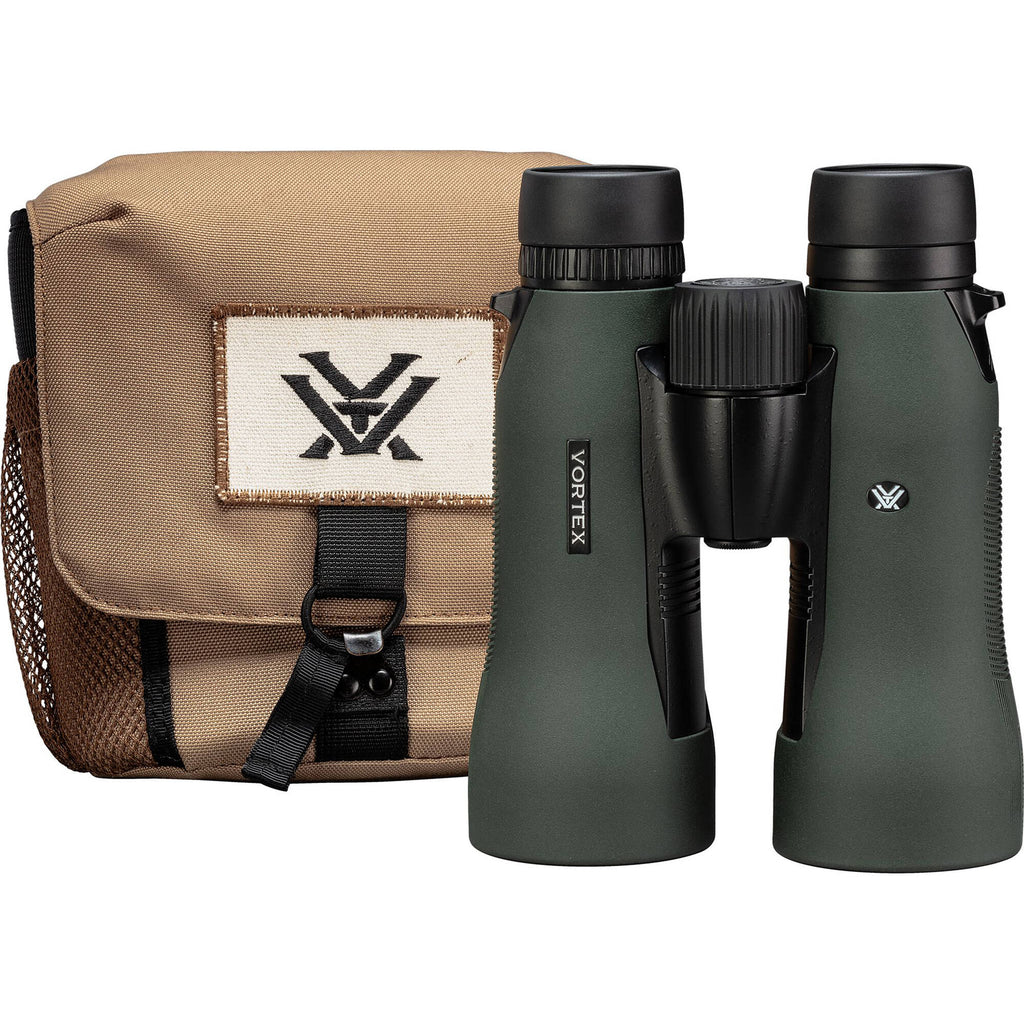

In the Box
- Vortex 15x56 Diamondback HD Binocular
- Vortex Uni-Daptor Binocular Tripod Adapter
- Vortex GlassPak Binocular Harness (Tan)
- Neck Strap
- Rainguard Eyepiece Cover
- Tethered Objective Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
- Description
- Optical Performance
- Use and Handling
- Construction Details
Vortex Diamondback HD Specs
Performance
| Magnification |
15x |
| Objective Lens Diameter |
56 mm |
| Angle of View |
4.4° (Actual) |
| Field of View |
230' @ 1000 yd / 76.36 m @ 1000 m |
| Minimum Focus Distance |
14' / 4.27 m |
| Exit Pupil Diameter |
3.7 mm |
| Eye Relief |
15.6 mm |
| Interpupillary Adjustment |
59 to 76 mm / 2.3 to 3" |
| Diopter Adjustment |
Yes |
| Focus Type |
Center |
Features
| Fogproof |
Yes, Argon Filled |
| Water Resistance |
Waterproof |
General
| Dimensions |
7.1 x 5.8" / 18.03 x 14.73 cm |
| Weight |
34.8 oz / 987 g |
Packaging Info
| Package Weight |
3.36 lb |
| Box Dimensions (LxWxH) |
9.3 x 8.4 x 4.6" |
