Voice Technologies VT500 Overview

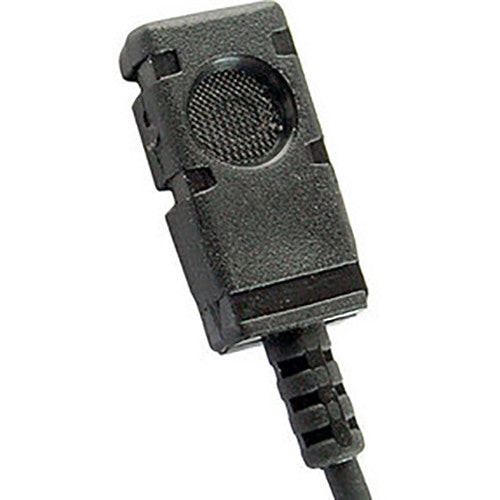

The Voice Technologies VT500-ECO Package includes the VT500 omnidirectional miniature lavalier microphone, an alligator clip, a pro windscreen, and a slim travel case. The VT500 is a high-quality, all-purpose electret condenser microphone system suitable for performing talent in broadcast, theatre, and film. The microphone features an unterminated 3-wire pigtail lead (RF protected).
The special injection-molded design makes this microphone rugged and shockproof. In addition, a flexible cable offers enhanced isolation from rubbing noise. Speech clarity is optimized by a slight frequency emphasis which gives remarkable voice reproduction while reducing placement constraints.

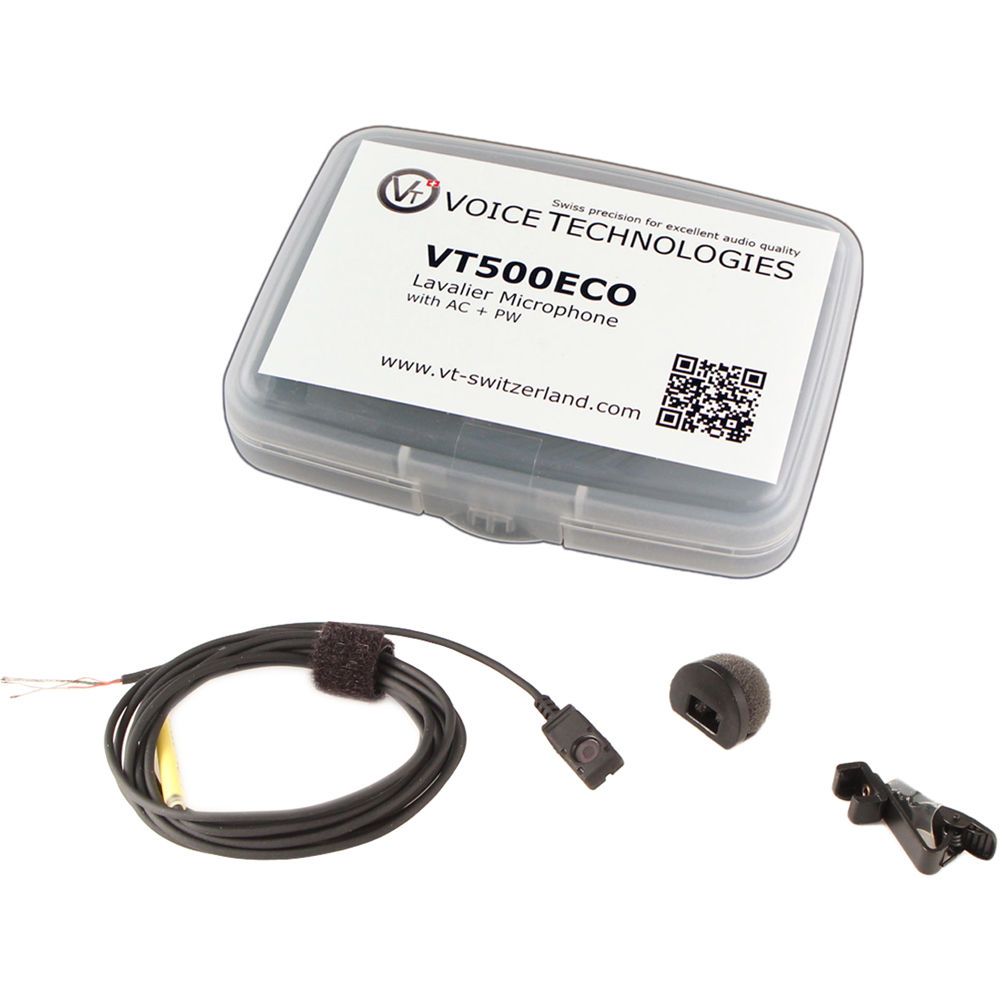

In the Box
- Voice Technologies VT500ECO Omnidirectional Miniature Lavalier Microphone Economy Package (3-Wire Pigtail Lead, Black)
- Voice Technologies Alligator Microphone Clip (Black)
- Voice Technologies PW Pro Foam Windscreen for Voice Technologies VT500 and VT506 Headworn Microphones (Black)
- Slim Travel Case
Voice Technologies VT500 Specs
Microphone
| Form Factor |
Lavalier |
| Compatible Transmitters |
Pigtail/Unterminated Cable Can Be Configured As Required by Customer |
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Polar Pattern |
Omnidirectional |
| Pad |
None |
| High-Pass Filter |
None |
| Indicators |
None |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
40 Hz to 20 kHz |
| Maximum SPL |
118 dB SPL |
| Impedance |
3 Kilohms |
| Sensitivity |
-59 dB |
| Equivalent Noise Level |
26 dB A-Weighted |
Connectivity
| Output Connector |
1 x Pigtail/Unterminated Bare Wire |
| Headphone Output |
None |
| Cable Length |
59.1" / 1.5 m |
| Cable Diameter |
0.1" / 1.5 mm |
| Number of Conductors |
3 |
Power
| Operating Voltage |
1.3 V |
| Operating Current Consumption |
25 µA |
Physical
| Color |
Black |
| Included Mounting & Placement Accessories |
Alligator Clip, Lapel Pin/Dracula Mount |
| Mounting Thread Size |
Included Mount Has No Threading |
| Dimensions |
H: 0.5 x W: 0.3 x L: 0.1" / H: 13 x W: 7 x L: 3.5 mm |
| Weight |
0.2 oz / 7 g |
