VocoPro UHF-5805-9 Overview

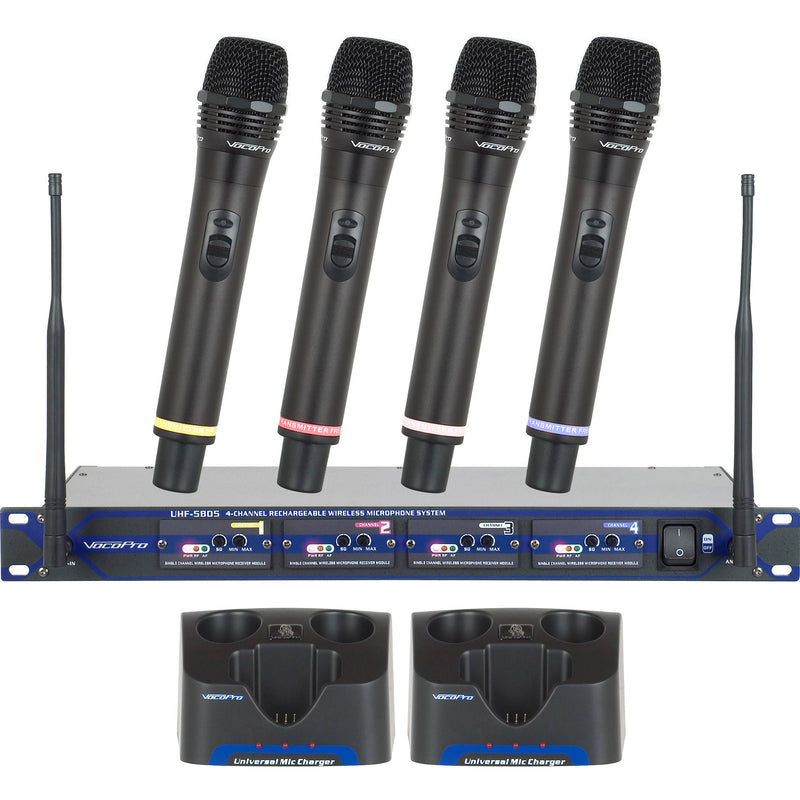

The UHF-5805-9 Professional Rechargeable 4-Channel UHF Wireless Handheld Microphone System from VocoPro comprises a four-channel rackmount wireless receiver, four rechargeable wireless handheld microphones, each with its own fixed UHF channel and volume control, and two dual-microphone chargers. Also included are a pair of antennas, power adapters for the receiver and chargers, and an aluminum travel case. This 4-channel system can be used to capture audio for live stage, conference, and meeting applications.

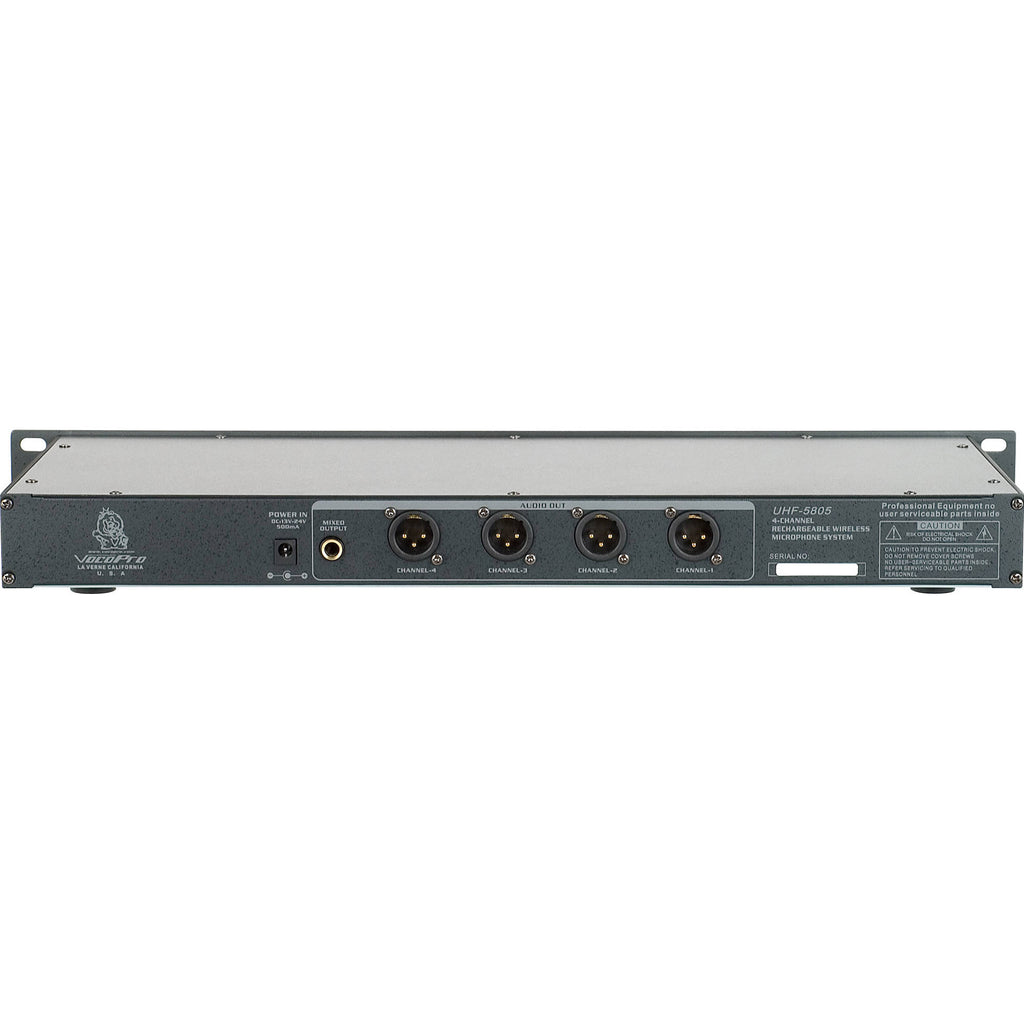

The UHF-5805-9 feature four field-replaceable modules in the receiver rack that easily slide out without affecting the functionality of the other channels. Each channel is equipped with an XLR output and the aluminum chassis has a 1/4" mixed output. The microphones offer everything you need to deliver clear vocals without the fear of frequency interference.
4 x independent XLR and 1 x mixed 1/4" outputs
4 x rechargeable wireless handheld microphones
Individual volume controls for precise vocal balancing
2 x dual-microphone chargers
4 x independent field-replaceable modules
Interference-resistant UHF band operation
Rugged 1 RU metal receiver chassis
![]()
UPC: 692868990052
In the Box
- VocoPro UHF-5805-9 Professional Rechargeable 4-Channel UHF Wireless Handheld Mic System (9A, 9B, 9C, and 9D Bands)

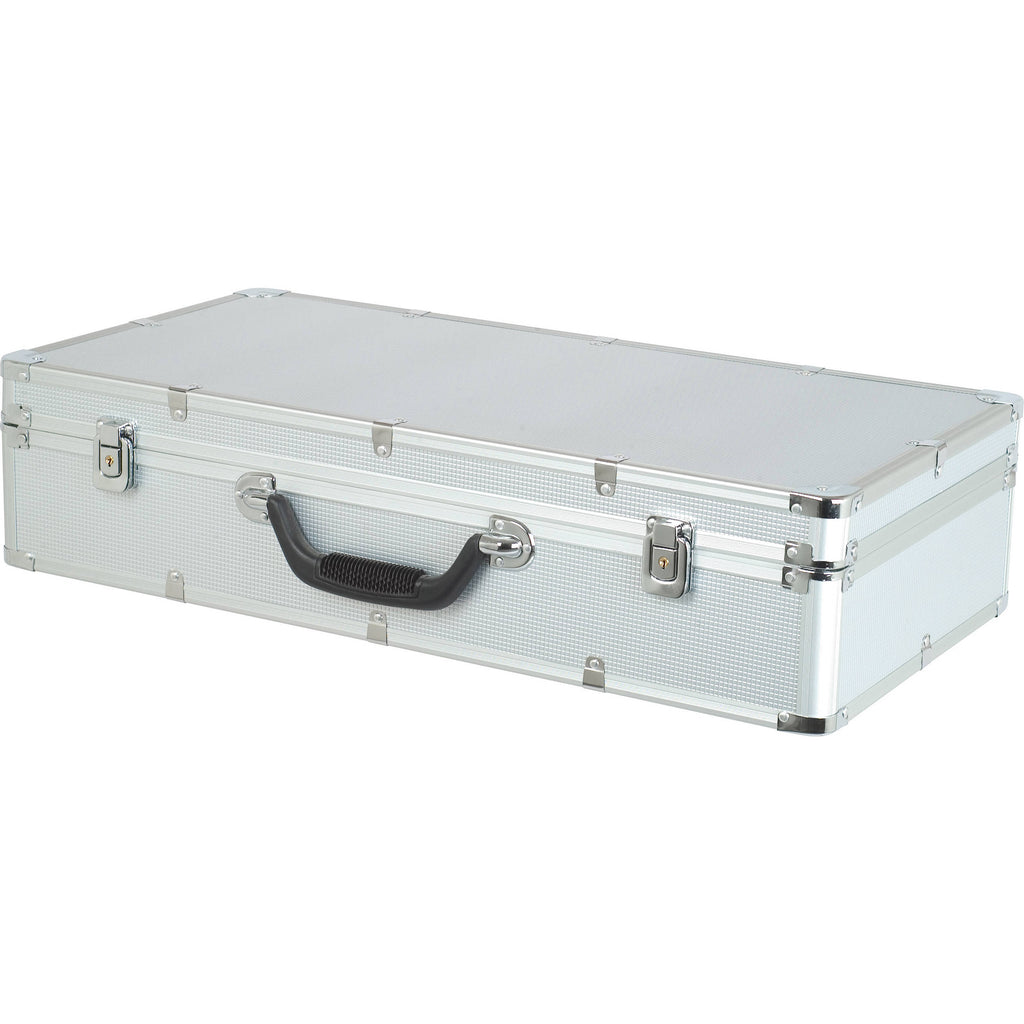

- Aluminum Travel Case
- UHF-5805 Receiver
- 2 x Antennas
- 4 x Handheld Microphones
- 3' 1/4" Male to Male Cable
- 14 VDC Main Unit Power Adapter
- 2 x 9 VDC Charger Power Adapters

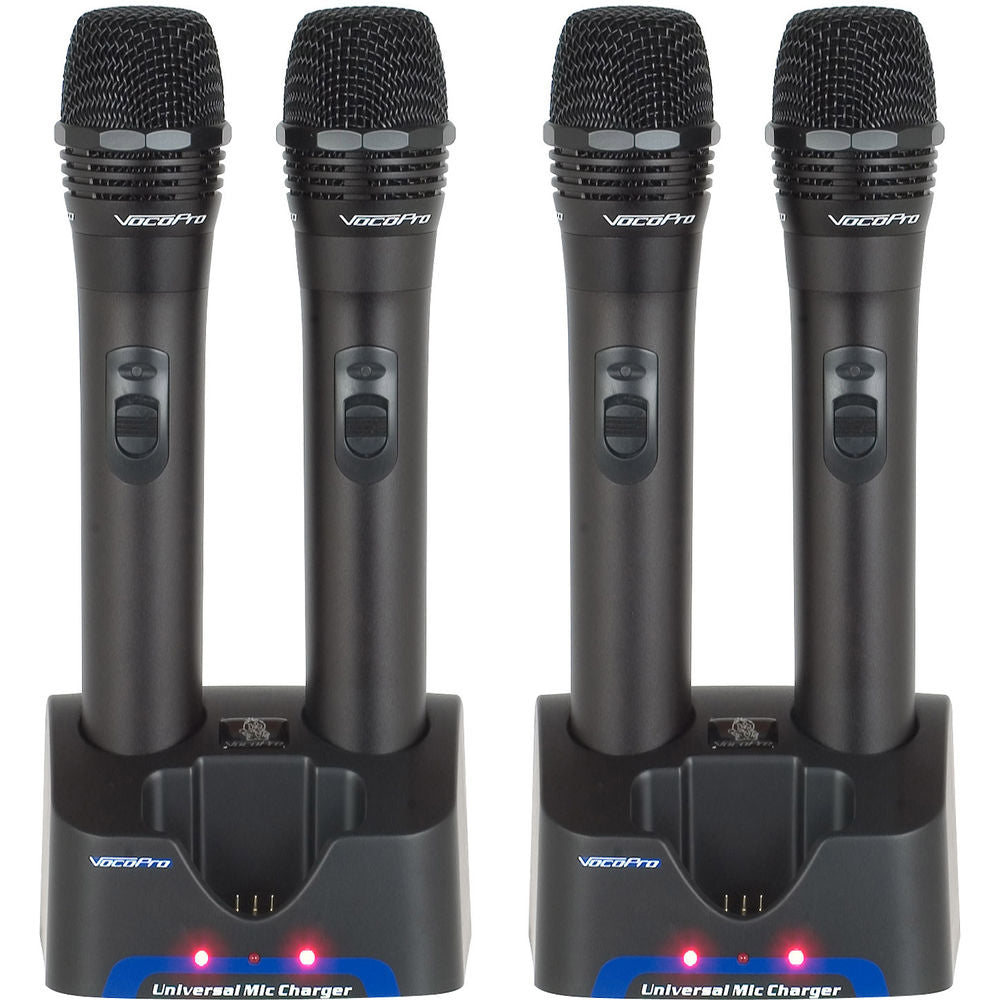

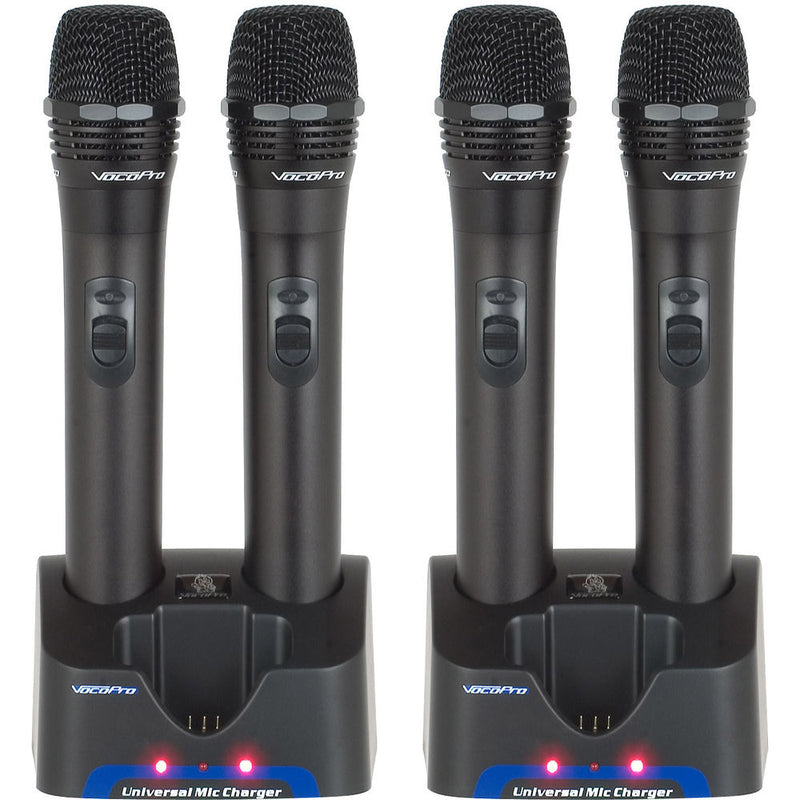

- 2 x Dual Microphone Chargers
- Limited 1-Year Warranty
VocoPro UHF-5805-9 Specs
System
| Wireless Transmission | Digital UHF (900 MHz) |
| Number of RF Channels | 4 |
| Included Transmitters | 4 x Handheld |
| RF Frequency Band | 902 to 910.7 MHz |
| Encryption | Yes |
Receiver
| Form Factor | Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (Full Rack) |
| Antenna | 2 x 1/4 Wave Rod, TNC (Front-Mount) |
| Number of Audio Channels | 4 |
| Audio I/O | 4 x XLR 3-Pin Male Balanced Mic Output (Lockable) |
| Frequency Response | 40 Hz to 16 kHz |
| Spurious | Rejection: 75 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 15 VDC (Included) |
| Housing | Aluminum |
| Dimensions | 19.0 x 1.8 x 8.2" / 48.3 x 4.6 x 20.8 cm |
Transmitter
| Form Factor | Handheld |
| Audio I/O | None |
| Power Requirements | Battery |
