VocoPro PHR-3 Digital Wireless Guitar, Monitor, and Recording System with 30-Degree Angled Jack (900 MHz)

Play, Hear, and Record Guitar Wirelessly

1/4" Plug-In Transmitter, 30° Jack

USB and 1/4" Plug-In Receiver

Portable Receiver with Earphones

The VocoPro PHR-3 is a digital wireless system that offers an innovative way for guitarists and bass players to play, monitor, and record (or stream) their performance to a computer via a USB receiver. Monitor with a built-in audio interface while listening via an in-ear monitor, and send signal to your guitar amplifier wirelessly and effortlessly.

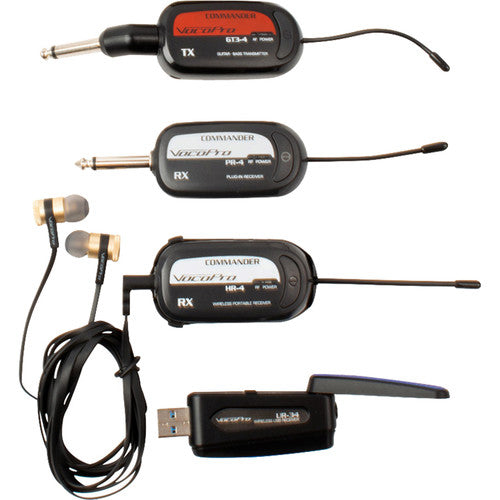

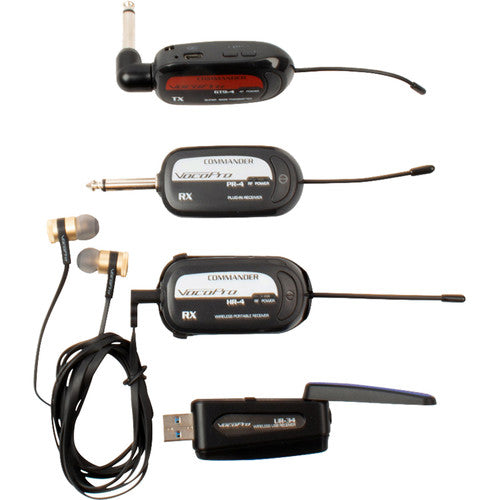

The PHR-3 features a Commander GT3 guitar transmitter with a 1/4" input jack fixed at a 30° angle to avoid bumping when inserted into the side of a guitar or bass. Included items are the Commander PR 1/4" plug-in receiver, a Commander UR USB receiver, a Commander HR portable receiver with Commander CA belt clip, and IE-9 stereo earphones.

Easy to set up with simple one-key, tap-and-sync automatic scan-and-pair function, the PHR-3 operates with low latency in the 900 MHz frequency band, away from TV, radio, and Wi-Fi interference. Equipped with built-in rechargeable batteries it can run up to three hours at a distance of up to 200'. Extended run time is possible with a USB charging port or power bank (both available separately) as power source.

Because the system comes with four built-in frequency groups, up to four players can use their own PHR-3 system to play simultaneously in the same space.

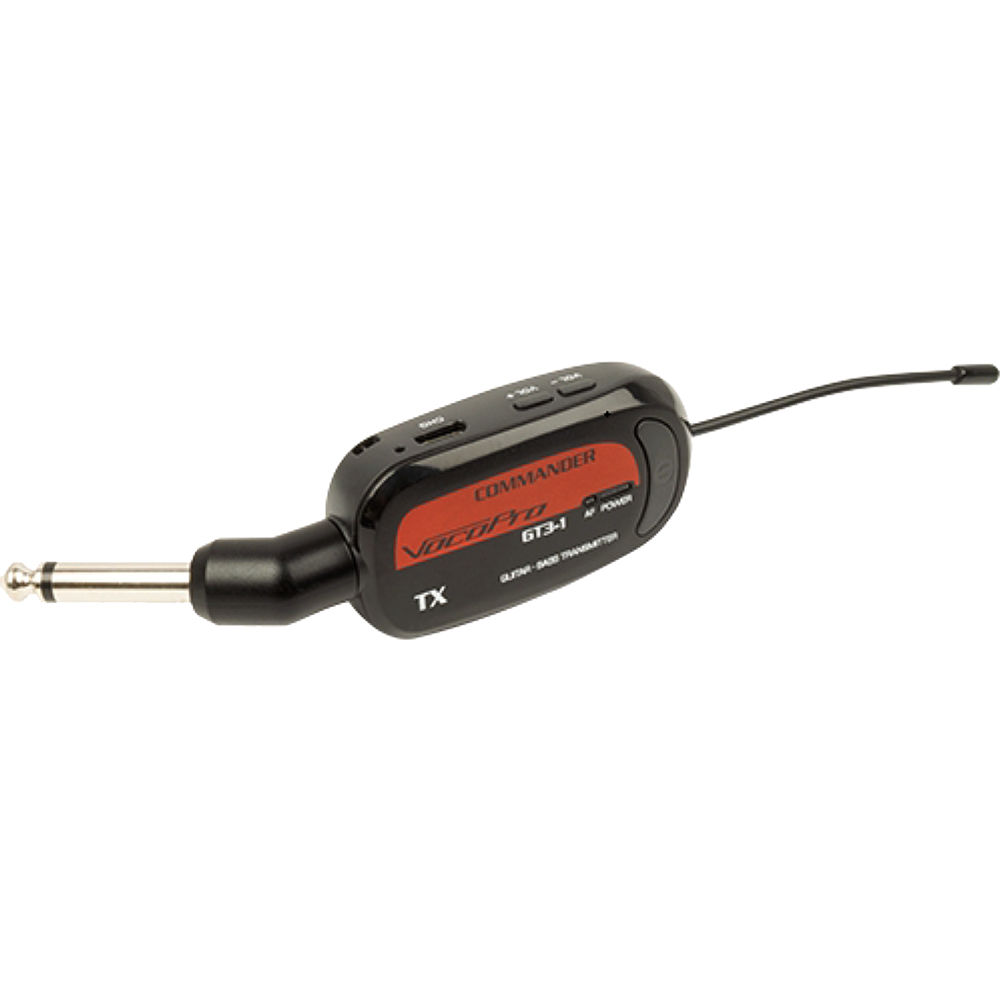

Commander GT3 1/4" Guitar/Bass Transmitter

• Transmitter with a 1/4" input jack plugs into the 1/4" jack of your guitar or bass
• 1/4" input jack fixed at 30° angle

Commander PR 1/4" Plug-In Receiver

• Plugs into a guitar/bass amp
• Plugs into the 1/4" input of a mixer or PA speaker

Commander UR USB Receiver

• Plugs into the USB port of your Mac or Windows computer for recording and streaming
• 3.5mm line/headphone output for monitoring your instrument or sending the signal to a speaker
• Dual-channel receiver can receive wireless signal from two transmitters/mics simultaneously (second transmitter available separately)
• The external antenna lifts up to enhance reception

Commander HR Portable Receiver

• Use to wirelessly monitor your instrument with included earphones
• 3.5mm headphone jack
• Clip the receiver to your belt with the included Commander CA belt clip

IE-9 Stereo Earphones

• High-output single drivers deliver loud and clear sound
• Rugged all-metal housing
• Soft silicone tips with multiple size options
• Ultralightweight portable design

UPC: 692868747311

Wireless Transmission	Digital UHF (900 MHz)
Number of RF Channels	4
Included Transmitters	1 x Plug-On
RF Frequency Band	902 to 928 MHz
RF Channel Scanning	Auto-Scan
Max Operating Range	200' / 61 m (Line of Sight)
Max Systems per Setup	4

Form Factor	USB Stick
Antenna	1 x External (Side-Mount)
Number of Audio Channels	2
Audio I/O	1 x 1/8" / 3.5 mm Female Unbalanced Line/Headphone Output
USB/Lightning Connectivity	1 x USB Type-A (Audio, Bus Power)
Power Requirements	Bus Power (USB)
Display & Indicators	1 x LED (Data Transmission) 1 x LED (AF Level)

Form Factor	Plug-On
RF Output Power	10 mW
Audio I/O	1 x 1/4" TS Male Unbalanced Input
Frequency Response	75 Hz to 18 kHz3
Sync Method	Proprietary
Antenna	1 x External
Power Requirements	Battery, Bus Power (USB)
Battery Type	1 x Built-In Rechargeable(Not Replaceable)
Internal Battery Capacity	650 mAh
