Description
VocoPro BENCHMARK-QUAD Overview
The touring-grade VocoPro BENCHMARK-QUAD-HH is a four-channel wireless handheld microphone system that bundles all the essential components to bring reliable wireless transmission and quality audio to presenters, performers, clergy, and instructors working in challenging indoor/outdoor environments, houses of worship, and event spaces.

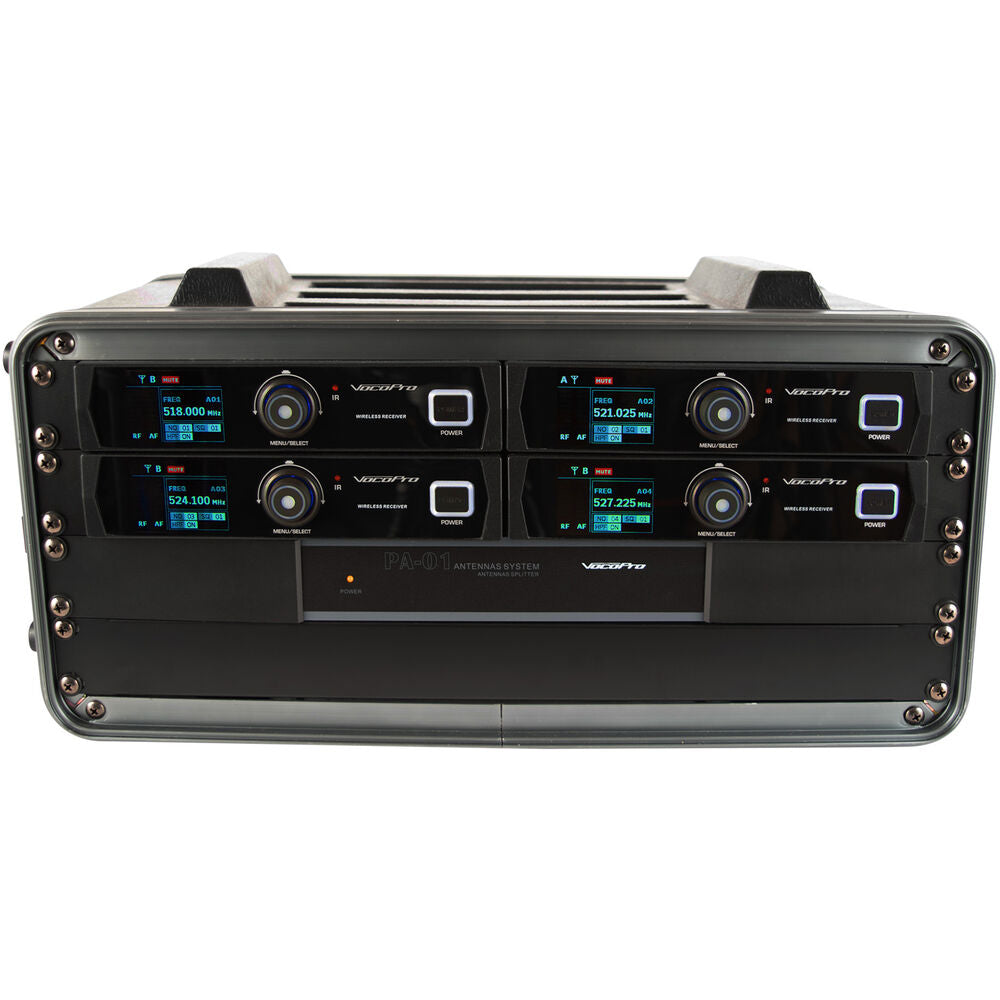

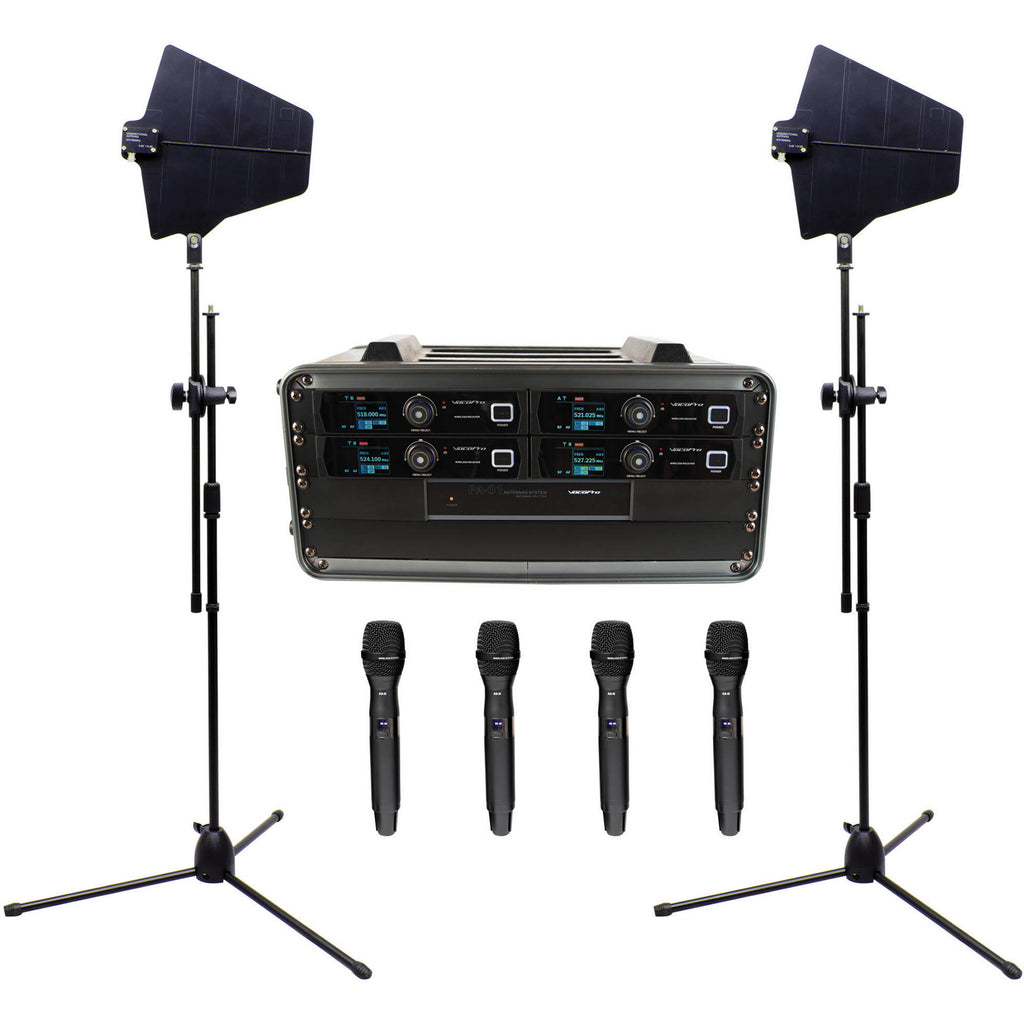

The BENCHMARK-QUAD-HH comes with four true-diversity rackmount receivers, four cardioid handheld microphones, an antenna distribution system, and two active directional antennas�securely packaged in a rugged, ATA-approved flight case. Two floor stands for the antennas, all necessary BNC cables for the antenna distributor, and four 1/4" output cables are also included.
Fast to set up and easy to operate, this system utilizes the 900 MHz band (immune to TV-broadcast interference) to provide reliable audio at a range up to 600'. The handheld microphone/transmitters provide up to 10 hours of operation on two AA batteries.
Touring-Grade Wireless System with Four Handheld Mics
- Touring-grade wireless handheld microphone system for indoor/outdoor events and houses of worship
- The receivers utilize true-diversity technology (with two antennas and two independent receiver sections within each unit) to achieve a reliable wireless performance at greater distances in challenging RF environments
- 600' of range (line of sight) when used with antenna distribution system and active directional antennas

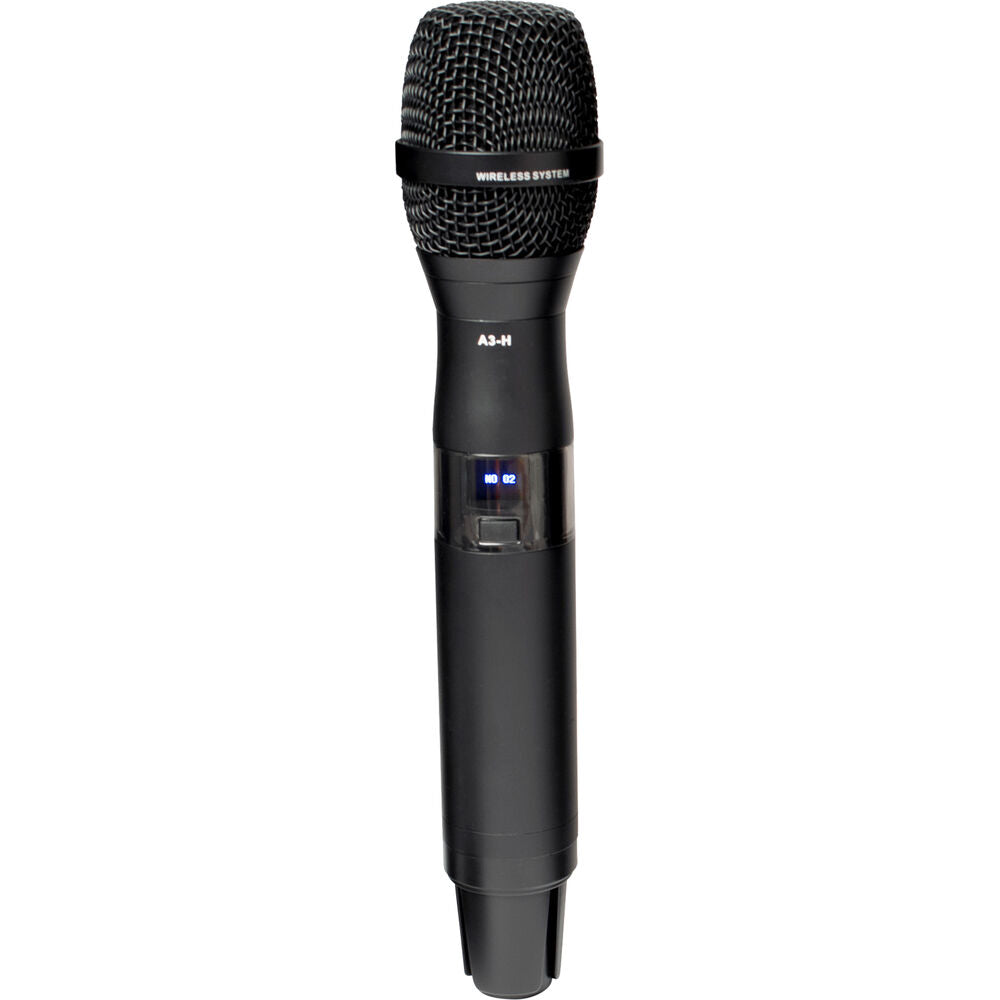

- Dynamic microphone with cardioid pickup pattern captures the sound directly in front of the capsule, rejects background noise, and helps reduce feedback from monitors and sound-reinforcement equipment
- Mic operates up to 10 hours on two AA batteries
- Color display shows frequency, RF signal reception, and battery status
- Scan feature with graphic display to quickly find a clean RF channel
- Wireless synchronization via infrared between receiver and transmitter
- Road-worthy, rugged metal housing
In the Box
- VocoPro BENCHMARK-QUAD-HH Four-Channel Wireless Handheld Microphone System with Active Antennas and Flight Case (900 MHz)
- 4 x BM-HT Handheld Microphones
- 4 x BM-RX Rackmount Receivers
- BM-AD Antenna Distributor

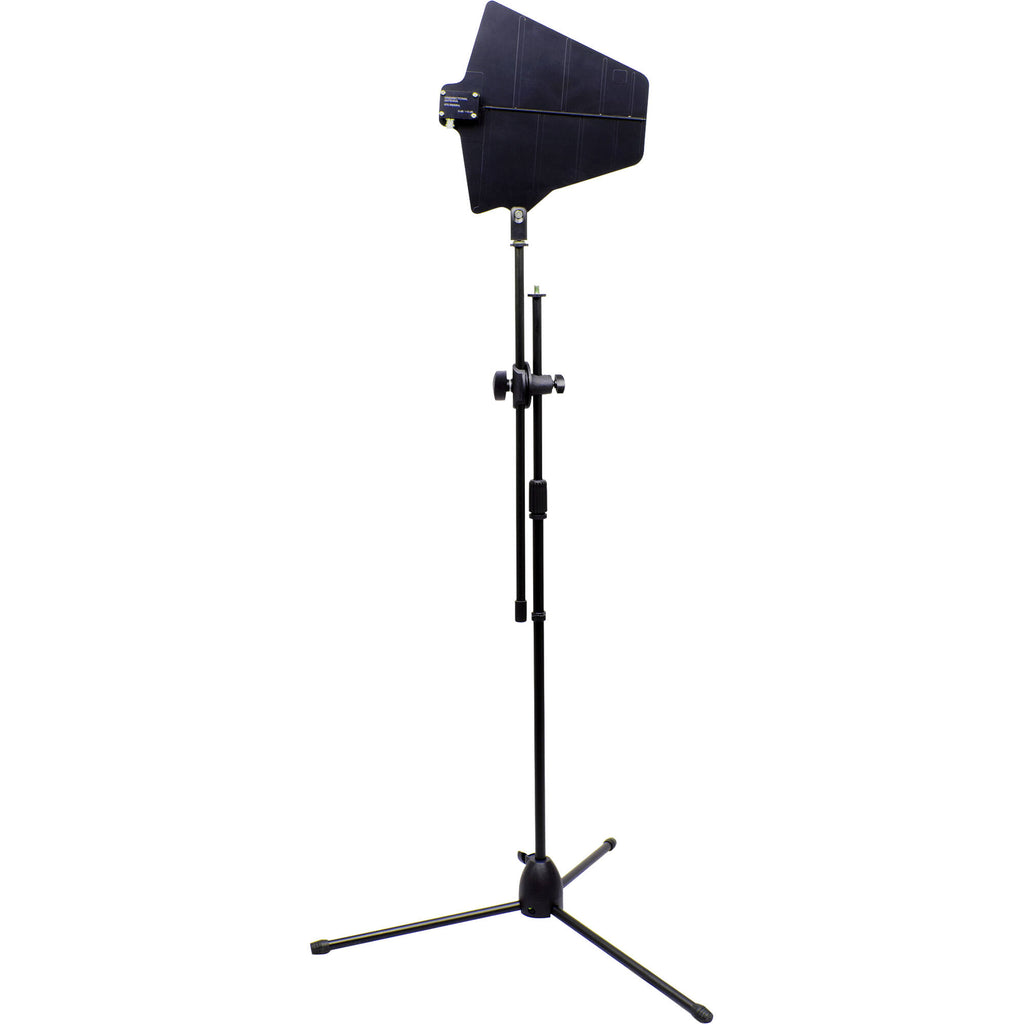

- 2 x Active Directional Antennas
- 2 x BM-36 Antenna Stands
- Set of BNC Cables
- 4 x 1/4" Output Cables
- DC Power Adapter
- Rackmounting Kit
- FC-48 Case
- Limited 1-Year Warranty
VocoPro BENCHMARK-QUAD Specs
| RF Bandwidth | 900 MHz |
| Frequency Response | 20 Hz to 18 kHz |
| THD | < 1% (at 1 kHz, 46 dBu) |
| Dynamic Range | > 100 dB |
| S/N Ratio | > 90 dB |
| Pilot Tone | 32.768 kHz |
| Output Level | Unbalanced: +9 dBu Balanced: +9 dBu |
| Output Impedance | Unbalanced: 810 Ohms Balanced: 240 Ohms |
| Sensitivity | -100 dBm, 30 dB Sinad |
| Operation Voltage | 12 to 15 VDC |
| Type | Handheld Microphone |
| Microphone Capsule | Dynamic, Cardioid |
| Output Gain | 10 dB (0 to +10 dB) |
| RF Output Power | 10 mW / 30 mW Optional |
| Power | 2 x 1.5 V AA Batteries |
| Operating Time | 8 to 10 Hours |
| Input Type | BNC Coaxial |
| Frequency Range | 470 to 980 MHz (-3 dB) |
| RF Output | RF Out A: 0 ±1 dB A1 to A4: 0 ±1 dB B1 to B4: 0 ±1 dB |
| Impedance | 50 Ohms |
| Reflection | Reflection Loss: 10 dB (All High-Frequency Output) |
| Operating Voltage | 12 VDC |
| Power Consumption | 200 mA 2 A, Max (4 Receivers + 2 Antennas) |
| Other | Antenna RF in A / B: 12 V, 500 mA A1 to A4 Power to Receiver: 12 V, 500 mA |
