| ₹ 351190.0 includes GST and import duties. | |
| B2B customers can avail ₹ 53556.48 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
VocoPro QUAD-BP Overview
VocoPro QUAD-BP Specs
System
| Wireless Technology | Analog UHF (900 MHz) |
| Number of RF Channel Frequencies | 10 |
| Included Transmitters | 4 x Bodypack with Microphone |
| Diversity | True Diversity |
| RF Frequency Band | 470 to 980 MHz |
| RF Bandwidth | 510 MHz |
| Frequency Step Size | 250 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 600' / 182.9 m (Line of Sight) |
| Max Transmitters per Band | 4 |
| Built-In Recorder | No |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Dynamic Range | >100 dB |
| Encryption | None |
| Modulation | FM |
| Pilot Tone | 32.768 kHz |

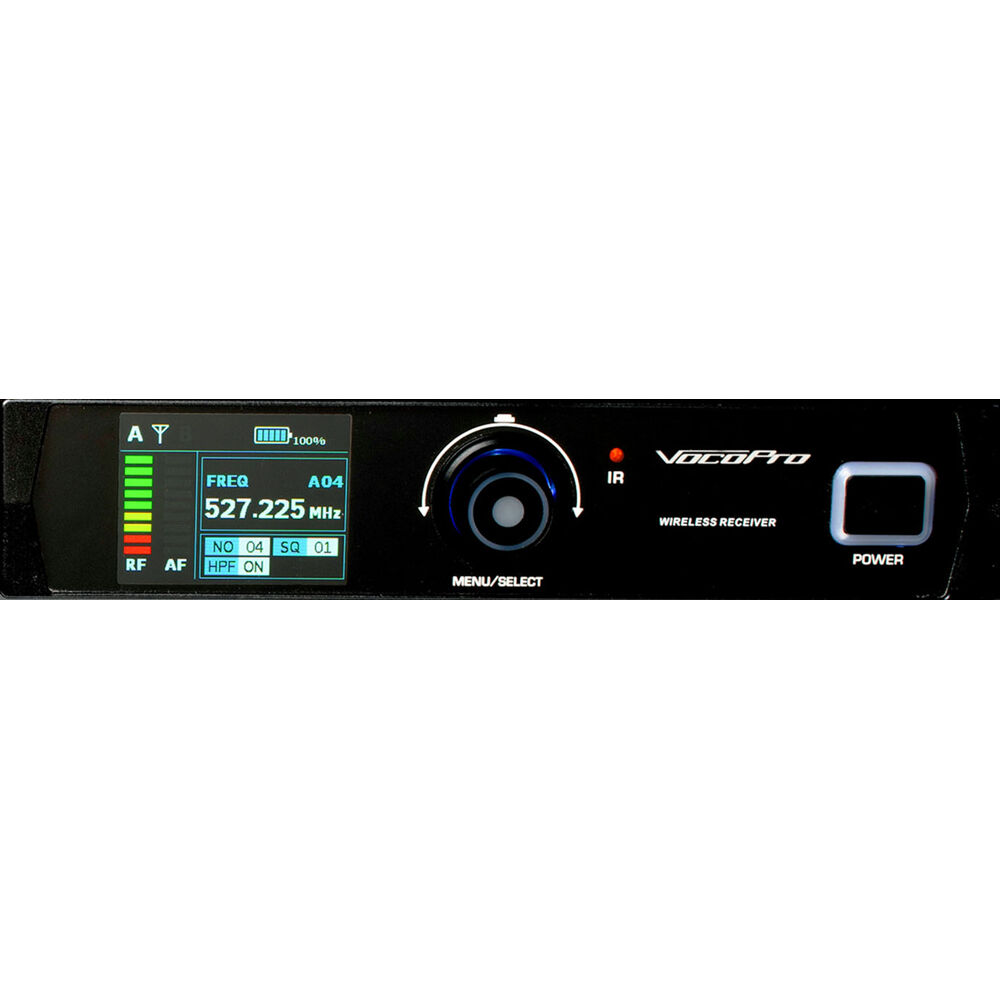

Receiver
| Receiver Type | Receiver 1: Tabletop / Rackmount Receiver 2: Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1RU |
| Antenna | 2 x External, BNC |
| Antenna Bias Voltage | 12 VDC |
| Number of Audio Channels | 2 |
| Audio I/O | 1 x 1/4" TRS Female Unbalanced Output 1 x XLR 3-Pin Balanced Output |
| Audio Output Level | XLR Output: +9 dBu 1/4" Output: +9 dBu (Unbalanced) XLR Output: +9 dBu (Balanced) |
| Signal Processing | High-Pass Filter: |
| Frequency Response | 20 Hz to 18 kHz |
| Network I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Impedance | XLR Output: 240 Ohms (Balanced) 1/4" Output: 810 Ohms (Unbalanced) |
| Approximate RF Sensitivity | -100 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 15 VDC (Included) |
| DC Input Power | 12 to 15 VDC at 1500mA |
| Display & Indicators | 1 x OLED (AF Level, Frequency, High-Pass Filter, RF Level, Transmitter Battery Status) |
Transmitter

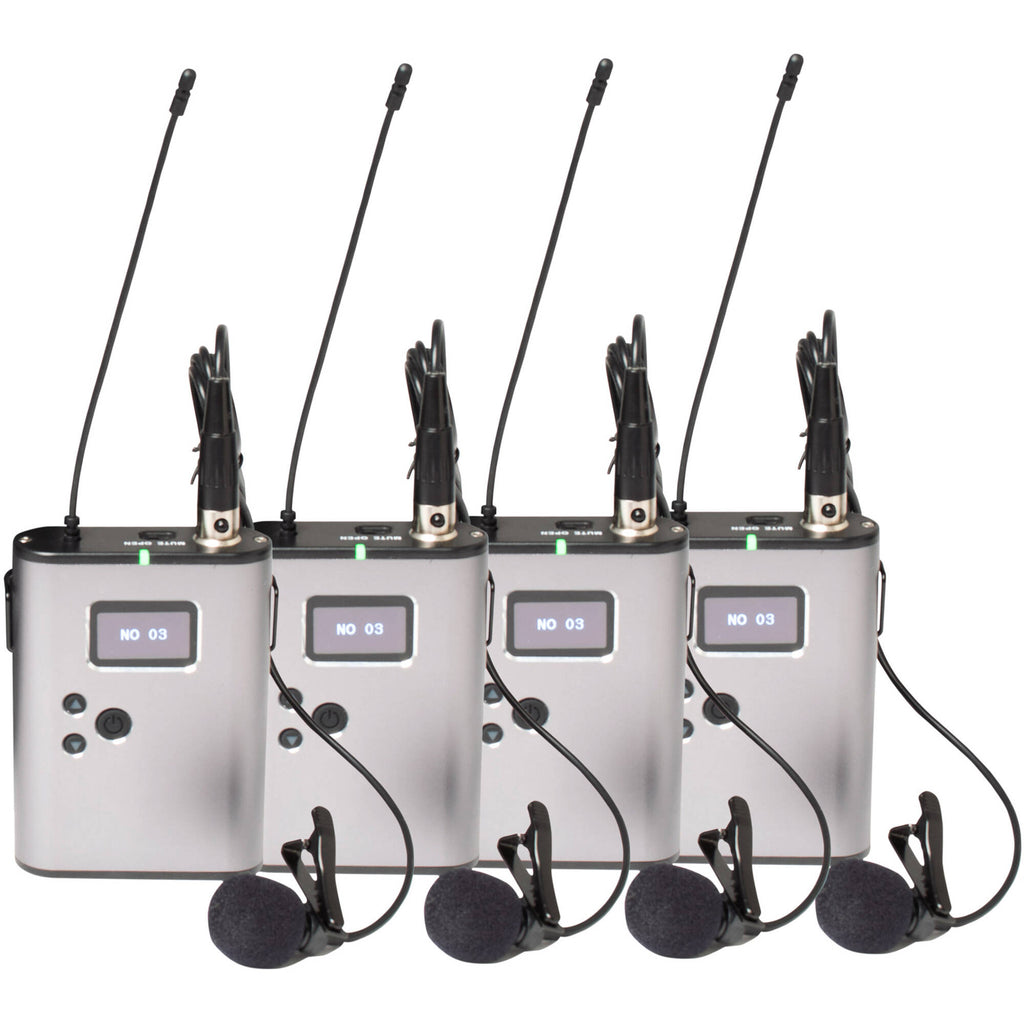

| Transmitter Type | Bodypack |
| RF Output Power | 10 / 30 mW (Switchable) |
| Audio I/O | 1 x TA3/Mini XLR 3-Pin Female Unbalanced Input |
| Muting | Mute Switch |
| Auto-Level Control | No |
| Gain Range | -10 to +10 dB (10 dB Steps) |
| Sync Method | IR |
| Antenna | 1 x Flexible Whip, Fixed |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 8 Hour |
| USB/Lightning Connectivity | None |
| Display & Indicators | 1 x OLED (Battery Status, Channel) |
Microphone
| Microphone Type | Headset |
| Color | Black |
| Sound Field | Mono |
| Capsule | Not Specified by Manufacturer |
| Polar Pattern | Not Specified by Manufacturer |
| Outputs | 1 x TA3/Mini XLR 3-Pin Unbalanced (Lockable) |
Microphone 2
| Microphone Type | Lavalier |
| Color | Black |
| Sound Field | Mono |
| Polar Pattern | Not Specified by Manufacturer |
| Outputs | 1 x TA3/Mini XLR 3-Pin (Lockable) |
Charging Case
| Capacity | Not Specified by Manufacturer |
VocoPro QUAD-BP Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 344166.2 |
| 3-5 | ₹ 340654.3 |
| 5-10 | ₹ 333630.5 |
| 10+ | ₹ 326606.7 |
Bulk discount will be automatically applied during checkout based on quantity.
