Description
Vocas Top Handle Overview

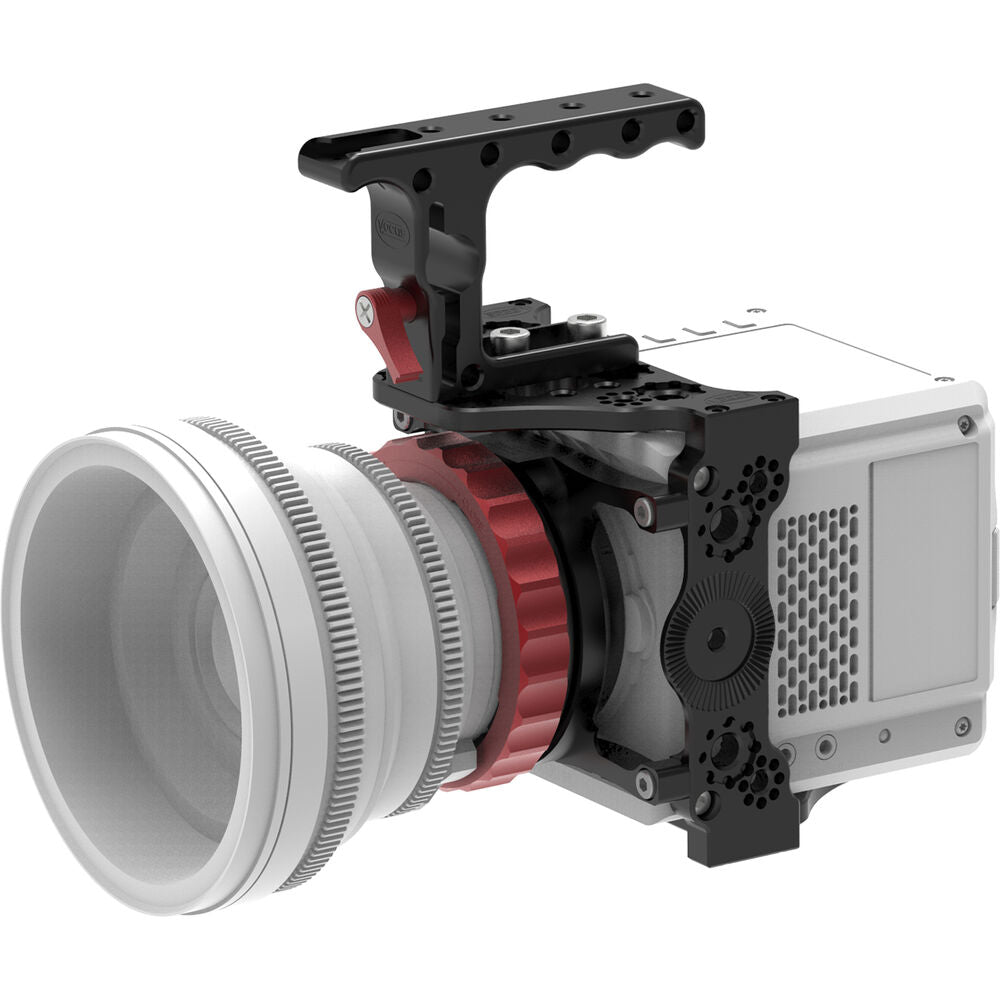

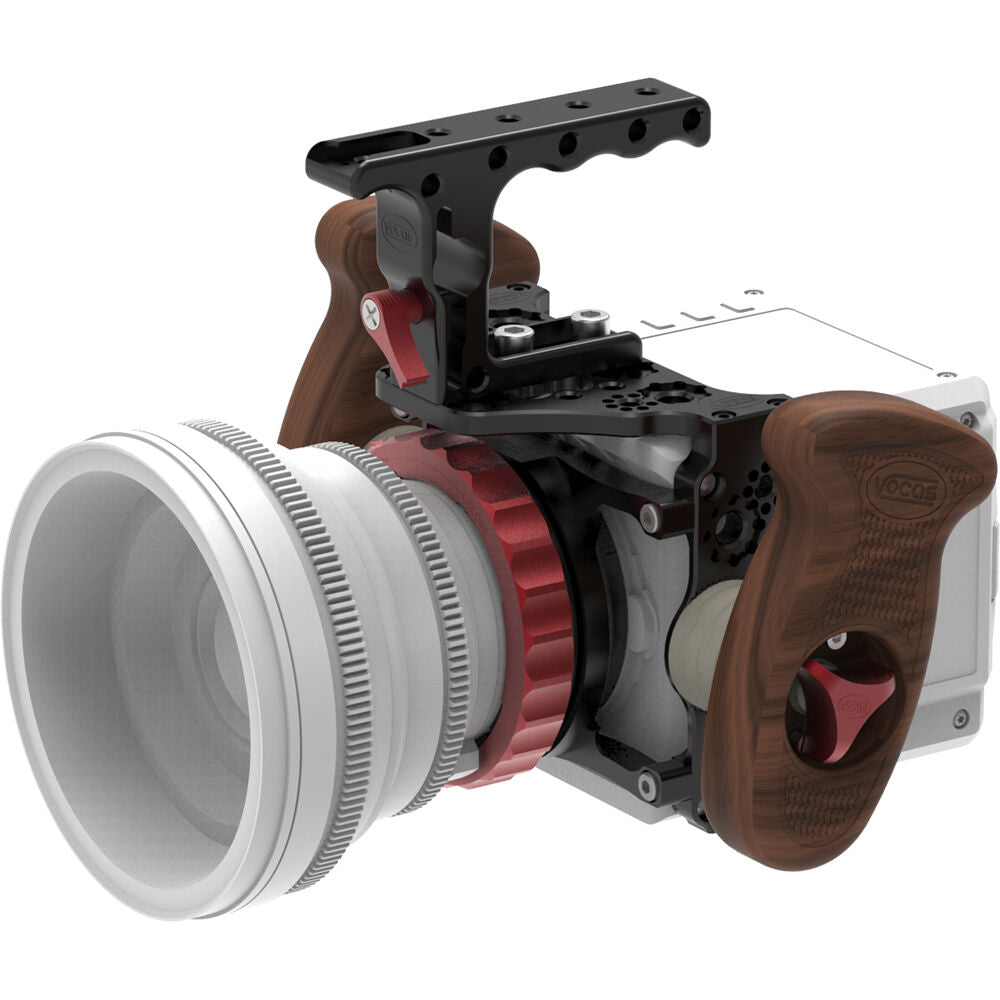

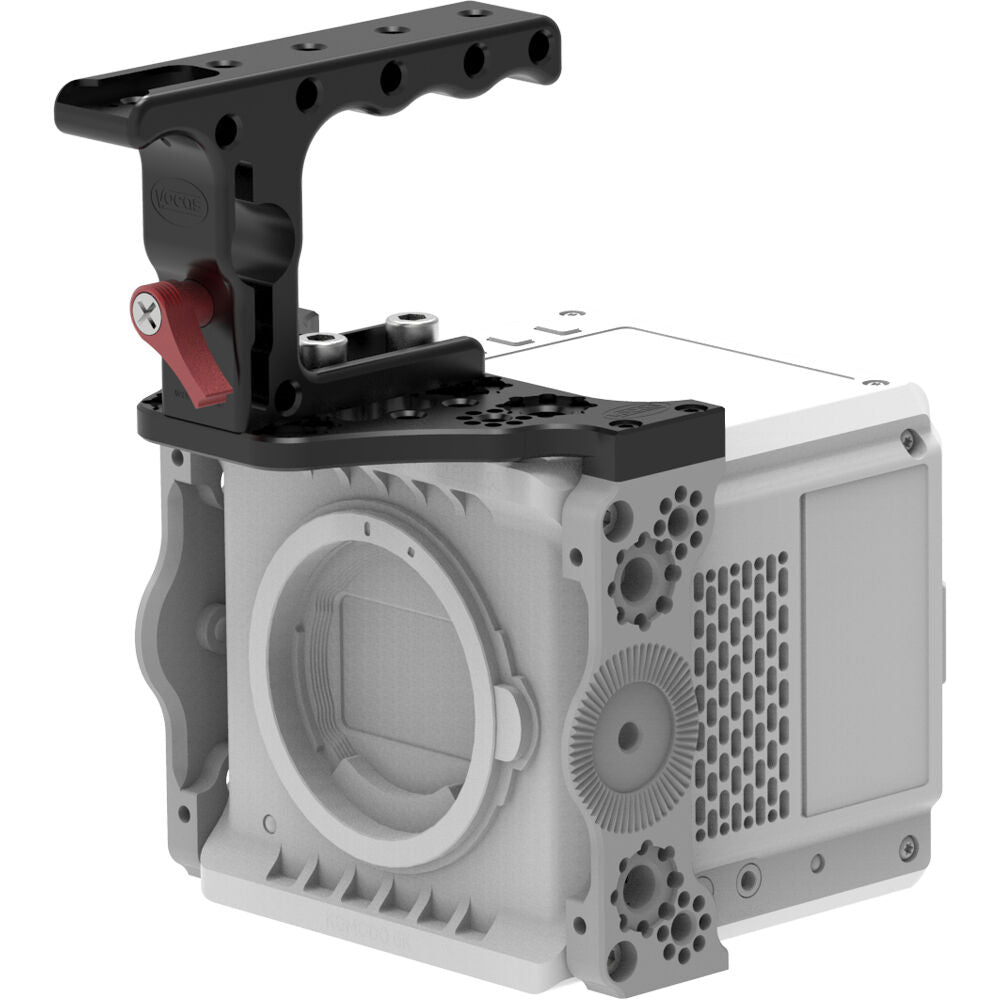

Mount a top handle onto your RED KOMODO 6K camera and add accessory mounting options with this Top Handgrip Kit from Vocas. The kit consists of a top bracket and top handle that mount using included screws onto the top of the separately available side plate kit. The top handgrip kit requires the separately available Vocas side plate kit 0600-0105 to install onto the camera.
The top plate features multiple 1/4"-20 and 3/8"-16 accessory threads with anti-twist divots to mount additional gear. The top handle mounts onto the bracket using two 1/4"-20 screws and features multiple 1/4"-20 accessory threads and a shoe mount on top.
Read more below about the items in this kit.
Vocas Top or Bottom Bracket for RED KOMODO
Add this Top or Bottom Bracket from Vocas to the top or bottom of your RED KOMODO camera to mount optional tripod plates, top handles, extension arms, or 15mm rod mounts. The durable aluminum and stainless steel plate is designed to mount on the top or bottom on the front or rear of the camera without blocking any ports.
The plate requires the separately available Vocas Side Bracket Kit 0600-0105 to be mounted. When it is mounted on the front on top, it doesn't block the LCD. The plate features multiple 1/4"-20 and 3/8"-16 threads with ARRI-style anti-twist divots for additional accessory mounting.
Compatibility
Requires Vocas Side Bracket Kit 0600-0105
Also compatible with but not limited to:
Vocas Top Handgrip Mini 0600-1010
Vocas Side Cage Kit for RED KOMODO 0600-0105
Vocas 3/8"-16 to 15mm "Dogbone" Bracket 0600-0120
Vocas 3/8"-16 to 15mm Bracket 0600-0140
Vocas Top Handgrip Mini
Add portability to your camera rig with this aluminum Top Handgrip Mini from Vocas. The cheese-style top handle attaches to a camera cage or rig using two 1/4"-20 screws that mount up to 1.24" apart in a sliding slot. It features a shoe mount, multiple 1/4"-20 threads, and a 15mm rod port so you can add numerous accessories such as an EVF, monitor, light, or wireless transmitter. It mounts onto cages such as the Vocas C-Cage for the Blackmagic Pocket Cinema Camera 4K.
Compatibility
Cages with two 1/4"-20 threads that are a maximum 1.24" apart
In the Box
- Vocas Top or Bottom Bracket for RED KOMODO
- Limited 2-Year Warranty
- Vocas Top Handgrip Mini
- 2 x 1/4"-20 Screw
- Limited 1-Year Warranty
Vocas Top or Bottom Bracket for RED KOMODO Specs
| Material of Construction | Aluminum, Stainless Steel |
| Mounting Options | Multiple 1/4"-20 and 3/8"-16 Threads with ARRI-Style Anti-Twist Divots |
| Weight | 2.5 oz / 70 g |
Vocas Top Handgrip Mini Specs
| Grip Type | Topside Handle with Cheeseplate-Style Handle |
| Rotation | No |
| Attachment Method | Attaches via 2 x Included 1/4"-20 Screw |
| Rod Standard | 15 mm Single Rod |
| Rod Ports | 1 x 15 mm Rod Port |
| Accessory Mounting | Multiple x 1/4"-20 Thread Multiple x 3/8"-16 Thread |
| Shoe Mounting | 1 x Built-In Cold Shoe Slot |
| Rosettes | None |
| Rail Mounting | None |
| Materials | Aluminum, Steel |
| Dimensions | 4.1 x 2.5 x 0.9" / 10.3 x 6.3 x 2.2 cm |
Vocas Top Handle Reviews
