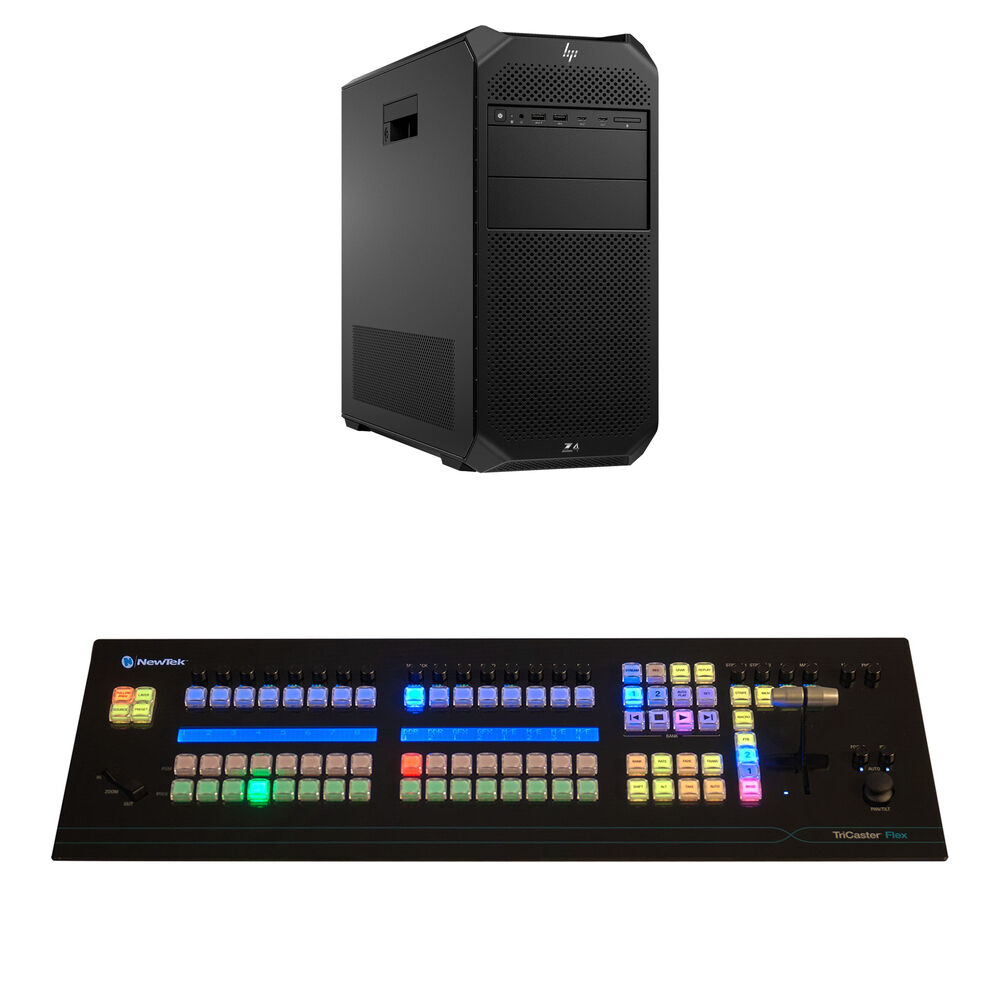

The Vizrt TriCaster Vizion Tower with Flex Control Panel is a Kit that provides an all-in-one switching and streaming solution. The kit bundles a TriCaster Vizion Tower with the Flex control panel designed for TriCaster devices.

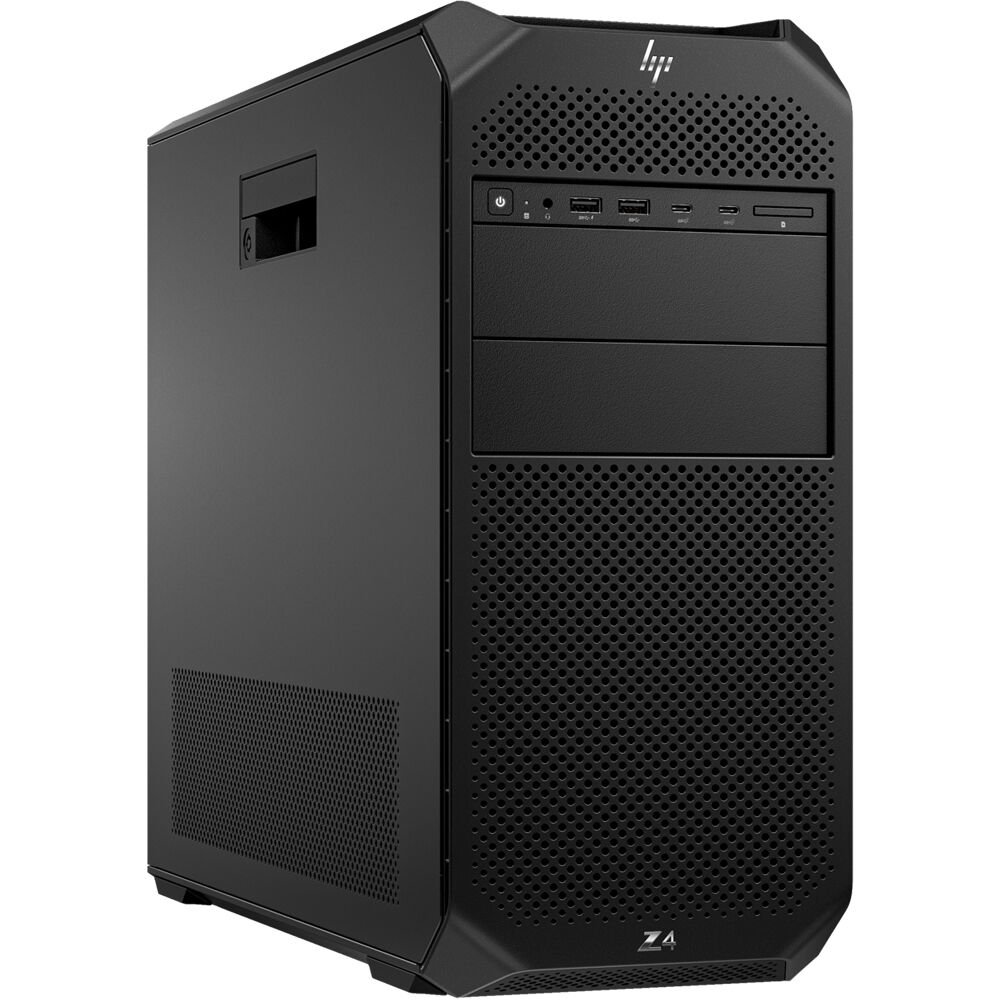

Vizrt TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI I/O (1-Year Standard Support, 3-Year Viz Flowics)
Versatile Video Production
Future proof your video switching and streaming with the
TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI Inputs/Outputs from
Vizrt. The powerful Vizion switcher offers the latest IP workflows, Viz Flowics-powered graphics, and a variety of editing and effects tools. Ideal for live events, sports, and multi-camera broadcasting, this switcher supports up to UHD 4K60 video and up to 2 UHD 4K or 8 HD video mix outputs with a total of 56 HD outputs, including a teleprompter, user interface, and multiview outputs. This tower unit incorporates an SDI card with 16 configurable input/output ports.
Includes Viz Flowics
- Includes three years of cloud native Viz Flowics Basic.
- Viz Flowics includes a 5 GB library.
- Customize your video content with real-time data featuring no-code connectors.
- Generate live, animated HTML5 graphics.
- Use your web browser to control your video playout.
Basic Support
- Includes one-year basic support plan.
- Access Viz University, community forums, knowledge base, and more.
- Normal <24 hours, <8 hours high, and <4 hours critical response times.
AI-Powered Tools
- Future-proof tools like 4 media players, 8 mix effects, LiveMatte, LiveSet, DataLink, and Live Call Connect use AI to help you create engaging content.
- 15 media buffers include five graphic and 10 animation buffers with GIF support.
- Network audio features include native NDI audio and output.
- Dante and AES67 support are available via separate licenses.
12G/3G/HD-SDI Input/Output
- Supports up to 12G-SDI SMPTE ST 2082 video.
- Genlock support for bi-level or trilevel reference signals.
- Embedded SDI audio input and output.
UPC: 196337209695

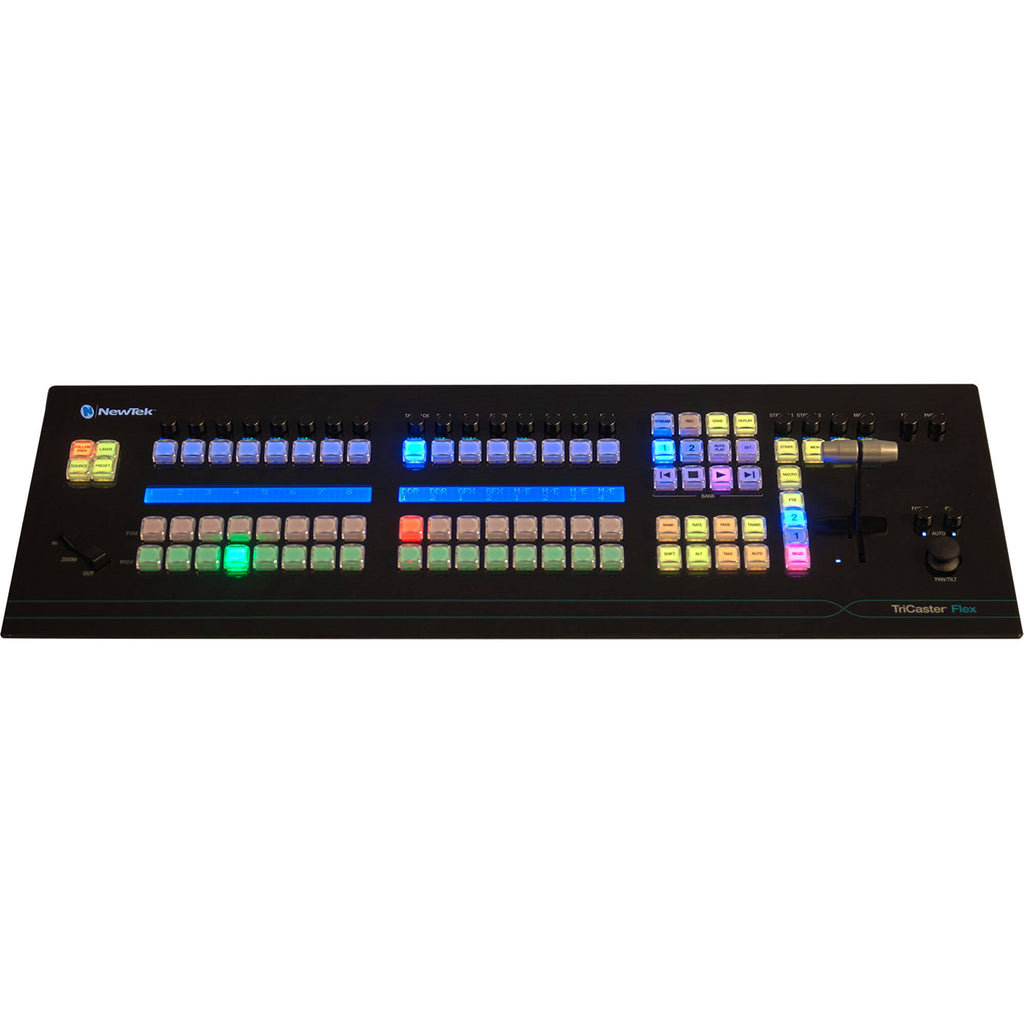

Vizrt Flex Control Panel for TriCaster Devices
Use this NewTek Flex Control Panel in tandem with your preexisting TriCaster system to mix audio and video, control PTZ cameras, expand your audio inputs and outputs, incorporate NDI connectivity, and facilitate talkback communication in your studio space with a single panel. Tactile manual control buttons, a T-bar, and display LCD screens for labelling offer an intuitive control experience.
Two pairs of 1/4" stereo audio inputs and two pairs of 1/4" stereo audio outputs on the back of the panel expand your audio ecosystem. An RJ45 Ethernet port facilitates NDI connection. Talkback and microphone inputs and a headphone output port allow you to communicate between your camera operators and talent.
Features at a Glance
- Intuitive layout mapped to the Video Mix Engine user interface
- IP-based connectivity with support for multi-engine control over the network
- Responsive multi-bus operation with independently assignable control stripes
- Practical lighting, variable T-bar illumination, and dynamic LCD label displays
- Precision controls for expert handing of real-time video operations
Controls
- 16 direct crosspoints with bank and stripe functions
- Row lighting color follows delegated UI
- 2 x 40 character, two row LCD screens
- PTZ control delegation and zoom rocker
- Mini joystick for pan/tilt control, focus/iris control with auto function
- 12 fader controls for audio inputs/outputs, talkback, DDR 1-2, sound, record 1-4
- Four fader controls for stream 1 and 2, aux and master out, mic and headphone level
- Media players and macro control
- Stream, capture, and reply
- Transitions and T-bar
Compatibility
NewTek TriCaster 2 Elite
NewTek TriCaster 1 Pro
NewTek TriCaster TC1
NewTek TriCaster 410 Plus
NewTek TriCaster Mini 4K
NewTek TriCaster Mini X
NewTek TriCaster 1 Pro
NewTek TriCaster TC1
NewTek TriCaster 410 Plus
NewTek TriCaster Mini 4K
NewTek TriCaster Mini X
Items Included
- Vizrt TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI I/O (1-Year Standard Support, 3-Year Viz Flowics)
- 1-Year Basic Support
- 1-Year Basic Support
- Limited 3-Year Manufacturer Warranty
- Vizrt Flex Control Panel for TriCaster Devices
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt Vizion Tower Specs
General
| Compatibility |
NewTek TriCaster 2 Elite / TriCaster 1 Pro / TriCaster TC1 / TriCaster 410 Plus / TriCaster Mini 4K / TriCaster Mini X
|
Inputs/Outputs
| USB I/O |
2 x USB-A 2.0 Female Input
|
| Video I/O |
1x RJ45 Input/Output
|
| Audio I/O |
2x 1/4" Mic Input
1x 1/4" Headphone Output 4x 1/4" Line Input 4x 1/4" Line Input |
Power
| Power Source |
PoE
|
Physical
| Color |
Black
|
| Dimensions |
25 x 9.1 x 3.8" / 63.5 x 23.1 x 9.7 cm
|
Packaging Info
| Package Weight |
14.5 lb
|
| Box Dimensions (LxWxH) |
29.6 x 16 x 8.9"
|
