Description
Vizrt TriCaster Vizion Overview

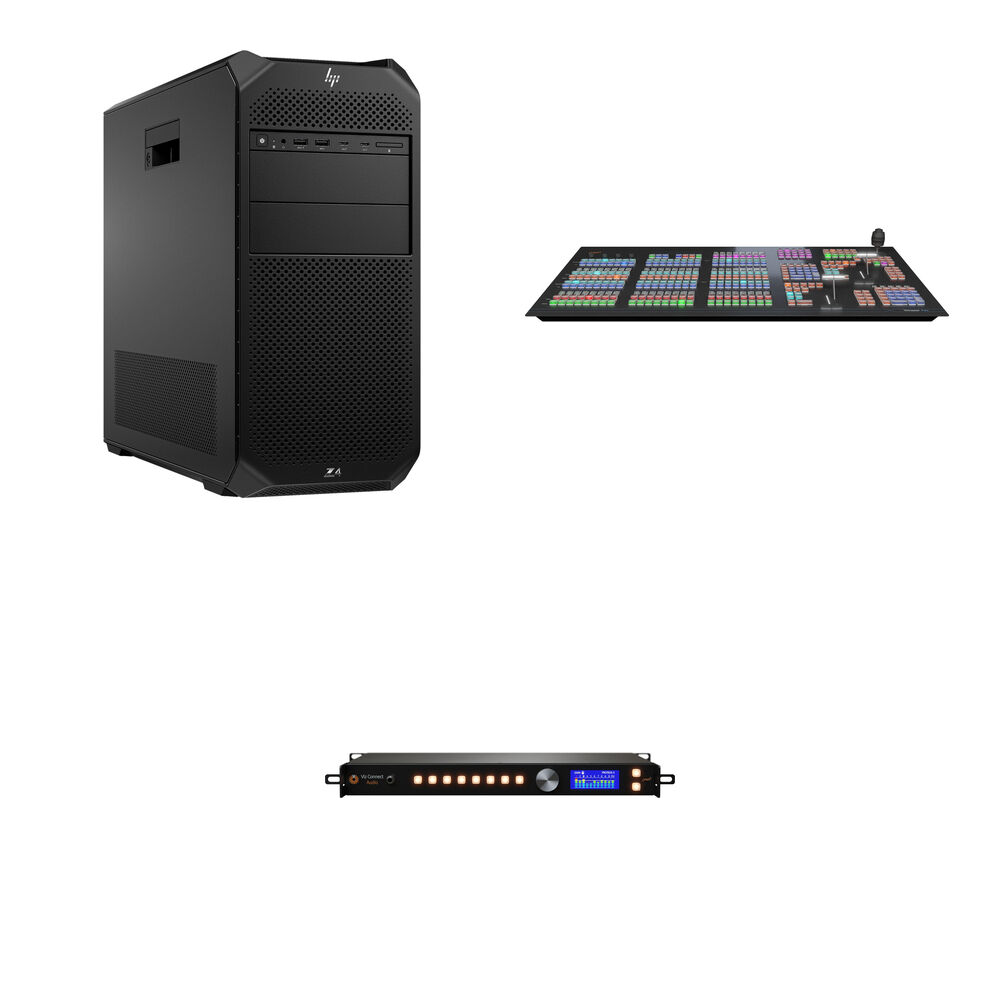

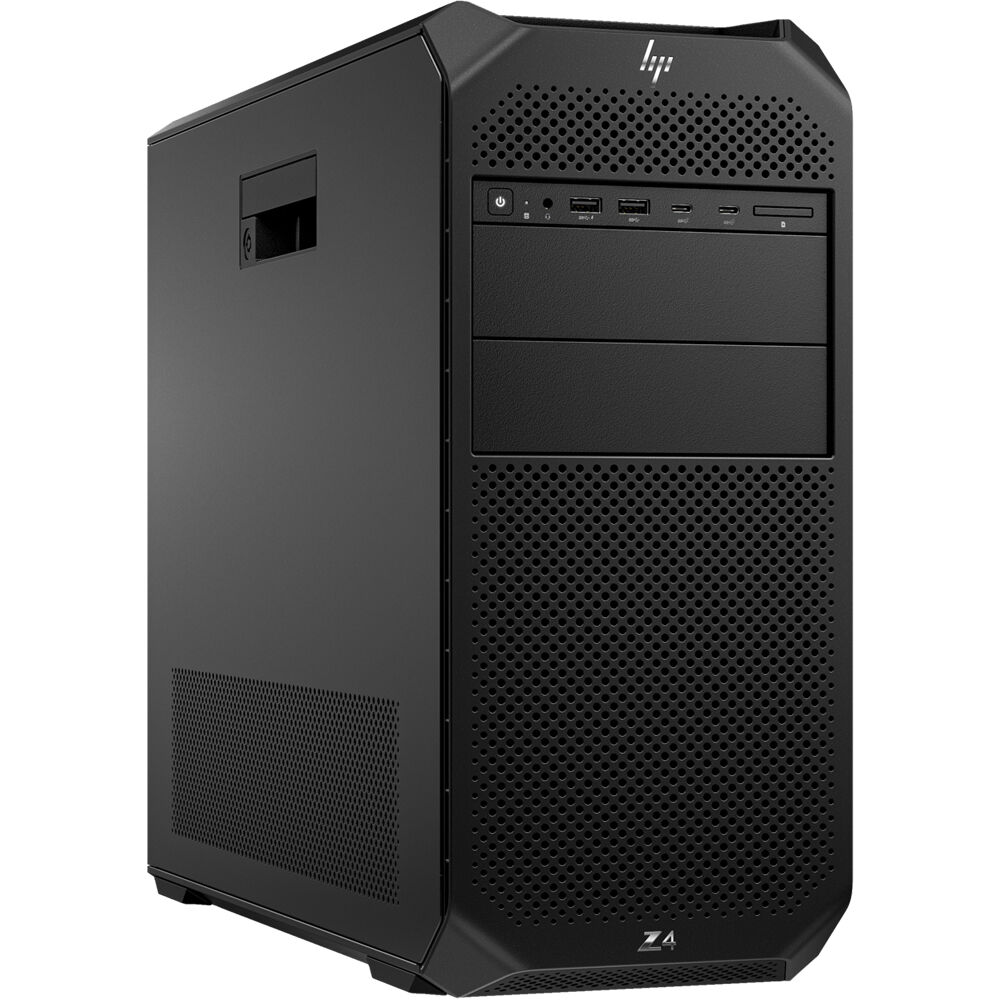

The Vizrt TriCaster Vizion Tower Bundle with Flex Control Panel from equips you with a simultaneous-input NDI switcher in a tower housing, a Flex Control Panel, and a Connect Audio Interface. Facilitate NDI video and audio mixing in broadcast production applications.
- Includes three years of cloud native Viz Flowics Basic.
- Viz Flowics includes a 5 GB library.
- Customize your video content with real-time data featuring no-code connectors.
- Generate live, animated HTML5 graphics.
- Use your web browser to control your video playout.
- Includes one-year basic support plan.
- Access Viz University, community forums, knowledge base, and more.
- Normal <24 hours, <8 hours high, and <4 hours critical response times.
- Future-proof tools like 4 media players, 8 mix effects, LiveMatte, LiveSet, DataLink, and Live Call Connect use AI to help you create engaging content.
- 15 media buffers include five graphic and 10 animation buffers with GIF support.
- Network audio features include native NDI audio and output.
- Dante and AES67 support are available via separate licenses.
- Supports up to 12G-SDI SMPTE ST 2082 video.
- Genlock support for bi-level or trilevel reference signals.
- Embedded SDI audio input and output.

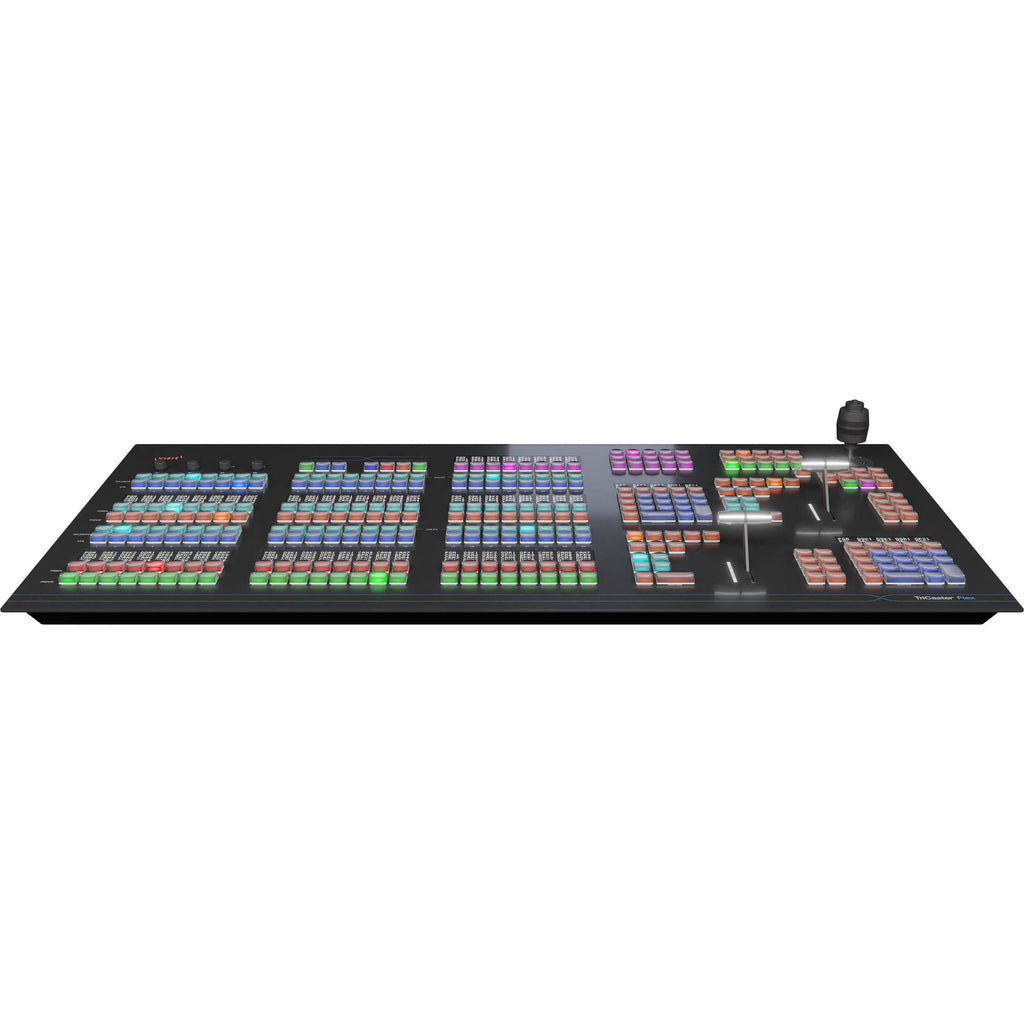

Use this Vizrt TriCaster Flex Dual Control Panel in tandem with your preexisting TriCaster system to mix audio and video, control PTZ cameras, and expand your audio inputs and outputs, and facilitate talkback communication in your studio space with a single panel via NDI connectivity. Tactile manual button controls, dual T-bars, a full-sized joystick, and display LCD screens for labelling offer an intuitive control experience.
Two pairs of 1/4" stereo audio inputs and two pairs of 1/4" audio outputs on the back of the panel expand your audio ecosystem. An RJ45 Ethernet port facilitates NDI connection. Talkback and microphone inputs and a headphone output port allow you to communicate between your camera operators and talent. Two USB-A ports allow connection of peripheral devices.
- 24 direct crosspoints with two fully independent stripes
- Row lighting color follows UI color for delegated bus
- 4 line LCDs for bus and media player status
- 2 line LCDs for 10 key dynamic menu status and operation
- Full-size joystick for positioning and PTZ control
- Audio Control faders for outputs 1 and 2, talkback, and headphone output
- Dynamic 10-key menu system for each stripe
- Media players and macro control
- Stream, capture, and replay
- Transitions and T-bar
Vizrt TriCaster 2 Elite
Vizrt TriCaster Vectar

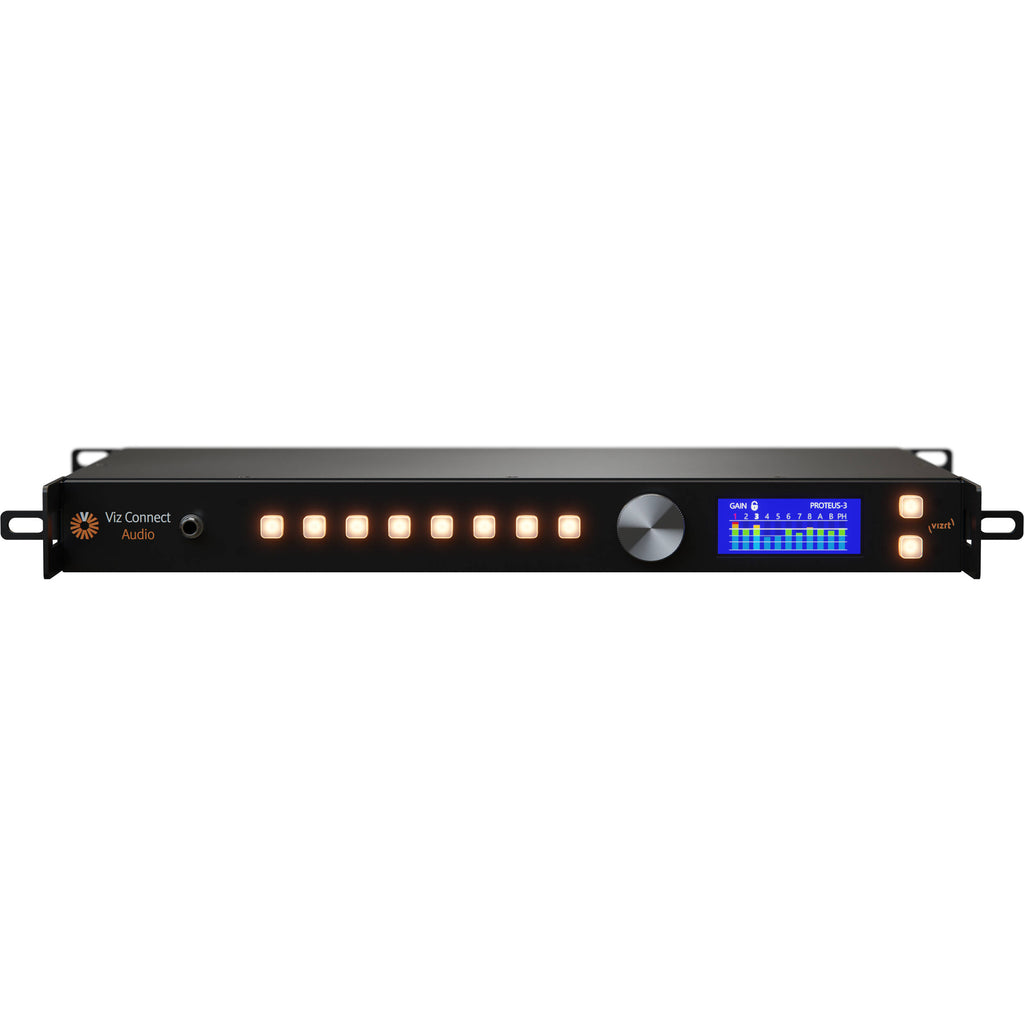

Convert and monitor analog audio signals on your NDI network with the Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring from Vizrt. The Viz Connect Audio features eight XLR-1/4" combo analog mono inputs that allows you to convert to NDI for monitoring and connection on your NDI network.
There are also four XLR outputs to convert or pass through analog audio to speakers or a mixer. You can control and monitor the audio and configure the unit via the built-in web GUI. Other features include phantom power, NDI grouping, solo monitoring, selectable mic/line input, and gain control.
- Eight mono analog inputs via XLR-1/4� combo connectors
- 48 kHz 32-bit floating point NDI conversion
- Gain setting per channel
- Phantom power on/off per channel
- Line/mic setting per channel
- Global SMPTE/EBU setting
- Four mono outputs via XLR
- Headphone jack with solo
- LED indicators for phantom, mic/line, and solo status
- Front-panel and WebUI control
Items Included
- Vizrt TriCaster Vizion Tower with 44 NDI Inputs and 16 SDI I/O (1-Year Standard Support, 3-Year Viz Flowics)
- 1-Year Basic Support
- 1-Year Basic Support
- Limited 3-Year Manufacturer Warranty
- Vizrt TriCaster Flex Dual Control Panel
- Limited 1-Year Manufacturer Warranty
- Vizrt Viz Connect Audio 8x4 Analog/NDI I/O Converter with Control & Monitoring
- Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt TriCaster Flex Dual Control Panel
| Controls |
24x Programmable Key
2x Slider |
| Display |
6x LCD
|
| USB I/O |
2x USB-A 2.0 Female Input
|
| Network I/O |
1x Gigabit Ethernet
|
| Audio I/O |
4x 1/4" Aux/Line Output
4x 1/4" Aux/Line Input 1x 1/4" Mic Input 1x 1/4" Input 1x 1/4" Headphone Output |
| Power Source |
PoE
|
| Dimensions |
36.64 x 18.22 x 3.23" / 93.07 x 46.28 x 8.2 cm
|
| Package Weight |
40.5 lb
|
| Box Dimensions (LxWxH) |
40.5 x 24.25 x 11"
|
